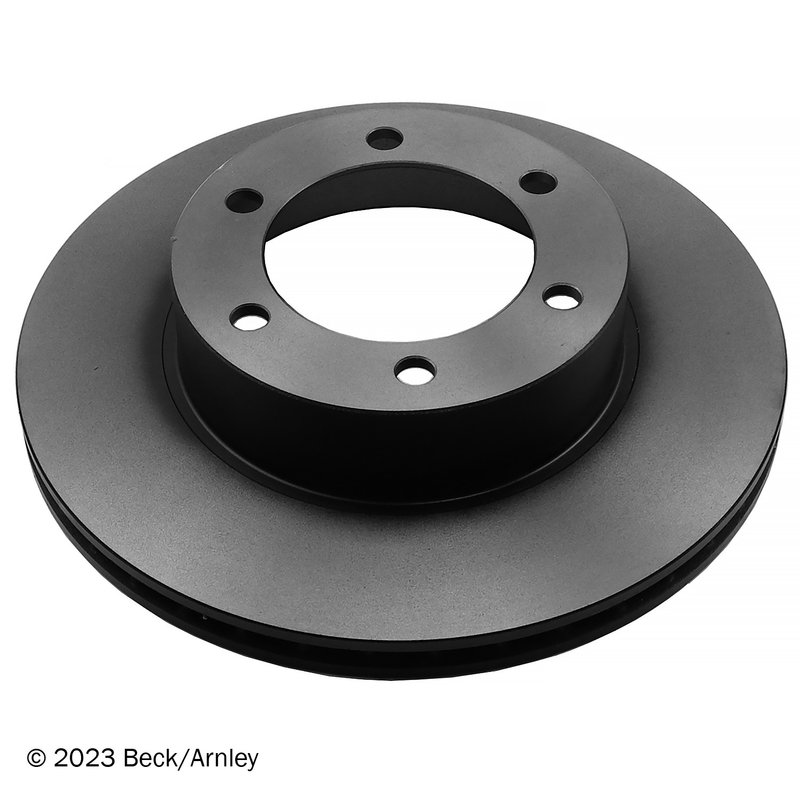

Beck Arnley 083-2693 Disc Brake Rotor - Front

Overview of Beck Arnley Disc Brake Rotor 083-2693

The Beck Arnley 083-2693 disc brake rotor is engineered for Toyota 4Runner and Tacoma models, providing reliable braking performance. This vented rotor is designed to maintain optimal temperature control during heavy braking conditions.

• Vented design for improved heat dissipation
• 6-lug bolt pattern with 139.2 mm spacing
• Rotor outer diameter of 318 mm and thickness of 22 mm
• Rotor center hole diameter of 107.8 mm for precise fitment
• Compatible with Toyota 4Runner and Tacoma vehicles

Detailed Product Specifications

The Beck Arnley 083-2693 disc brake rotor features a vented construction that enhances airflow to reduce heat buildup, which helps prevent brake fade during extended use. It has a 6-lug bolt pattern with a 139.2 mm bolt circle diameter, matching the factory specifications for select Toyota 4Runner and Tacoma models. The rotor measures 318 mm in outer diameter and 22 mm in surface thickness, with a minimum thickness of 20 mm to ensure durability and safety. The rotor hub outer diameter is 182.8 mm, and the rotor height is 70.6 mm, providing a precise fit for the intended vehicles. The lug stud hole inner diameter is 14.4 mm, and the rotor ID is 173 mm, all designed to meet OEM standards.

Compatible Vehicles and Applications

• Replacement rotor for Toyota 4Runner models requiring a 6-lug vented disc brake rotor
• Suitable for Toyota Tacoma vehicles with matching bolt pattern and rotor dimensions
• Ideal for addressing brake rotor wear, warping, or scoring issues
• Used to restore braking performance and maintain vehicle safety
• Effective solution for reducing brake noise and vibration caused by rotor defects

Installation Notes and Tips

When installing the Beck Arnley 083-2693 disc brake rotor, ensure the rotor surface is clean and free of any protective coatings before mounting. Verify the bolt pattern and rotor dimensions match the vehicle specifications to avoid fitment issues. It is recommended to replace brake pads simultaneously to ensure even wear and optimal braking performance. Proper torque specifications should be followed when securing the rotor to the hub assembly.

Quality Assurance and Warranty

Beck Arnley disc brake rotors are manufactured to meet or exceed OEM standards, ensuring consistent quality and performance. The 083-2693 rotor undergoes rigorous testing for durability and heat resistance. While specific warranty details are not provided here, Beck Arnley products typically come with a limited warranty against defects in materials and workmanship.
