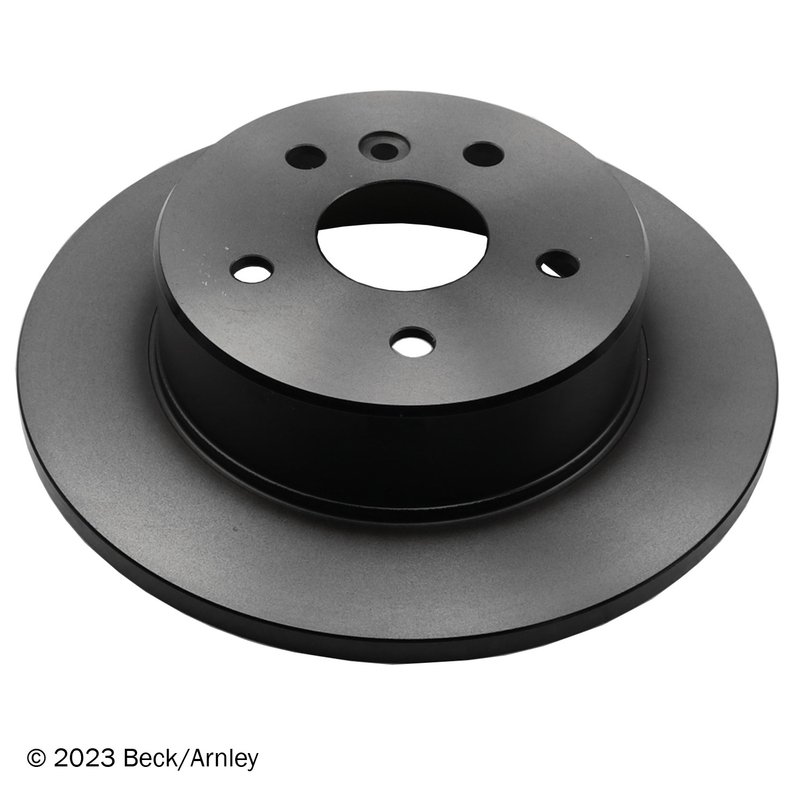

Beck Arnley 083-2870 Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Toyota Avalon

The Beck Arnley 083-2870 disc brake rotor is designed specifically for Toyota Avalon models, providing consistent braking performance and durability. Engineered as a solid rotor with a 5-lug bolt pattern, this part ensures a precise fit and reliable stopping power.

Key Features of Beck Arnley 083-2870 Rotor

• Solid disc brake rotor construction for enhanced strength
• 5-lug bolt pattern with 114 mm spacing for accurate fitment
• Rotor outer diameter of 287.7 mm and thickness of 11.9 mm
• Center hole diameter of 61.9 mm for proper hub alignment
• Minimum rotor thickness of 10.5 mm to maintain safety standards
• Lug stud hole inner diameter of 14.6 mm
• Rotor height of 65.7 mm and hub outer diameter of 179.2 mm
• Non-vented design suitable for specific Toyota Avalon brake systems

Detailed Product Description

This Beck Arnley disc brake rotor (part number 083-2870) is engineered to meet the exact specifications required for Toyota Avalon vehicles. Its solid rotor design offers consistent braking without the complexity of vented rotors, making it suitable for applications where solid rotors are recommended. The 5-lug bolt pattern with a 114 mm bolt circle diameter ensures a secure and precise fit on the vehicle’s hub assembly. With a rotor outer diameter of 287.7 mm and a surface thickness of 11.9 mm, this rotor maintains the necessary dimensions for optimal brake pad contact and heat dissipation. The rotor’s center hole diameter of 61.9 mm and hub outer diameter of 179.2 mm provide proper alignment and stability during operation. The minimum thickness specification of 10.5 mm helps maintain braking safety and performance over the rotor’s service life.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Toyota Avalon models
• Resolves brake pulsation caused by uneven rotor surfaces
• Addresses reduced braking efficiency due to rotor thinning
• Eliminates noise and vibration from damaged or scored rotors
• Restores proper rotor dimensions for safe braking performance

Installation Notes and Tips

Ensure the rotor surface is clean and free of rust or debris before installation. Verify the rotor thickness meets or exceeds the minimum thickness specification of 10.5 mm. Use proper torque specifications for the 5-lug bolts to avoid rotor warping. It is recommended to replace brake pads when installing new rotors to ensure even wear and optimal braking performance. Always follow vehicle manufacturer guidelines during installation.

Quality Assurance and Warranty

Beck Arnley parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The 083-2870 disc brake rotor undergoes strict quality control processes to maintain consistency and safety. Warranty coverage details should be confirmed with the original product documentation or authorized distributors.
