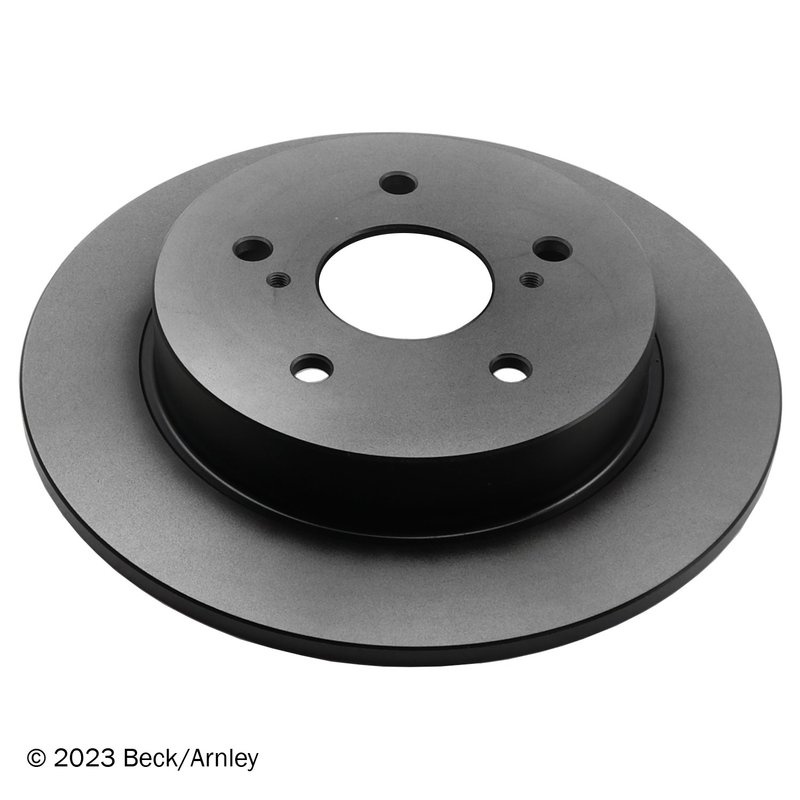

Beck Arnley 083-3021 Disc Brake Rotor - Rear

Overview of Beck Arnley Disc Brake Rotor 083-3021

The Beck Arnley 083-3021 disc brake rotor is designed specifically for Suzuki SX4 models, providing reliable braking performance. This solid rotor features a 5-lug bolt pattern and precise dimensions to ensure proper fit and function.

• Solid disc brake rotor, non-vented design
• 5 lug quantity with 114 mm bolt pattern
• Rotor outer diameter: 278 mm
• Rotor thickness: 9 mm surface thickness, minimum thickness 8 mm
• Rotor center hole diameter: 62 mm
• Lug stud hole inner diameter: 12.7 mm
• Rotor height: 43 mm, hub outer diameter: 180 mm

Detailed Product Description

The Beck Arnley 083-3021 disc brake rotor is a solid, non-vented rotor engineered for the Suzuki SX4. Its 5-lug configuration with a 114 mm bolt pattern matches the vehicle’s specifications, ensuring a secure and accurate fit. The rotor measures 278 mm in outer diameter and maintains a surface thickness of 9 mm, with a minimum thickness of 8 mm to meet safety and performance standards. The rotor’s center hole diameter of 62 mm and lug stud hole inner diameter of 12.7 mm are designed to align precisely with the hub and wheel studs of the Suzuki SX4. With a rotor height of 43 mm and a hub outer diameter of 180 mm, this rotor fits seamlessly into the braking system without modification.

Compatible Vehicles and Applications

• Compatible with Suzuki SX4 models requiring a 5-lug, 114 mm bolt pattern rotor
• Ideal replacement for worn or damaged disc brake rotors on Suzuki SX4
• Suitable for addressing brake pulsation, noise, or reduced braking efficiency
• Used to restore proper braking performance and rotor thickness

Installation Notes and Tips

When installing the Beck Arnley 083-3021 rotor on a Suzuki SX4, ensure the rotor surface is clean and free of any protective coatings before mounting. Verify the rotor thickness meets or exceeds the minimum thickness specification of 8 mm. Proper torque specifications should be followed for lug nuts to maintain safety and performance. It is recommended to inspect brake pads and hardware during installation to ensure overall braking system integrity.

Quality Assurance and Warranty

Beck Arnley disc brake rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The 083-3021 rotor undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty coverage details should be confirmed with the product documentation or manufacturer.
