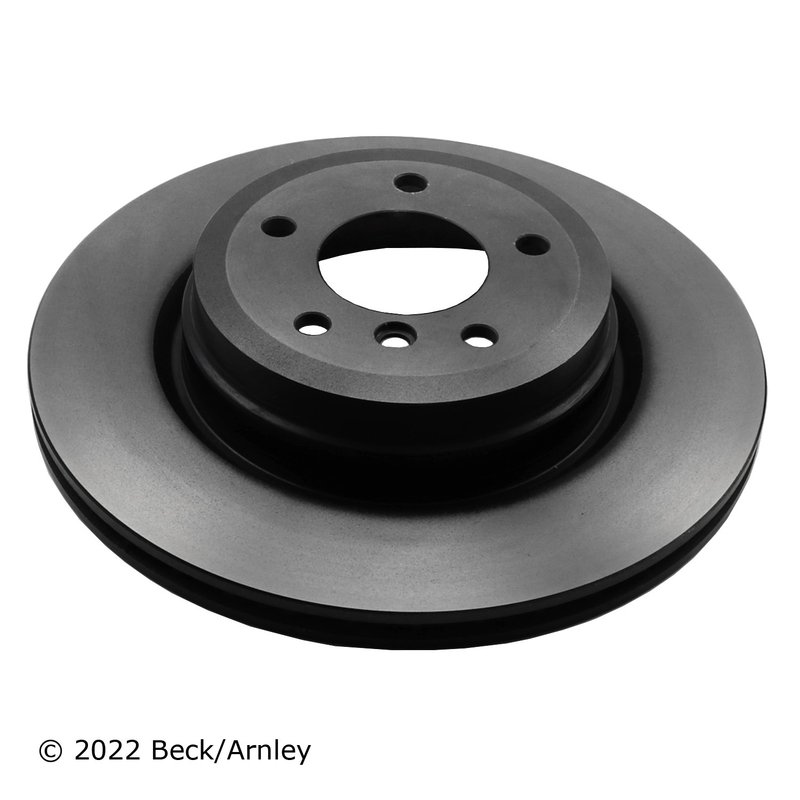

Beck Arnley 083-3081 Disc Brake Rotor - Rear

Overview of Beck Arnley Disc Brake Rotor 083-3081

The Beck Arnley 083-3081 disc brake rotor is engineered for reliable braking performance on select BMW models. Designed with precision, this vented rotor supports effective heat dissipation and consistent stopping power for vehicles like the BMW 330i and 335i xDrive.

• Vented rotor design for improved heat management
• 5-lug bolt pattern with 120 mm spacing
• Rotor outer diameter of 336 mm and thickness of 22 mm
• Center hole diameter of 75 mm for precise fitment
• Compatible with multiple BMW models including 330xi and X1

Technical Specifications and Features

This disc brake rotor features a vented design, which enhances airflow to reduce brake fade during extended use. The rotor has a 5-lug configuration with a bolt pattern of 120 mm, matching the wheel hub specifications of compatible BMW vehicles. The rotor's outer diameter measures 336 mm, with a surface thickness of 22 mm and a minimum thickness of 20.4 mm, ensuring durability and consistent braking performance. The rotor hub outer diameter and inner diameter are both 185 mm, with a rotor height of 67.3 mm. The lug stud hole inner diameter is 14.7 mm, providing a secure fit for lug nuts.

Compatible BMW Models and Applications

This Beck Arnley disc brake rotor 083-3081 is compatible with a range of BMW vehicles, including the 330i, 330xi, 335d, 335i, 335is, 335i xDrive, 335xi, and X1 models. It is designed to meet the specific braking requirements of these vehicles, ensuring proper fitment and reliable performance.

• Replaces worn or warped rotors on BMW 330i and 335i xDrive
• Addresses brake noise and vibration issues
• Improves braking consistency under heavy use
• Restores proper rotor thickness for safe braking
• Supports vented design for heat dissipation in demanding conditions

Installation Notes and Tips

When installing the Beck Arnley 083-3081 rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Verify the bolt pattern and lug stud hole dimensions match your vehicle specifications. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Always torque lug nuts to manufacturer specifications and check rotor thickness to confirm it meets minimum requirements.

Quality Assurance and Warranty

Beck Arnley rotors are manufactured to meet or exceed OEM standards, providing reliable braking performance and durability. The 083-3081 rotor undergoes strict quality control to ensure precision fit and function. Warranty details are provided by Beck Arnley and typically cover defects in materials and workmanship under normal use conditions.
