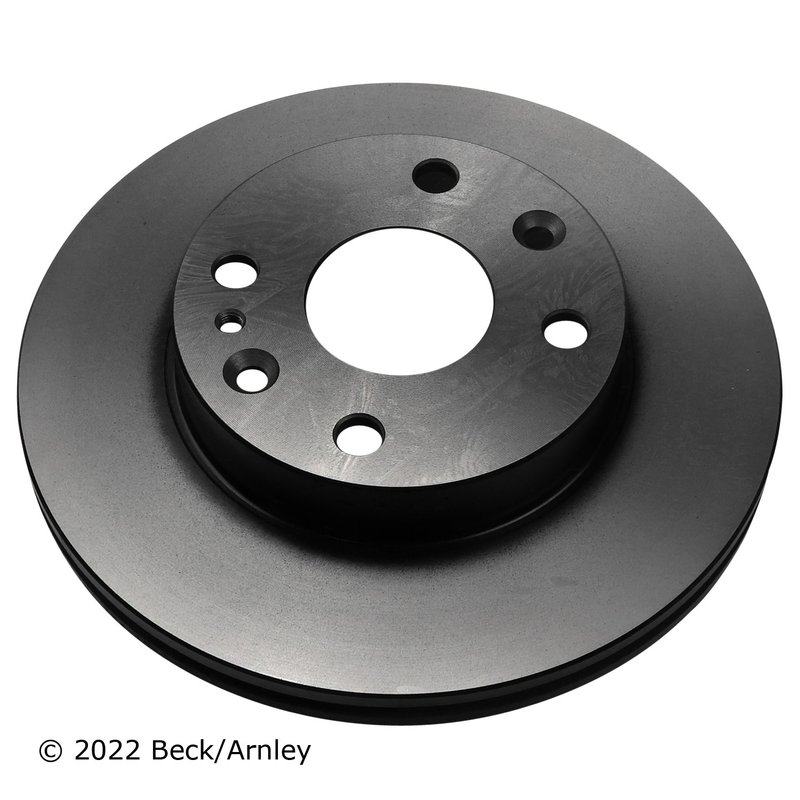

Beck Arnley 083-3086 Disc Brake Rotor - Front

Overview of Beck Arnley Disc Brake Rotor 083-3086

The Beck Arnley 083-3086 disc brake rotor is engineered for Mazda Miata models requiring precise braking performance. This vented rotor is designed to optimize heat dissipation and maintain consistent stopping power under various driving conditions.

• Vented design for improved heat dissipation
• 4-lug bolt pattern with 100 mm spacing
• Rotor outer diameter of 234.6 mm
• Rotor thickness of 17.9 mm with a minimum thickness of 16 mm
• Center hole diameter of 54.8 mm for proper hub fitment
• Compatible with Mazda Miata brake systems

Technical Specifications and Features

This Beck Arnley disc brake rotor features a vented construction, which enhances airflow to reduce brake fade during extended use. The rotor has a 4-lug configuration with a 100 mm bolt pattern, matching the Mazda Miata’s wheel hub specifications. The rotor’s outer diameter measures 234.6 mm, with a surface thickness of 17.9 mm and a minimum thickness of 16 mm to ensure durability and safety. The rotor hub outer diameter is 134.9 mm, and the rotor height is 44.7 mm, providing a precise fit for the vehicle’s braking assembly. The lug stud hole inner diameter is 12.8 mm, accommodating standard lug nuts for secure wheel attachment.

Compatible Vehicles and Applications

This disc brake rotor is specifically compatible with Mazda Miata models that require a 4-lug, 100 mm bolt pattern rotor. It is suitable for drivers seeking to replace worn or damaged rotors to restore braking efficiency and safety.

• Replacement for worn or warped rotors on Mazda Miata
• Addressing brake noise or vibration issues
• Improving heat management during braking
• Restoring proper rotor thickness for safe braking
• Ensuring compatibility with 4-lug, 100 mm bolt pattern wheels

Installation Notes and Tips

When installing the Beck Arnley 083-3086 rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Verify the rotor thickness meets or exceeds the minimum thickness specification of 16 mm to maintain braking performance. Proper torque specifications should be followed for lug nuts to avoid rotor warping. It is recommended to inspect brake pads and replace them if worn to maximize the effectiveness of the new rotor.

Quality Assurance and Warranty

Beck Arnley rotors are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 083-3086 rotor undergoes rigorous quality control to ensure precise fitment and consistent braking. Warranty details are available through Beck Arnley and typically cover defects in materials and workmanship under normal use conditions.
