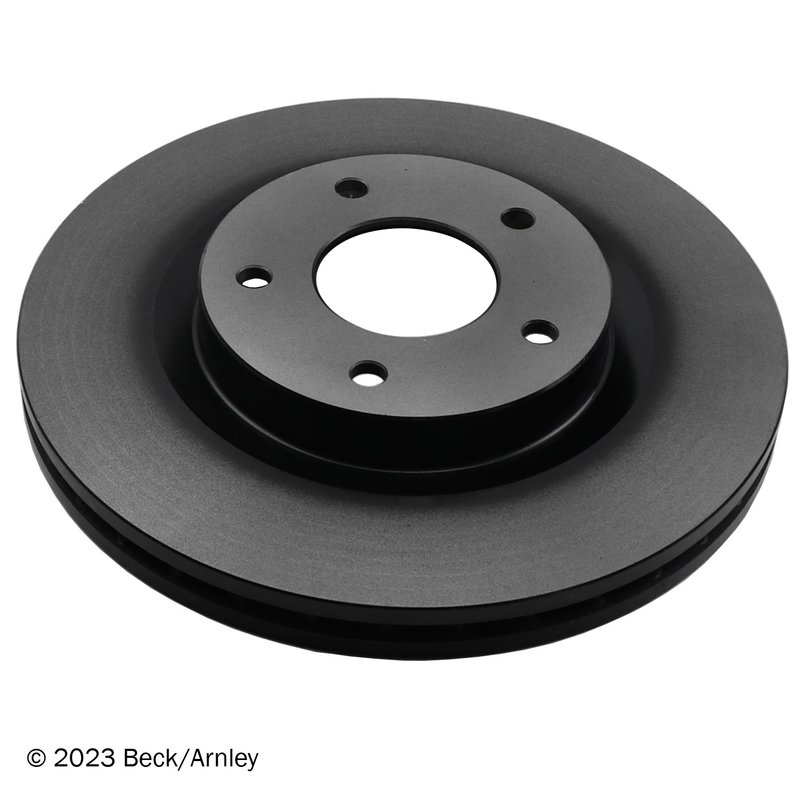

Beck Arnley 083-3167 Disc Brake Rotor - Front

Overview of Beck Arnley Disc Brake Rotor 083-3167

The Beck Arnley 083-3167 disc brake rotor is engineered for reliable braking performance on select Mitsubishi models. Designed as a vented rotor with a 5-lug configuration, it provides effective heat dissipation and consistent stopping power for vehicles like the Mitsubishi Eclipse Cross, Lancer, Outlander, Outlander Sport, and RVR.

• Vented disc brake rotor for improved cooling
• 5-lug bolt pattern with 114.3 mm spacing
• Rotor outer diameter of 294 mm and thickness of 26 mm
• Center hole diameter of 69 mm for precise fitment
• Minimum rotor thickness of 24.4 mm to ensure durability
• Compatible with Mitsubishi Eclipse Cross, Lancer, Outlander, Outlander Sport, and RVR

Technical Specifications and Design Features

This Beck Arnley disc brake rotor (part number 083-3167) features a vented design that enhances airflow between the rotor surfaces, reducing heat buildup during braking. The rotor is not solid but vented, which helps maintain braking efficiency under demanding conditions. It has a lug quantity of 5 with a bolt pattern of 114.3 mm, matching the wheel hub specifications of the compatible Mitsubishi models. The rotor’s outer diameter measures 294 mm, with a surface thickness of 26 mm and a minimum thickness specification of 24.4 mm, ensuring it meets OEM standards for safety and performance. The rotor height is 45.6 mm, and the hub outer diameter is 156 mm, providing a precise fit for the vehicle’s braking system. The lug stud hole inner diameter is 12.7 mm, accommodating the lug nuts securely.

Compatible Mitsubishi Models and Applications

This disc brake rotor is specifically designed for use with the following Mitsubishi vehicles:

• Mitsubishi Eclipse Cross
• Mitsubishi Lancer
• Mitsubishi Outlander
• Mitsubishi Outlander Sport
• Mitsubishi RVR

Using the Beck Arnley 083-3167 rotor ensures compatibility with the factory specifications of these models, maintaining proper brake system function and safety.

Common Issues Addressed by This Rotor

• Brake rotor warping due to heat buildup
• Uneven brake pad wear caused by rotor surface irregularities
• Reduced braking performance from worn or undersized rotors
• Brake noise and vibration linked to rotor defects
• Maintaining OEM fitment and specifications for safe braking

Installation Notes and Tips

When installing the Beck Arnley 083-3167 disc brake rotor, ensure the rotor surface is clean and free of any protective coatings or debris before mounting. Verify the bolt pattern and lug stud hole dimensions match the vehicle’s hub assembly. It is recommended to inspect brake pads and replace them if worn to optimize braking performance. Proper torque specifications should be followed when tightening lug nuts to avoid rotor distortion.

Quality Assurance and Warranty Information

Beck Arnley rotors are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 083-3167 rotor undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details are not provided here, Beck Arnley products typically come with a limited warranty against defects in materials and workmanship. Consult the product documentation or manufacturer for exact warranty terms.
