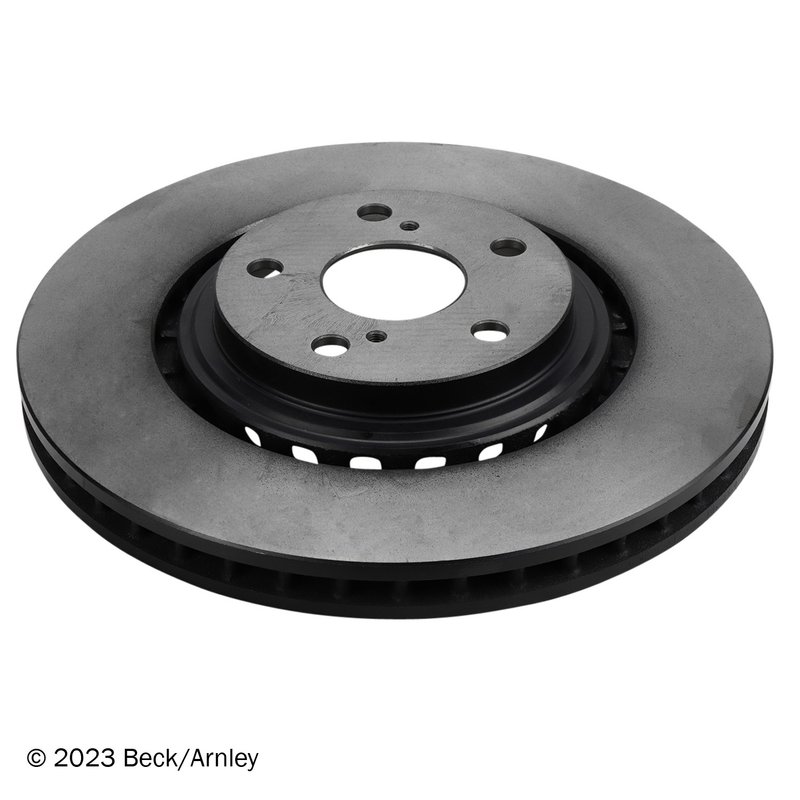

Beck Arnley 083-3311 Disc Brake Rotor - Front

Overview of Beck Arnley Disc Brake Rotor 083-3311

The Beck Arnley 083-3311 disc brake rotor is engineered for reliable braking performance on select Lexus and Toyota models. Designed as a vented rotor with a 5-lug configuration, it provides effective heat dissipation and consistent stopping power for vehicles like the Toyota Highlander and Lexus RX350.

• Vented disc brake rotor for improved cooling
• 5-lug bolt pattern with 114.3 mm spacing
• Rotor outer diameter of 328 mm and thickness of 28 mm
• Center hole diameter of 62 mm for precise fitment
• Compatible with Lexus and Toyota models including Highlander, NX200t, NX300, RX350, and Sienna

Detailed Specifications and Features

This Beck Arnley disc brake rotor (part number 083-3311) features a vented design that enhances airflow to reduce heat buildup during braking. The rotor measures 328 mm in outer diameter with a surface thickness of 28 mm, ensuring durability and consistent contact with brake pads. It has a rotor height of 49 mm and a hub outer diameter of 157 mm, designed to fit precisely on vehicles with a 5-lug bolt pattern spaced at 114.3 mm. The lug stud hole inner diameter is 14.5 mm, and the rotor center hole diameter is 62 mm, matching OEM specifications for proper alignment and fitment. This rotor is not solid but vented, which helps maintain braking efficiency under demanding conditions.

Compatible Vehicles and Applications

• Designed for Lexus NX200t, NX300, and RX350 models
• Compatible with Toyota Highlander and Sienna vehicles
• Suitable for both hybrid and conventional powertrains such as RX450h and NX300h
• Ideal replacement for worn or warped rotors causing brake pulsation or noise
• Addresses issues like reduced braking performance and rotor thickness below minimum specifications

Installation Notes and Tips

When installing the Beck Arnley 083-3311 rotor, ensure the vehicle is securely lifted and the wheel hub is clean and free of debris. Verify the bolt pattern and rotor dimensions match your vehicle’s specifications. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Check rotor minimum thickness of 25 mm before installation to confirm suitability. Proper torque on lug nuts and bolts is essential to avoid rotor warping or uneven wear.

Quality Assurance and Warranty

Beck Arnley rotors are manufactured to meet or exceed OEM standards, providing reliable performance and durability. This disc brake rotor undergoes rigorous quality control to ensure precise fitment and consistent braking. Warranty details are available through Beck Arnley and typically cover defects in materials and workmanship under normal use conditions.
