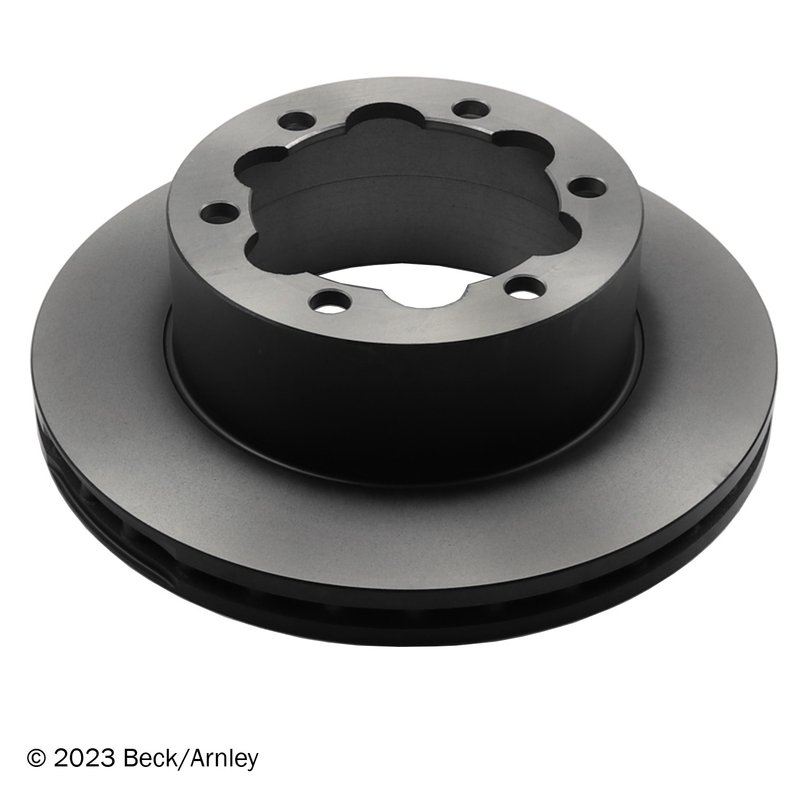

Beck Arnley 083-3413 Disc Brake Rotor - Rear

Reliable Disc Brake Rotor for Dodge and Mercedes-Benz Sprinter 3500

The Beck Arnley 083-3413 disc brake rotor is engineered for precise fitment on Dodge and Mercedes-Benz Sprinter 3500 and Sprinter 3500XD models. Designed with vented construction and a 6-lug bolt pattern, this rotor ensures consistent braking performance under demanding conditions.

• Vented disc brake rotor for improved heat dissipation
• 6-lug bolt pattern with 145 mm spacing
• Rotor outer diameter of 303 mm and height of 93 mm
• Rotor center hole diameter of 120 mm for exact hub fit
• Minimum rotor thickness of 25 mm for durability
• Compatible with Dodge and Mercedes-Benz Sprinter 3500 and 3500XD

Technical Specifications and Design Features

This Beck Arnley disc brake rotor (part number 083-3413) features a vented design that enhances cooling efficiency, reducing the risk of brake fade during extended use. The rotor is not solid but vented, allowing air to flow between the rotor surfaces. It has a 6-lug configuration with a bolt pattern measuring 145 mm, suitable for the specified Sprinter models. The rotor's outer diameter is 303 mm, with a surface thickness of 28 mm and a minimum thickness of 25 mm, ensuring structural integrity and long service life. The rotor hub outer diameter is 186 mm, and the rotor ID is 172 mm, providing a precise fit for the vehicle's hub assembly. The lug stud hole inner diameter is 15 mm, matching the vehicle's lug studs for secure mounting.

Applications and Problem Solving

• Replacement for worn or warped rotors on Dodge and Mercedes-Benz Sprinter 3500 and 3500XD
• Addresses brake noise and vibration issues caused by uneven rotor surfaces
• Improves braking performance by restoring proper rotor thickness and surface condition
• Helps prevent brake fade through vented rotor design for better heat dissipation
• Ensures safe and reliable stopping power for heavy-duty Sprinter applications

Installation Notes and Tips

When installing the Beck Arnley 083-3413 rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Verify the rotor thickness meets or exceeds the minimum thickness specification of 25 mm. Use the correct torque specifications for the 6-lug bolts to avoid warping. It is recommended to inspect brake pads and replace them if worn to maintain optimal braking performance. Proper alignment with the hub center hole diameter of 120 mm is essential for secure fitment.

Quality Assurance and Warranty

Beck Arnley manufactures this disc brake rotor to meet or exceed OEM standards for fit, form, and function. The 083-3413 rotor undergoes rigorous quality control to ensure durability and consistent performance. While specific warranty details are not provided here, Beck Arnley products typically come with a limited warranty against defects in materials and workmanship. Consult the product documentation or manufacturer for exact warranty terms.
