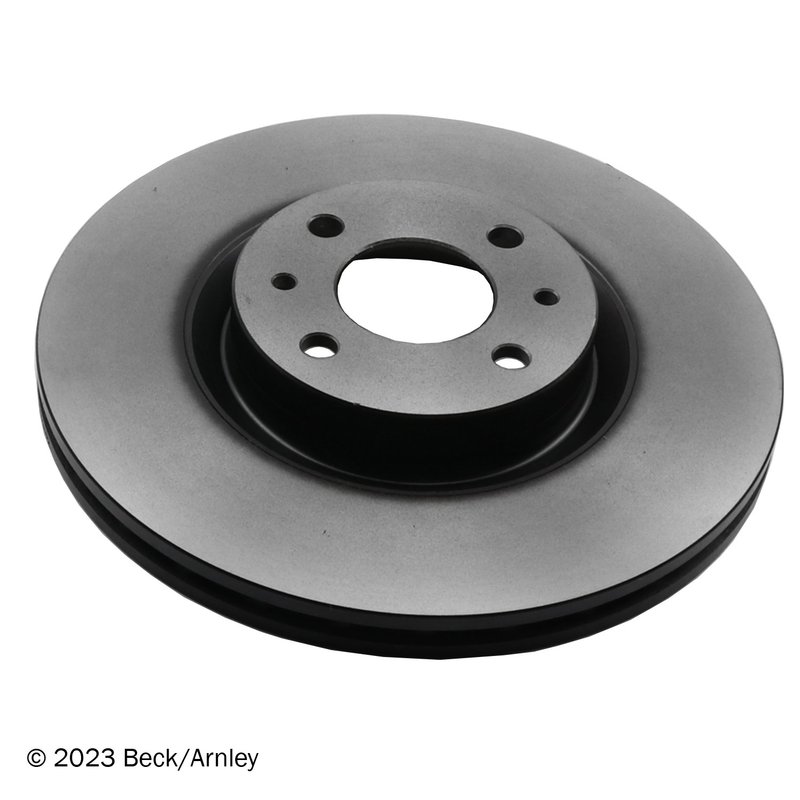

Beck Arnley 083-3552 Disc Brake Rotor - Front

Overview of Beck Arnley Disc Brake Rotor 083-3552

The Beck Arnley 083-3552 disc brake rotor is engineered for reliable braking performance on Fiat 500 models. Designed with precision, this vented rotor supports effective heat dissipation and consistent stopping power under various driving conditions.

• Vented design for improved heat dissipation
• 4-lug bolt pattern with 98 mm spacing
• Rotor outer diameter of 283.6 mm
• Rotor thickness of 22 mm with minimum thickness of 20.2 mm
• Center hole diameter of 59 mm for proper hub fitment
• Compatible with Fiat 500 vehicles

Detailed Product Description

The Beck Arnley 083-3552 disc brake rotor features a vented construction that enhances airflow to reduce heat buildup during braking. This helps maintain braking efficiency and reduces the risk of rotor warping. The rotor is designed with a 4-lug bolt pattern measuring 98 mm, matching the Fiat 500 specifications. Its overall diameter is 283.6 mm, with a rotor height of 43 mm and a hub outer diameter of 137 mm, ensuring a precise fit. The rotor surface thickness is 22 mm, with a minimum thickness specification of 20.2 mm to maintain safety and performance standards. The lug stud hole inner diameter is 13 mm, accommodating the vehicle’s lug nuts securely.

Compatible Vehicles and Applications

• Replacement rotor for Fiat 500 models requiring a 4-lug, 98 mm bolt pattern rotor
• Ideal for addressing brake noise or vibration issues related to worn or warped rotors
• Suitable for restoring braking performance after rotor wear or damage
• Used when rotors have reached minimum thickness and require replacement

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the bolt pattern and rotor dimensions match the vehicle specifications. It is recommended to replace brake pads simultaneously to ensure optimal braking performance. Proper torque specifications should be followed when securing the rotor to avoid warping or uneven wear.

Quality Assurance and Warranty

Beck Arnley disc brake rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The 083-3552 rotor undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty details should be confirmed with the product documentation or supplier.
