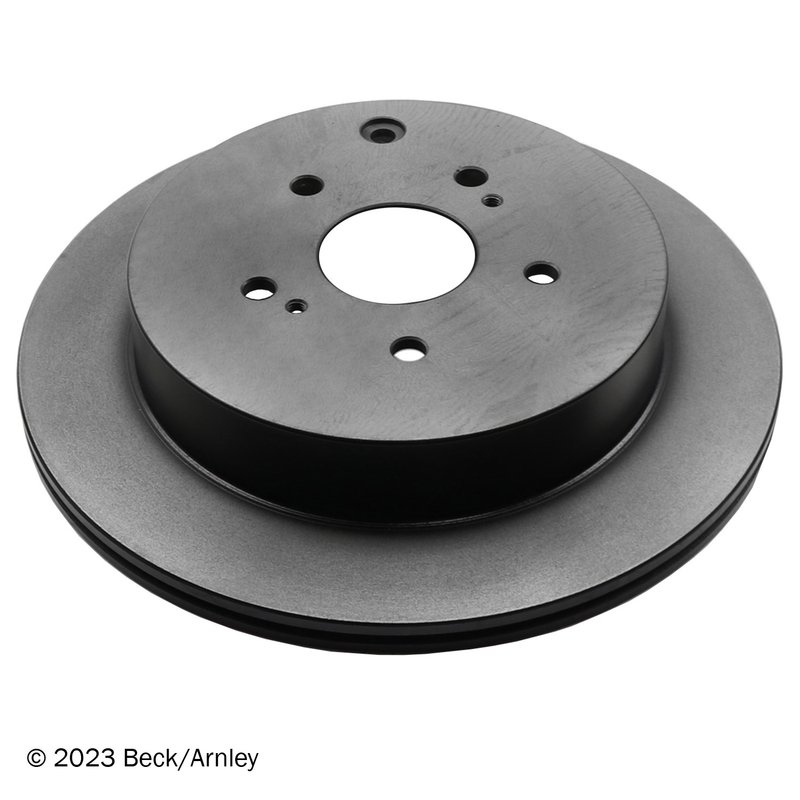

Beck Arnley 083-3558 Disc Brake Rotor - Rear

Overview of Beck Arnley Disc Brake Rotor 083-3558

The Beck Arnley 083-3558 disc brake rotor is engineered for Suzuki Grand Vitara models requiring precise braking performance. This vented rotor is designed to optimize heat dissipation and maintain consistent stopping power under various driving conditions.

• Vented design for improved heat dissipation
• 5 lug quantity with 114 mm bolt pattern
• Rotor outer diameter of 308 mm and thickness of 16 mm
• Rotor center hole diameter of 62 mm for accurate fitment
• Minimum rotor thickness of 14 mm to ensure safety and durability
• Compatible with Suzuki Grand Vitara vehicles

Detailed Product Description

The Beck Arnley 083-3558 disc brake rotor features a vented construction that enhances airflow between the rotor surfaces, reducing heat buildup during braking. This helps prevent brake fade and extends rotor life. With a 5-lug configuration and a 114 mm bolt pattern, this rotor is specifically designed to fit Suzuki Grand Vitara models. The rotor measures 308 mm in outer diameter and 16 mm in surface thickness, providing a robust braking surface. The rotor hub outer diameter is 212 mm, and the center hole diameter is 62 mm, ensuring precise alignment and fitment. The rotor height is 57 mm, and the lug stud hole inner diameter is 12.6 mm, matching factory specifications for reliable installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading from solid to vented rotors for better heat management
• Addressing brake noise due to uneven rotor surfaces
• Restoring braking performance on Suzuki Grand Vitara vehicles
• Ensuring rotor thickness meets safety standards to prevent brake failure

Installation Notes and Tips

When installing the Beck Arnley 083-3558 rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Verify the bolt pattern and lug stud hole dimensions match your Suzuki Grand Vitara specifications. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Proper torque specifications should be followed when securing the rotor to avoid warping.

Quality Assurance and Warranty

Beck Arnley disc brake rotors are manufactured to meet or exceed OEM standards, ensuring reliable fit and function. The 083-3558 rotor undergoes rigorous quality control to maintain consistent performance. While specific warranty details are not provided here, Beck Arnley products typically come with a limited warranty against defects in materials and workmanship.
