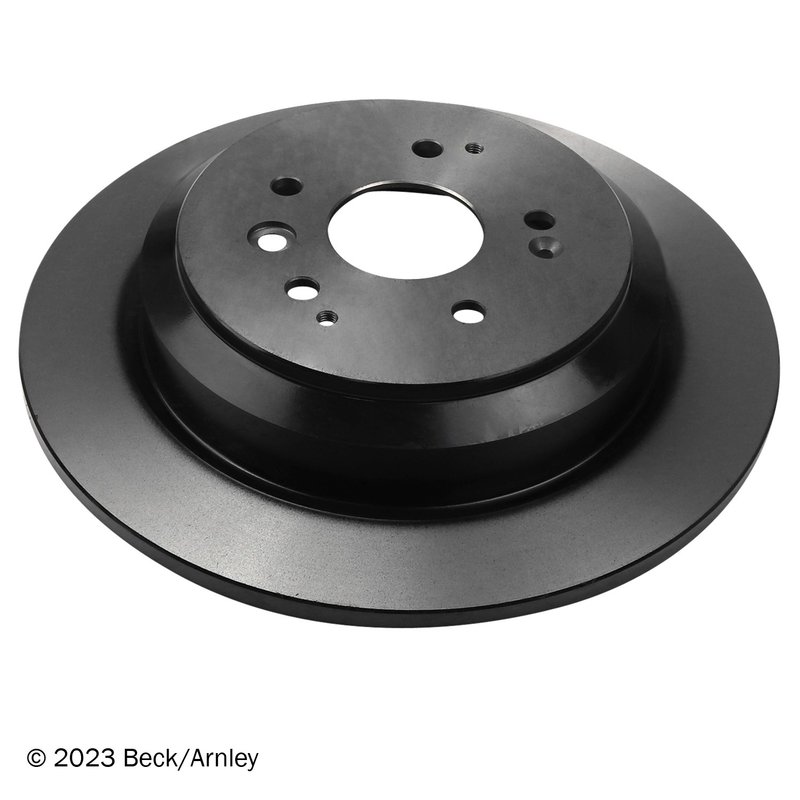

Beck Arnley 083-3595 Disc Brake Rotor - Rear

Overview of Beck Arnley Disc Brake Rotor 083-3595

The Beck Arnley 083-3595 disc brake rotor is designed specifically for Acura MDX models, providing reliable braking performance. This solid rotor features a 5-lug bolt pattern and precise dimensions to ensure proper fit and function.

• Solid disc brake rotor, non-vented design
• 5 lug quantity with 114.3 mm bolt pattern
• Rotor outer diameter: 330 mm
• Rotor thickness: 11 mm surface thickness, minimum thickness 9 mm
• Center hole diameter: 64 mm for accurate hub fitment
• Rotor height: 59 mm and hub outer diameter: 190 mm
• Lug stud hole inner diameter: 12.7 mm

Detailed Product Description

This Beck Arnley disc brake rotor 083-3595 is engineered as a solid, non-vented rotor suitable for Acura MDX vehicles requiring a 5-lug wheel configuration with a 114.3 mm bolt pattern. The rotor's 330 mm outer diameter and 11 mm surface thickness provide a stable braking surface, while the minimum thickness of 9 mm ensures safety and longevity. The 64 mm center hole diameter and 190 mm hub outer diameter are designed for precise hub alignment, reducing vibration and promoting even wear. The 12.7 mm lug stud hole diameter accommodates standard lug nuts for secure wheel attachment.

Compatible Vehicles and Applications

• Compatible with Acura MDX models requiring a 5-lug, 114.3 mm bolt pattern rotor
• Ideal for replacing worn or damaged front or rear disc brake rotors
• Suitable for addressing issues such as brake pulsation, noise, or reduced stopping power
• Used in routine brake system maintenance and rotor resurfacing replacement

Installation Notes and Tips

When installing the Beck Arnley 083-3595 rotor, ensure the rotor surface is clean and free of any protective coatings before mounting. Verify the rotor thickness meets or exceeds the minimum thickness specification of 9 mm to maintain braking safety. Proper torque specifications should be followed for lug nuts to avoid rotor warping. It is recommended to inspect brake pads and hardware during rotor replacement for optimal braking performance.

Quality Assurance and Warranty

Beck Arnley disc brake rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The 083-3595 rotor undergoes rigorous quality control to ensure durability and consistent braking performance. While specific warranty details are not provided here, Beck Arnley products typically include a limited warranty against defects in materials and workmanship.
