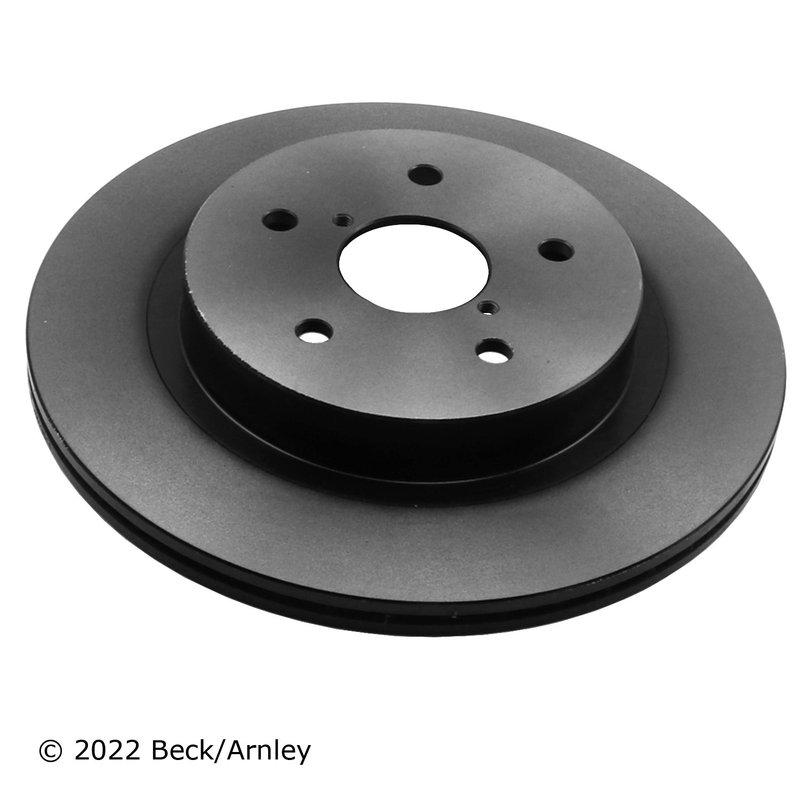

Beck Arnley 083-3612 Disc Brake Rotor - Rear

Overview of Beck Arnley Disc Brake Rotor 083-3612

The Beck Arnley 083-3612 disc brake rotor is engineered for reliable braking performance on select Subaru models. Designed as a vented rotor with a 5-lug configuration, it provides effective heat dissipation and consistent stopping power for vehicles like the Subaru Forester, Legacy, Outback, and WRX.

• Vented disc brake rotor for improved cooling
• 5-lug bolt pattern with 114.3 mm spacing
• Rotor outer diameter of 300 mm and thickness of 17 mm
• Center hole diameter of 58 mm for precise fitment
• Minimum rotor thickness of 15 mm to ensure safety and durability

Detailed Product Specifications

This Beck Arnley disc brake rotor 083-3612 features a vented design that enhances airflow to reduce heat buildup during braking. The rotor measures 300 mm in outer diameter and 46 mm in height, with a rotor hub outer diameter of 178 mm. It is designed with a 5-lug bolt pattern spaced at 114.3 mm, compatible with lug stud hole inner diameters of 13 mm. The rotor ID is 165 mm, and the rotor surface thickness is 17 mm, with a minimum thickness specification of 15 mm to maintain braking efficiency and safety. This rotor is not solid but vented, which helps maintain optimal brake performance under demanding conditions.

Compatible Subaru Models

This disc brake rotor is compatible with the following Subaru vehicles:

• Subaru Forester
• Subaru Legacy
• Subaru Outback
• Subaru WRX

Common Issues Addressed by This Rotor

• Brake fade caused by excessive heat buildup
• Uneven rotor wear leading to vibration or noise
• Reduced braking performance due to rotor warping
• Corrosion or surface damage affecting rotor integrity
• Incompatibility with factory lug pattern and rotor dimensions

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the bolt pattern and rotor dimensions match your vehicle specifications. It is recommended to replace brake pads when installing new rotors to maintain optimal braking performance. Use proper torque specifications for lug nuts to avoid rotor damage or uneven wear.

Quality Assurance and Warranty

Beck Arnley disc brake rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The 083-3612 rotor undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty details should be confirmed with the product documentation or supplier.
