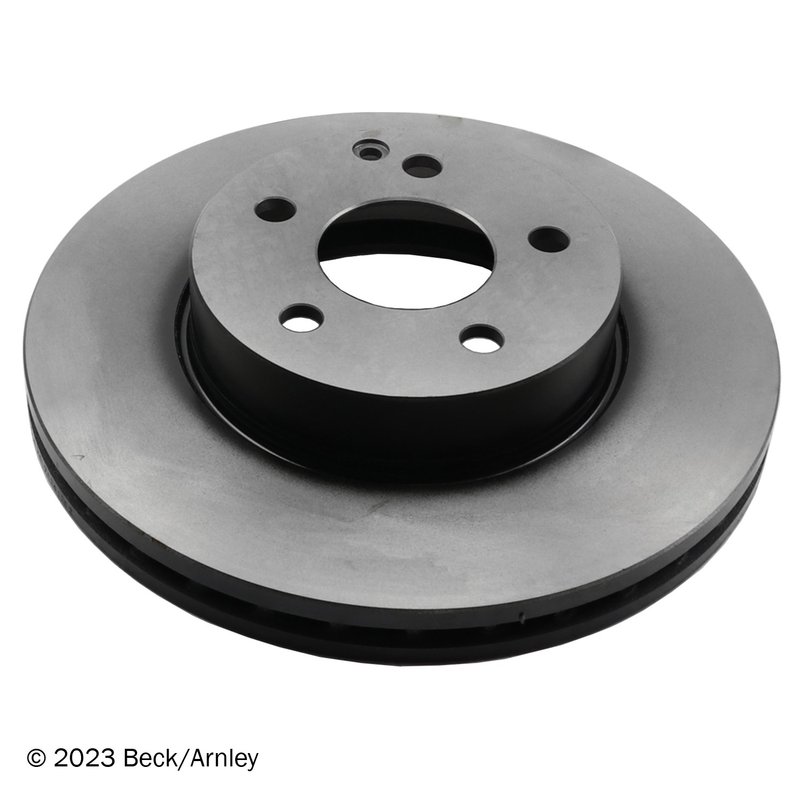

Beck Arnley 083-3642 Disc Brake Rotor - Front

Overview of Beck Arnley Disc Brake Rotor 083-3642

The Beck Arnley 083-3642 disc brake rotor is engineered for reliable braking performance on select Mercedes-Benz models. Designed with precision, this vented rotor supports effective heat dissipation and consistent stopping power for vehicles like the C230, C250, C300, and SLK250.

• Vented disc brake rotor for improved cooling
• 5-lug bolt pattern with 112 mm spacing
• Rotor outer diameter of 295 mm and thickness of 28 mm
• Center hole diameter of 67 mm for proper hub fitment
• Minimum rotor thickness of 25.4 mm to ensure safety and longevity

Detailed Product Description

This Beck Arnley disc brake rotor 083-3642 features a vented design that enhances airflow between rotor surfaces, reducing heat buildup during braking. The rotor is specifically designed with a 5-lug bolt pattern measuring 112 mm, matching the wheel hub specifications of compatible Mercedes-Benz models. With a rotor outer diameter of 295 mm and a surface thickness of 28 mm, it provides a solid braking surface that meets OEM standards. The rotor hub outer diameter is 164 mm, and the rotor height is 64.5 mm, ensuring proper alignment and fitment. The lug stud hole inner diameter is 15.3 mm, accommodating standard lug nuts for secure wheel attachment.

Compatible Vehicles and Applications

This disc brake rotor is compatible with the following Mercedes-Benz models:

• Mercedes-Benz C230
• Mercedes-Benz C250
• Mercedes-Benz C300
• Mercedes-Benz SLK250

It is designed to replace worn or damaged rotors, restoring braking efficiency and safety for these specific vehicles.

Common Issues Addressed by This Rotor

• Brake pulsation caused by warped rotors
• Reduced braking performance due to rotor wear
• Overheating and brake fade from insufficient rotor ventilation
• Uneven brake pad wear linked to rotor surface irregularities
• Noise and vibration during braking from damaged rotors

Installation Notes and Tips

When installing the Beck Arnley 083-3642 rotor, ensure the rotor surface is clean and free of debris before mounting. Verify the bolt pattern and lug stud hole dimensions match your vehicle’s specifications. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Proper torque specifications should be followed when tightening lug nuts to avoid rotor distortion.

Quality Assurance and Warranty

Beck Arnley rotors are manufactured to meet or exceed OEM standards, providing reliable performance and durability. This rotor undergoes strict quality control processes to ensure dimensional accuracy and material integrity. Warranty coverage details should be confirmed with the product documentation or manufacturer.
