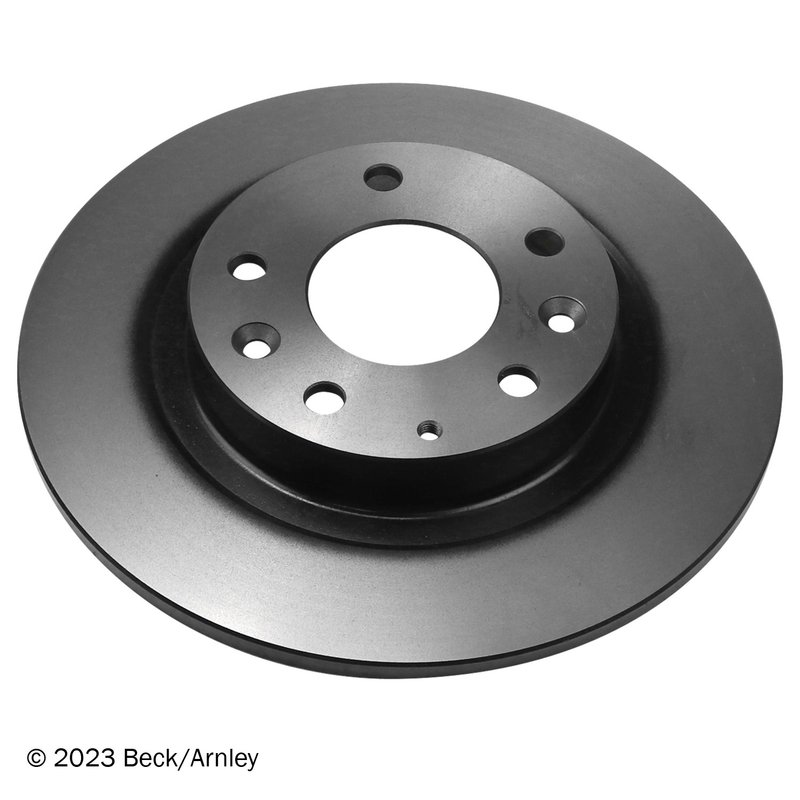

Beck Arnley 083-3662 Disc Brake Rotor - Rear

Overview of Beck Arnley Disc Brake Rotor 083-3662

The Beck Arnley 083-3662 disc brake rotor is designed specifically for Mazda CX-3 models, providing reliable braking performance. This solid rotor features a 5-lug bolt pattern and precise dimensions to ensure proper fit and function.

• Solid disc brake rotor, not vented
• 5 lug quantity with 114 mm bolt pattern
• Rotor outer diameter: 281 mm
• Rotor thickness: 9.5 mm surface thickness, minimum thickness 7.5 mm
• Rotor center hole diameter: 68 mm
• Rotor height: 36 mm
• Lug stud hole inner diameter: 13 mm
• Rotor hub outer diameter: 154 mm
• Rotor inner diameter: 142 mm

Detailed Product Description

This Beck Arnley disc brake rotor 083-3662 is engineered as a solid rotor, meaning it is not vented, which suits specific braking system requirements on the Mazda CX-3. The rotor’s 5-lug configuration with a 114 mm bolt pattern matches the wheel hub specifications for a secure fit. With a rotor outer diameter of 281 mm and a surface thickness of 9.5 mm, it meets the necessary dimensions for effective braking and heat dissipation within its solid design. The rotor center hole diameter of 68 mm and lug stud hole inner diameter of 13 mm ensure compatibility with the vehicle’s hub and lug studs. The rotor height of 36 mm and hub outer diameter of 154 mm are designed to maintain proper alignment and clearance within the braking assembly.

Compatible Vehicles and Applications

• Compatible with Mazda CX-3 models requiring a 5-lug, 114 mm bolt pattern rotor
• Suitable for replacement of worn or damaged solid disc brake rotors
• Ideal for addressing issues such as brake noise, vibration, or reduced stopping power
• Used when rotor thickness falls below the minimum 7.5 mm specification

Installation Notes and Tips

When installing the Beck Arnley 083-3662 rotor, ensure the vehicle is securely lifted and the wheel is removed. Clean the hub surface to remove rust or debris before mounting the rotor to prevent misalignment. Verify the rotor thickness meets or exceeds the minimum 7.5 mm specification to maintain braking performance. Torque lug nuts to manufacturer specifications to avoid rotor warping. It is recommended to inspect brake pads and replace them if worn to ensure optimal braking efficiency.

Quality Assurance and Warranty

Beck Arnley parts are manufactured to meet or exceed OEM standards, ensuring reliable fit and function. While specific warranty details for part number 083-3662 are not provided here, Beck Arnley typically offers limited warranties covering defects in materials and workmanship. For detailed warranty information, consult Beck Arnley documentation or authorized distributors.
