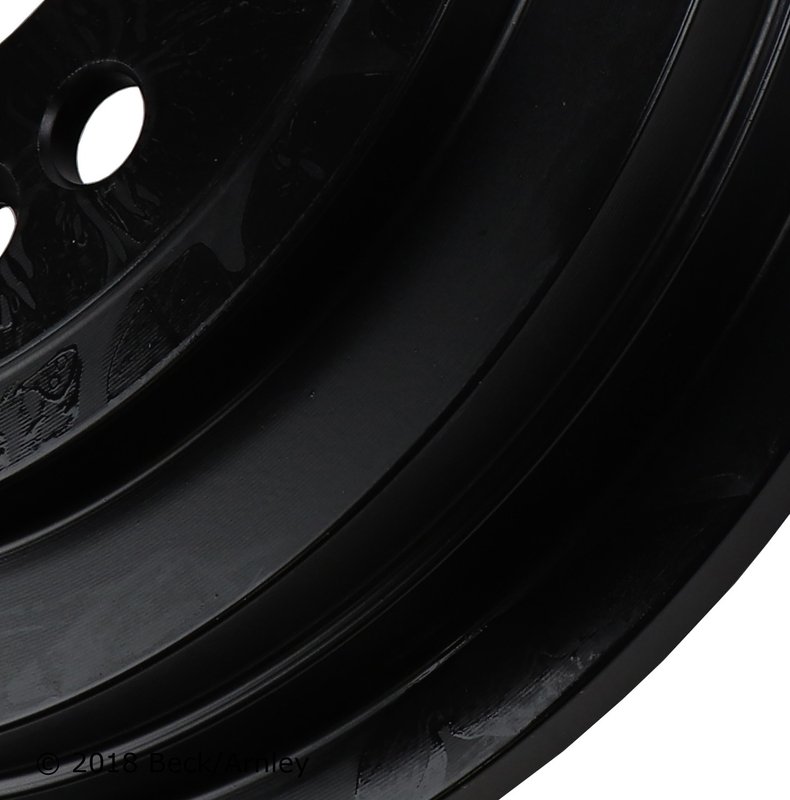

Beck Arnley 083-3696 Brake Drum - Rear

Overview of Beck Arnley Brake Drum 083-3696

The Beck Arnley 083-3696 brake drum is engineered for reliable braking performance on Hyundai Elantra and Venue models. Designed with precise dimensions and a 5-lug configuration, this brake drum ensures proper fitment and consistent operation.

• Compatible with Hyundai Elantra and Venue
• 5 lug quantity with 114 mm bolt pattern
• Drum outer diameter: 252.5 mm
• Drum inner diameter: 203 mm, maximum 205 mm
• Center hole inner diameter: 76 mm
• Drum height: 54 mm
• Lug stud hole inner diameter: 12.5 mm
• Drum hub outer diameter: 176 mm

Detailed Specifications and Features

This Beck Arnley brake drum (part number 083-3696) is manufactured to meet exact OEM specifications for Hyundai Elantra and Venue vehicles. The 5-lug design with a 114 mm bolt pattern ensures secure mounting. The drum’s outer diameter of 252.5 mm and inner diameter of 203 mm (with a maximum allowable inner diameter of 205 mm) provide the correct surface area for brake shoe contact, maintaining effective braking force. The 76 mm center hole inner diameter and 176 mm hub outer diameter are designed for proper alignment and fitment on the vehicle’s axle hub. Additionally, the 54 mm drum height supports adequate brake shoe clearance and heat dissipation during braking.

Common Applications and Problem Resolution

• Replacement for worn or scored brake drums on Hyundai Elantra and Venue
• Restores proper braking surface to reduce brake noise and vibration
• Addresses issues with uneven brake shoe wear
• Corrects brake pulsation caused by out-of-round drums
• Ensures safe and consistent braking performance

Installation Notes and Tips

When installing the Beck Arnley 083-3696 brake drum, verify the bolt pattern matches the vehicle’s 5-lug, 114 mm specification. Inspect the hub and axle for any damage or corrosion before mounting. Measure the drum’s inner diameter to ensure it does not exceed the maximum 205 mm limit, as exceeding this can compromise braking efficiency. Properly torque lug nuts to manufacturer specifications to avoid warping the drum. It is recommended to replace brake shoes simultaneously for optimal performance.

Quality Assurance and Warranty

Beck Arnley brake drums are manufactured to meet or exceed OEM standards, ensuring durability and reliable braking performance. The 083-3696 part undergoes rigorous quality control to maintain dimensional accuracy and material integrity. This product is backed by Beck Arnley’s standard warranty coverage, providing confidence in its long-term use on Hyundai Elantra and Venue vehicles.
