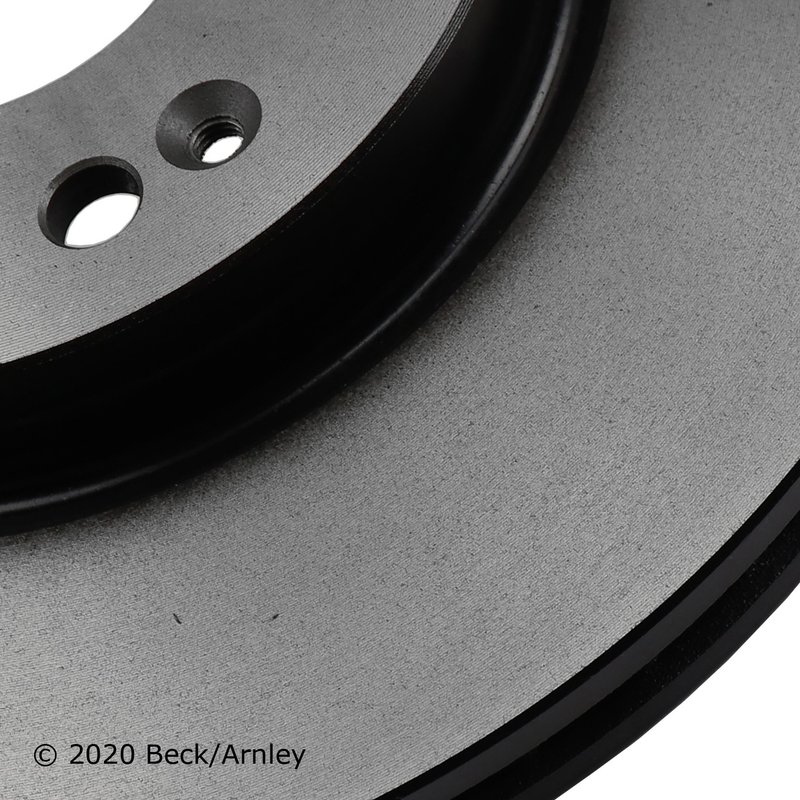

Beck Arnley 083-3727 Disc Brake Rotor - Front

Overview of Beck Arnley Disc Brake Rotor 083-3727

The Beck Arnley 083-3727 disc brake rotor is engineered for reliable braking performance on Hyundai Ioniq and Kia Niro models. Designed with vented construction and a 5-lug bolt pattern, this rotor meets precise fitment specifications for these vehicles.

• Vented rotor design for improved heat dissipation
• 5-lug bolt pattern with 114 mm spacing
• Rotor outer diameter of 280 mm and thickness of 22 mm
• Center hole diameter of 69 mm for accurate hub fit
• Minimum rotor thickness of 20 mm to ensure durability

Technical Specifications and Features

This disc brake rotor features a vented design, which enhances cooling by allowing air to flow between the rotor surfaces, reducing the risk of brake fade during extended use. The rotor is not solid but vented, supporting better thermal management. It has a lug quantity of 5 with a bolt pattern measuring 114 mm, compatible with Hyundai Ioniq and Kia Niro models. The rotor’s outer diameter is 280 mm, with a surface thickness of 22 mm and a minimum thickness specification of 20 mm, ensuring it meets safety and performance standards. The rotor height is 44 mm, and the hub outer diameter is 155 mm, with a rotor ID of 143 mm and lug stud hole inner diameter of 12.5 mm, all critical dimensions for proper installation and fitment.

Compatible Vehicles and Applications

This Beck Arnley disc brake rotor 083-3727 is specifically compatible with the following vehicles:

• Hyundai Ioniq
• Kia Niro

It is designed to replace worn or damaged rotors on these models, restoring braking efficiency and safety.

Common Issues Addressed by This Rotor

• Brake pulsation caused by warped rotors
• Reduced braking performance due to rotor wear
• Overheating and brake fade from insufficient rotor ventilation
• Noise and vibration from uneven rotor surfaces
• Corrosion or physical damage to existing rotors

Installation Notes and Tips

When installing the Beck Arnley 083-3727 rotor, ensure the vehicle is securely lifted and the wheel is removed. Clean the hub surface to remove rust or debris before mounting the rotor. Verify the rotor thickness meets or exceeds the minimum thickness of 20 mm. Use the correct torque specifications for the 5-lug, 114 mm bolt pattern to avoid uneven rotor wear. It is recommended to replace brake pads simultaneously to maintain optimal braking performance.

Quality Assurance and Warranty

Beck Arnley rotors are manufactured to meet or exceed OEM specifications, ensuring consistent quality and fitment. The 083-3727 rotor undergoes rigorous testing for durability and performance. Warranty coverage details should be confirmed with the point of purchase, but Beck Arnley typically offers limited warranties against defects in materials and workmanship.
