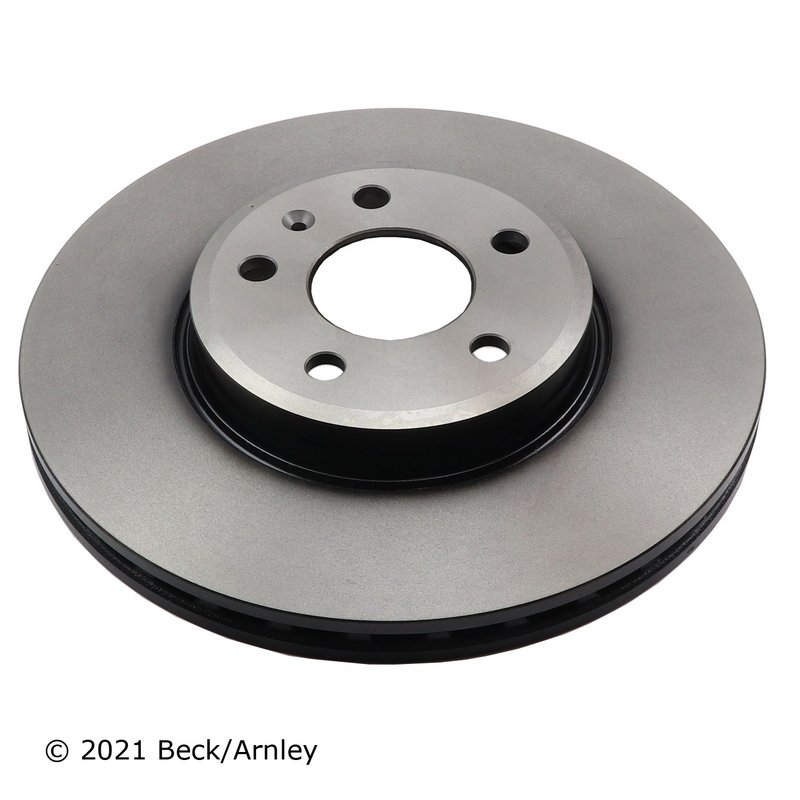

Beck Arnley 083-3757 Disc Brake Rotor - Front

Overview of Beck Arnley Disc Brake Rotor 083-3757

The Beck Arnley 083-3757 disc brake rotor is engineered for reliable braking performance on Audi vehicles, including the A4, A4 Quattro, and A5 Sportback models. Designed with precision, this vented rotor supports effective heat dissipation and consistent stopping power.

• Vented design for improved heat dissipation
• 5-lug bolt pattern with 112 mm spacing
• Rotor outer diameter of 313.8 mm
• Rotor thickness of 25 mm with a minimum thickness of 23 mm
• Center hole diameter of 68 mm for proper hub fitment
• Compatible with Audi A4, A4 Quattro, and A5 Sportback

Technical Specifications and Features

This disc brake rotor features a vented construction that enhances airflow to reduce heat buildup during braking, which helps maintain consistent brake performance and reduces the risk of rotor warping. The rotor has a 5-lug bolt pattern with a 112 mm bolt circle diameter, matching the wheel hub specifications of compatible Audi models. The rotor’s outer diameter measures 313.8 mm, with a surface thickness of 25 mm and a minimum allowable thickness of 23 mm to ensure safe operation. The rotor hub outer diameter is 166 mm, and the rotor ID is 154 mm, providing a precise fit for the vehicle’s braking system. The lug stud hole inner diameter is 15.3 mm, accommodating standard lug nuts for secure wheel attachment.

Compatible Vehicles and Applications

This Beck Arnley disc brake rotor 083-3757 is specifically designed for use with the following Audi models:

• Audi A4
• Audi A4 Quattro
• Audi A5 Sportback

It is suitable for drivers seeking replacement rotors that meet factory specifications for these vehicles, ensuring proper fit and reliable braking performance.

Common Issues Addressed by This Rotor

• Brake rotor warping due to excessive heat
• Uneven brake pad wear caused by rotor surface irregularities
• Vibration or pulsation during braking
• Reduced braking efficiency from worn or undersized rotors
• Noise or squealing related to rotor surface damage

Installation Notes and Tips

When installing the Beck Arnley 083-3757 disc brake rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Verify that the rotor thickness meets or exceeds the minimum thickness specification of 23 mm. Properly torque lug nuts to manufacturer specifications to avoid rotor distortion. It is recommended to inspect brake pads and replace them if worn to maintain optimal braking performance. Always follow vehicle-specific service procedures for brake system maintenance.

Quality Assurance and Warranty

Beck Arnley rotors are manufactured to meet or exceed OEM standards, providing consistent quality and durability. This rotor undergoes rigorous testing to ensure dimensional accuracy and material integrity. While specific warranty details are not provided here, Beck Arnley products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
