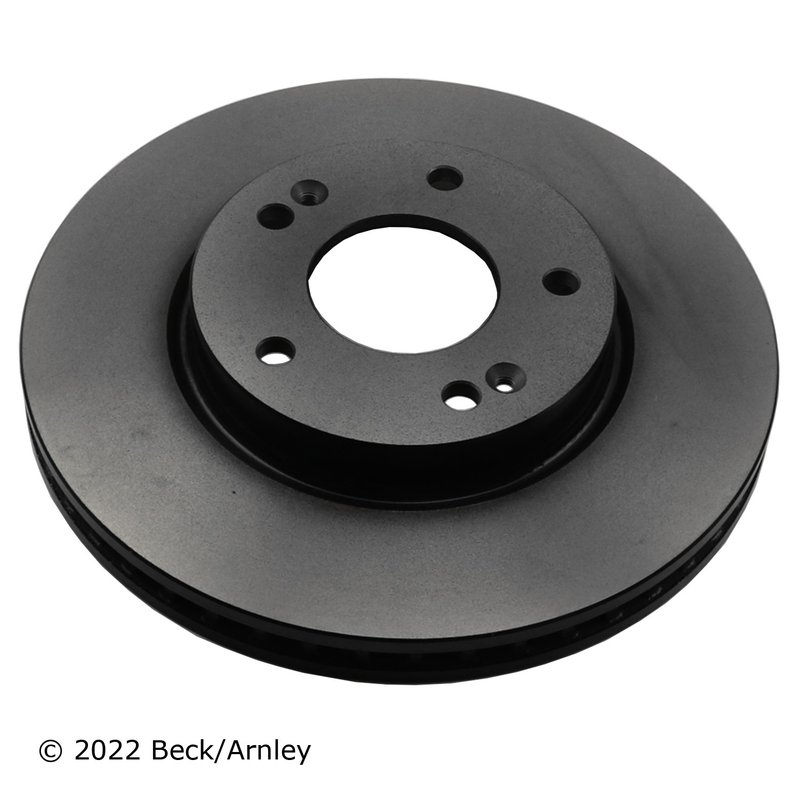

Beck Arnley 083-3786 Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Hyundai and Kia Vehicles

The Beck Arnley 083-3786 disc brake rotor is engineered to meet the braking demands of Hyundai Elantra, Kona, and Kia Niro models. Designed with precision, this vented rotor ensures consistent performance and heat dissipation for safer stopping power.

• Premium grade vented disc brake rotor
• Rotor outside diameter: 280 mm for optimal fit
• Smooth surface type for even pad contact
• Minimum thickness of 23 mm to maintain braking integrity
• 5 lug holes with 12.5 mm diameter and 114 mm bolt hole center-to-center length
• Compatible with Hyundai Elantra, Kona, and Kia Niro
• Hub outside diameter: 154 mm and rotor center bore inside diameter: 69 mm

Detailed Product Specifications

This Beck Arnley disc brake rotor (part number 083-3786) features a vented design that improves heat dissipation during braking, reducing the risk of brake fade. The rotor thickness of 25 mm and minimum thickness of 23 mm ensure durability and consistent braking performance over time. The smooth surface finish promotes even brake pad wear and quiet operation. With a rotor outside diameter of 280 mm and an inside diameter of 143 mm, this rotor is engineered to fit precisely on compatible Hyundai and Kia models. The 5 lug holes with a diameter of 12.5 mm and a bolt hole center-to-center length of 114 mm provide secure mounting, while the hub outside diameter of 154 mm and center bore diameter of 69 mm ensure proper alignment.

Compatible Vehicles and Applications

• Hyundai Elantra brake rotor replacement
• Hyundai Kona disc brake rotor upgrade
• Kia Niro vented rotor installation
• Addressing brake noise and vibration issues
• Replacing worn or warped rotors for improved braking

Installation Notes and Tips

When installing the Beck Arnley 083-3786 rotor, ensure the rotor surface is clean and free of any contaminants before mounting. Verify the rotor thickness meets or exceeds the minimum thickness specification of 23 mm to maintain safety standards. Use proper torque specifications for the 5 lug nuts to avoid rotor warping. This rotor does not include bearings, so reuse existing bearings or replace as necessary. Proper bedding-in of brake pads after installation is recommended for optimal performance.

Quality Assurance and Warranty

Beck Arnley manufactures this disc brake rotor to meet or exceed OEM specifications, providing reliable braking performance for Hyundai and Kia vehicles. The premium grade material and vented design contribute to long service life and consistent operation. Please refer to Beck Arnley’s warranty policy for coverage details on part number 083-3786.
