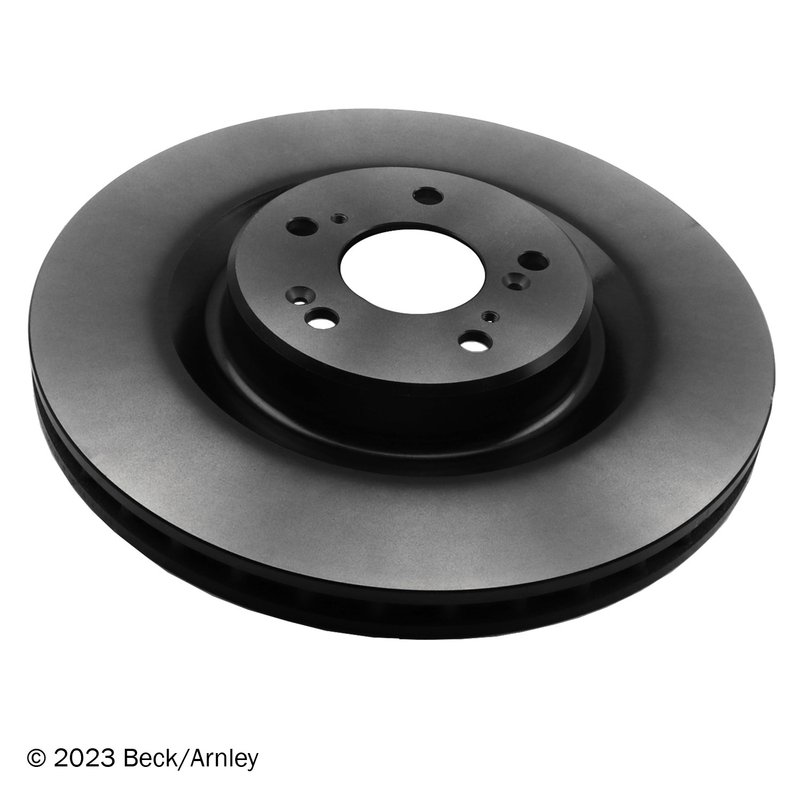

Beck Arnley 083-3815 Disc Brake Rotor - Front

Beck Arnley Front Disc Brake Rotor

The Beck Arnley 083-3815 is a premium front disc brake rotor built as a direct OE-style replacement for select Acura applications. It is engineered for the 2022-2026 Acura MDX and 2021-2025 Acura TLX, with the dimensions and vented design needed for proper brake system fitment and consistent rotor performance.

Key Features

• Part number 083-3815 for front brake service
• Fits 2022-2026 Acura MDX, front
• Fits 2021-2025 Acura TLX, front
• Vented rotor design for front axle use
• Premium grade construction
• Smooth surface type
• Rotor outside diameter: 364 mm
• Rotor thickness: 30 mm
• Minimum thickness: 28 mm
• 5 lug holes with 120 mm bolt hole center-to-center length
• Center bore inside diameter: 70 mm
• Hub outside diameter: 176 mm

Detailed Description

Beck Arnley 083-3815 is a front disc brake rotor designed for foreign nameplate OE replacement applications, with attention to form, fit, and function. The vented rotor construction, 364 mm outside diameter, and 30 mm thickness support the braking requirements of the Acura MDX and Acura TLX front axle fitments listed here. If you are replacing a worn or warped front rotor on a 2022-2026 Acura MDX or a 2021-2025 Acura TLX, this rotor is built to match the specified dimensions and mounting layout.

Beck Arnley sources parts through a global network and validates them to meet brand requirements and specifications. That approach helps ensure the 083-3815 aligns with OE-style fitment expectations for Acura MDX and Acura TLX front brake service.

What It Helps Address

• Brake pulsation from rotor thickness variation or runout
• Visible scoring, grooves, or heat spotting on the front rotor
• Brake noise caused by worn rotor surfaces
• Reduced braking consistency from a rotor below minimum thickness
• Front brake service on Acura MDX and Acura TLX models with the listed fitment

Installation Notes and Tips

Confirm rotor dimensions, hub bore, bolt pattern, and minimum thickness before installation. Clean the hub mounting surface thoroughly to help the rotor seat evenly, and inspect pads, calipers, and hardware condition during brake service. After installation, follow the vehicle manufacturer’s brake bedding procedure for the best results.

Quality Assurance

Beck Arnley parts are built as OE-style replacements for foreign applications, with specifications checked against the intended fitment. The 083-3815 is produced to meet Beck Arnley requirements for form, fit, and function.
