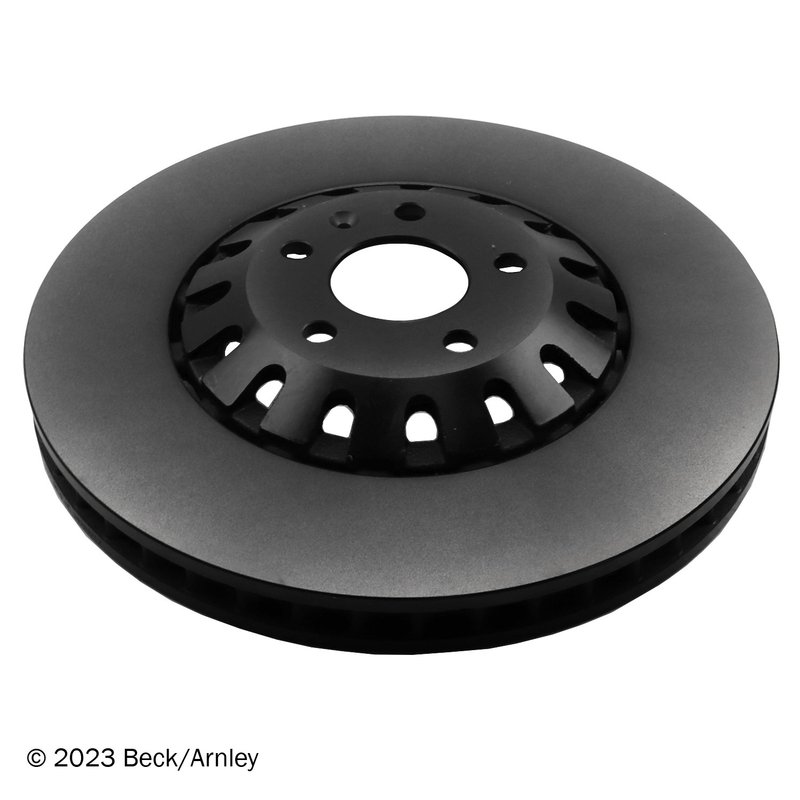

Beck Arnley 083-3817 Disc Brake Rotor - Front

OE-Style Front Brake Rotor for Audi

The Beck Arnley 083-3817 is a premium front disc brake rotor built for direct replacement on select Audi applications. It is a vented, full-cast rotor with a smooth surface and OE-focused dimensions for consistent fitment on the front axle.

Compatible with Audi Q7, Audi Q8, Audi A6 Quattro, Audi A7 Sportback, and Audi A8 Quattro front brake applications, this rotor is designed around the form, fit, and function expected for foreign nameplate vehicles. The Beck Arnley 083-3817 helps restore braking performance when the original rotor is worn, scored, or below minimum thickness.

Key Features

• Part number: 083-3817
• Front disc brake rotor for select Audi models
• Vented, full-cast rotor construction
• Smooth surface type for brake service replacement
• Rotor outside diameter: 374 mm
• Rotor thickness: 36 mm
• Minimum thickness: 34 mm
• 5-lug design with 112 mm bolt hole center-to-center length
• Rotor center bore inside diameter: 58 mm
• Hub outside diameter: 150 mm
• Premium grade type

Detailed Description

Beck Arnley sources replacement parts to match OE application requirements for foreign vehicles, with attention to fit, dimensions, and function. The 083-3817 front rotor follows the specifications needed for select Audi platforms, including the Q7, Q8, A6 Quattro, A7 Sportback, and A8 Quattro. Its vented design supports front brake heat management, while the smooth, full-cast construction provides a direct replacement solution for service work.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Rotor Helps Address

• Brake pulsation caused by rotor wear or thickness variation
• Scoring, grooves, or surface damage on the front rotor
• Reduced braking consistency from a worn OE rotor
• Service replacement needs when the rotor is at or near minimum thickness
• Front brake maintenance on Audi Q7, Q8, A6 Quattro, A7 Sportback, and A8 Quattro models

Installation Notes and Tips

Verify rotor dimensions, hub bore, bolt pattern, and minimum thickness before installation. This rotor is for front position applications only and does not include bearings. Always inspect pads, caliper hardware, and hub condition during brake service, and follow the vehicle manufacturer’s torque and bedding procedures.

Quality Assurance

Beck Arnley parts are built as direct replacement components for OE applications, with product specifications matched to the intended vehicle fitment. The brand uses a global sourcing network and internal product standards to support consistent form, fit, and function for import vehicle brake service.
