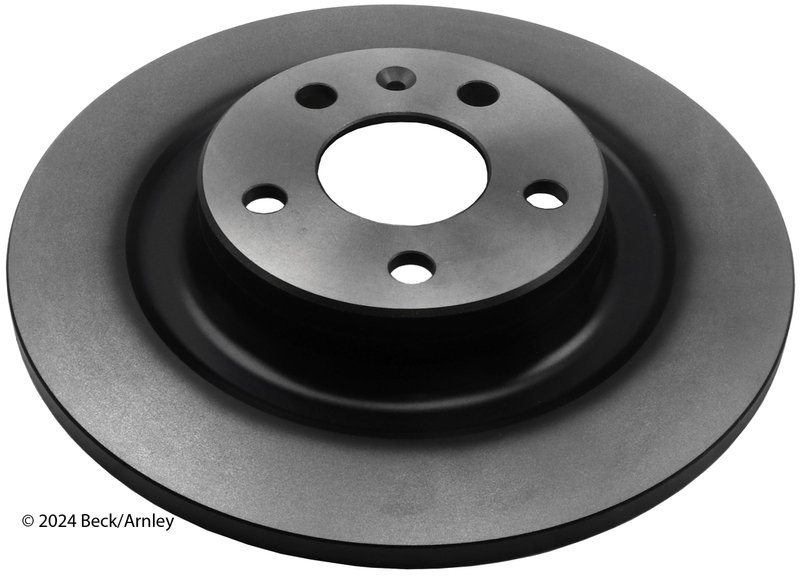

Beck Arnley 083-3828 Disc Brake Rotor - Rear

Overview of Beck Arnley Disc Brake Rotor 083-3828

The Beck Arnley 083-3828 disc brake rotor is engineered for reliable braking performance on select Volvo models. Designed as a solid rotor with a smooth surface, it offers consistent stopping power and durability for vehicles like the Volvo S60, S90, V60 Cross Country, V90, V90 Cross Country, and XC60.

• Compatible with Volvo S60, S90, V60 Cross Country, V90, V90 Cross Country, and XC60
• Solid disc brake rotor with smooth surface finish
• Rotor outside diameter: 302 mm, thickness: 12 mm
• Minimum thickness: 9.5 mm for safe operation
• 5 lug holes with 15.8 mm diameter and 108 mm bolt hole center-to-center length
• Hub outside diameter: 143 mm, rotor center bore inside diameter: 63.6 mm
• Premium grade type rotor designed for durability

Detailed Product Description

This Beck Arnley disc brake rotor, part number 083-3828, is a premium-grade solid rotor designed to meet the braking demands of various Volvo models. The rotor features a smooth surface type that ensures even pad contact and reduces noise during braking. With an outside diameter of 302 mm and a thickness of 12 mm, it provides a robust braking surface. The rotor’s minimum thickness of 9.5 mm is critical for maintaining braking efficiency and safety. The 5 lug holes, each with a diameter of 15.8 mm, and a bolt hole center-to-center length of 108 mm, ensure proper fitment and secure mounting. The rotor’s hub outside diameter of 143 mm and center bore inside diameter of 63.6 mm are designed to match the hub assembly specifications of compatible Volvo vehicles.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Volvo S60, S90, V60 Cross Country, V90, V90 Cross Country, and XC60
• Resolves brake pulsation caused by uneven rotor surfaces
• Addresses reduced braking performance due to rotor thickness below minimum specification
• Eliminates noise and vibration from damaged or scored rotors
• Restores proper rotor dimensions for safe and effective braking

Installation Notes and Tips

• Verify rotor thickness before installation; do not install if below 9.5 mm minimum thickness
• Ensure proper cleaning of rotor surface to remove any protective coatings or contaminants
• Check lug hole alignment and bolt hole center-to-center length for correct fitment
• Use appropriate torque specifications for lug nuts to avoid rotor damage
• Inspect brake pads and replace if worn to ensure optimal rotor performance

Quality Assurance and Warranty

The Beck Arnley 083-3828 disc brake rotor is manufactured to meet or exceed OEM specifications for fit, form, and function. This premium grade rotor undergoes rigorous quality control to ensure durability and consistent braking performance. Please note that this rotor does not include bearings. The product is backed by Beck Arnley’s standard warranty coverage, providing confidence in its reliability and longevity.
