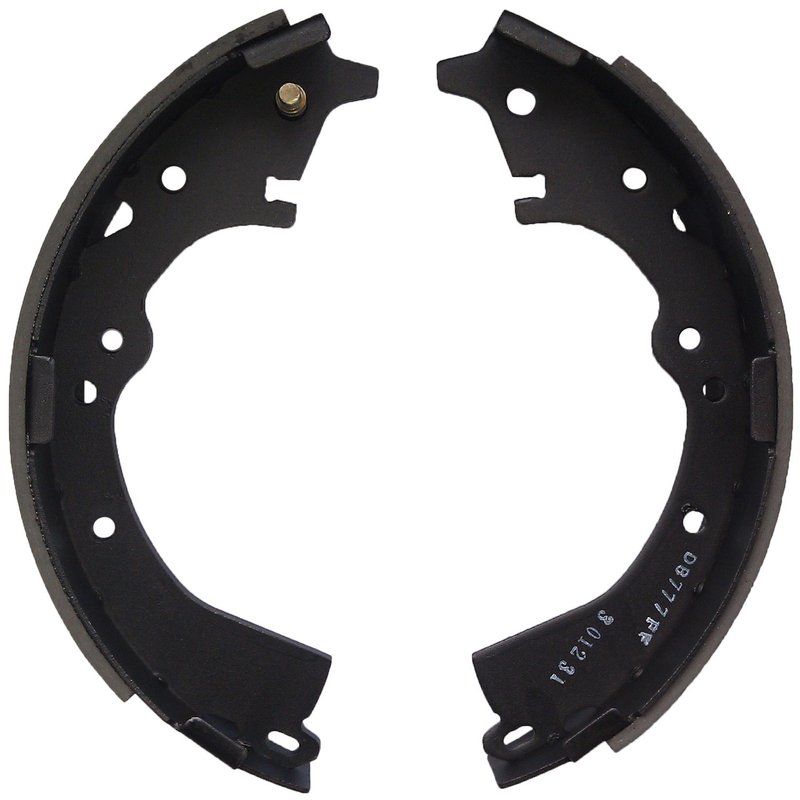

Bendix Friction 505 Drum Brake Shoe - Rear
| Brand | Bendix Friction 505 |
|---|---|
| Position | Rear |
| Product line | Bendix Premium Brake Shoes |
| Fits | Toyota · 58 vehicles |
Copper-free friction. Built with 100% copper-free material for North American brake requirements.
OE match levers. Uses OE-style levers for proper fit and consistent brake service.
Premium compound. Friction material is engineered to exceed OEM performance targets.
Overview
Bendix Premium Brake Shoes part number 505 is a rear drum brake shoe set built for Toyota applications with specific 10-inch brake configurations. It combines copper-free friction material with OE match levers and an adhesive-backed design for consistent brake service.
Key Features
- 100% copper-free friction material for North American copper-free requirements.
- Premium-grade friction compound engineered to exceed OEM performance targets.
- Advanced adhesive for strong bond retention.
- OE match levers for proper fit and function.
- Hardware included where applicable.
Detailed Description
Bendix Premium Brake Shoes 505 are part of the Bendix Premium Brake Shoes line, a copper-free brake program focused on replacement shoes and pads for everyday service needs. This part number is specified for rear drum brake applications on Toyota models including Tacoma, Hilux, RAV4, Previa, Pickup, Van, and Van Wagon, with fitment tied to the listed brake sizes and vehicle notes. For buyers searching for Toyota Tacoma rear brake shoes or Toyota Pickup rear drum brake shoes, this part number 505 provides a direct service option matched to the application details shown.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Worn rear drum brake shoe friction surfaces.
- Brake noise caused by aged shoe material.
- Reduced stopping performance from brake lining wear.
- Fitment issues when OE-style levers are required.
- Service needs on copper-free brake systems.
Installation Notes
Verify rear drum brake size and vehicle notes before ordering, since fitment varies by model year and brake configuration. This Bendix 505 application list includes Toyota Tacoma, Toyota Hilux, Toyota RAV4, Toyota Previa, Toyota Pickup, Toyota Van, and Toyota Van Wagon with rear drum brake specifications noted in the fitment table. Follow standard drum brake service procedures and confirm shoe orientation and lever transfer requirements during installation.
Quality Assurance
Bendix Premium Brake Shoes are part of a copper-free brake offering committed to the North American Copper-Free Initiative. The friction material, adhesive construction, and OE match levers are engineered for consistent replacement performance in the specified applications.
| Year | Make | Model | Submodel | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 2014 | Toyota | Hilux | — | — | — | — | — | — | Rear | w/ 10" X 2" Brakes; Bendix Premium Brake Shoes |
| 2013 | Toyota | Hilux | — | — | — | — | — | — | Rear | w/ 10" X 2" Brakes; Bendix Premium Brake Shoes |
| 2004 | Toyota | Tacoma | — | — | RWD | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 2003 | Toyota | RAV4 | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 2003 | Toyota | Tacoma | — | — | RWD | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 2002 | Toyota | Tacoma | — | — | RWD | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 2001 | Toyota | Tacoma | — | — | RWD | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 2000 | Toyota | Tacoma | — | — | RWD | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1999 | Toyota | Tacoma | — | — | RWD | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1998 | Toyota | Tacoma | — | — | RWD | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1997 | Toyota | Tacoma | — | — | RWD | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1996 | Toyota | Tacoma | — | — | RWD | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1995 | Toyota | Pickup | Base | — | RWD | — | — | — | Rear | 1/2 Ton; w/ Short Bed; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1995 | Toyota | Pickup | DLX | — | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1995 | Toyota | Pickup | SR5 | — | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1995 | Toyota | Previa | — | — | — | — | — | — | Rear | To 8/94; Bendix Premium Brake Shoes |
| 1995 | Toyota | Tacoma | — | — | RWD | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1994 | Toyota | Pickup | Base | — | RWD | — | — | — | Rear | 1/2 Ton; w/ Short Bed; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1994 | Toyota | Pickup | DLX | — | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1994 | Toyota | Pickup | SR5 | — | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1994 | Toyota | Previa | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1993 | Toyota | Pickup | Base | Standard Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Short Bed; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1993 | Toyota | Pickup | DLX | Standard Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1993 | Toyota | Pickup | DLX | Extended Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1993 | Toyota | Pickup | SR5 | Extended Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1993 | Toyota | Previa | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1992 | Toyota | Pickup | Base | Standard Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Short Bed; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1992 | Toyota | Pickup | DLX | Standard Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1992 | Toyota | Pickup | DLX | Extended Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1992 | Toyota | Pickup | SR5 | Extended Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1992 | Toyota | Previa | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1991 | Toyota | Pickup | Base | Standard Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Short Bed; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1991 | Toyota | Pickup | DLX | Standard Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1991 | Toyota | Pickup | DLX | Extended Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1991 | Toyota | Pickup | SR5 | Extended Cab Pickup | RWD | — | — | — | Rear | 1/2 Ton; w/ Single Rear Wheels; Bendix Premium Brake Shoes |
| 1991 | Toyota | Previa | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1990 | Toyota | Pickup | Base | — | RWD | — | 2.4L | L4 | Rear | 1/2 Ton; w/ Short Bed; w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1990 | Toyota | Pickup | DLX | — | RWD | — | 2.4L | L4 | Rear | 1/2 Ton; w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1990 | Toyota | Pickup | SR5 | — | RWD | — | 2.4L | L4 | Rear | 1/2 Ton; w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1989 | Toyota | Pickup | — | — | RWD | Manual | — | — | Rear | w/ Single Rear Wheels; w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1989 | Toyota | Van | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1988 | Toyota | Pickup | — | — | RWD | — | — | — | Rear | 1/2 Ton; w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1988 | Toyota | Van | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1988 | Toyota | Van Wagon | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1987 | Toyota | Pickup | — | — | RWD | — | — | — | Rear | 1/2 Ton; w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1987 | Toyota | Van | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1986 | Toyota | Pickup | — | — | RWD | — | — | — | Rear | 1/2 Ton; Bendix Premium Brake Shoes |
| 1986 | Toyota | Van | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1985 | Toyota | Pickup | — | — | RWD | — | — | — | Rear | 1/2 Ton; Bendix Premium Brake Shoes |
| 1985 | Toyota | Van | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1984 | Toyota | Pickup | — | — | RWD | — | — | — | Rear | 1/2 Ton; Bendix Premium Brake Shoes |
| 1984 | Toyota | Van | — | — | — | — | — | — | Rear | w/ 10" X 1.99" Brakes; Bendix Premium Brake Shoes |
| 1983 | Toyota | Pickup | — | — | RWD | — | — | — | Rear | 1/2 Ton; Bendix Premium Brake Shoes |
| 1982 | Toyota | Pickup | — | — | RWD | — | — | — | Rear | 1/2 Ton; Bendix Premium Brake Shoes |
| 1981 | Toyota | Pickup | — | — | RWD | — | — | — | Rear | 1/2 Ton; Bendix Premium Brake Shoes |
| 1980 | Toyota | Pickup | — | — | RWD | — | — | — | Rear | 1/2 Ton; Bendix Premium Brake Shoes |
| 1979 | Toyota | Pickup | — | — | RWD | — | — | — | Rear | Bendix Premium Brake Shoes |
| 1978 | Toyota | Pickup | — | — | — | — | — | — | Rear | Late; Bendix Premium Brake Shoes |
