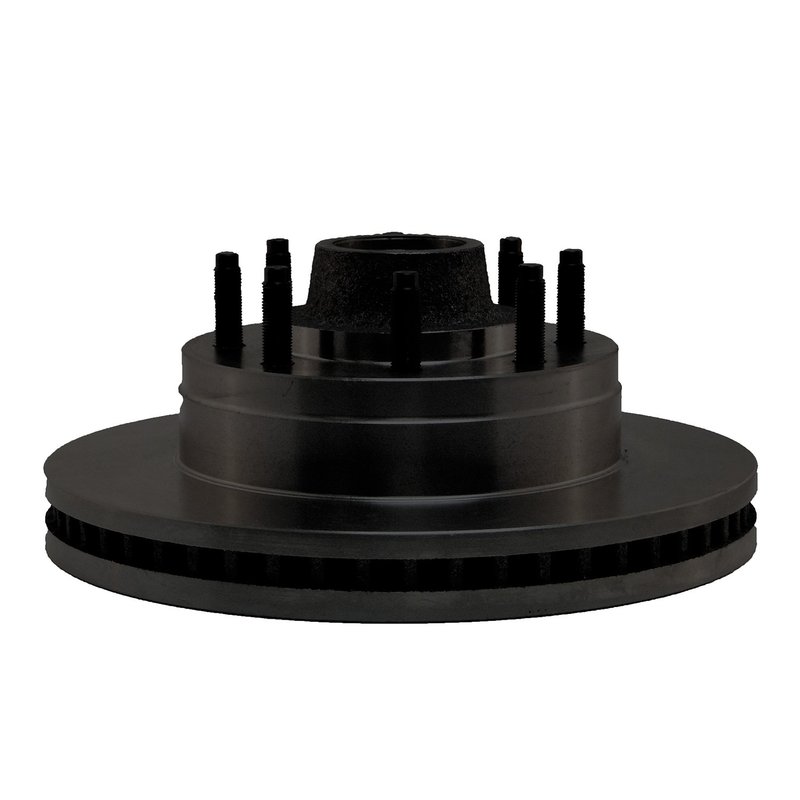

Bendix Friction SDR5915 Disc Brake Rotor and Hub Assembly - Front

Bendix Severe Duty Rotor SDR for Fleet Braking

The Bendix Friction Bendix Severe Duty Rotor SDR, part number SDR5915, is built for demanding front brake applications on work trucks and pursuit vehicles. It combines precise machining, OEM vane configurations, and severe-duty casting strength for consistent braking performance under heavy use.

Key Features

• Mill balancing and OEM-driven machining specifications for controlled rotor finish and fit
• Focused range for police and fleet service
• OEM vane configurations to match original airflow and cooling design
• Manufacturing control with precise machining tolerances
• ACP alloyed-carbon performance castings for thermal stability and strength in severe duty use

Severe Duty Rotor SDR Line Details

The Bendix Severe Duty Rotor SDR line is aimed at high-demand braking environments where heat management, dimensional control, and repeatable performance matter. SDR5915 follows that approach with a rotor and hub assembly built for front axle service on select Ford vans and fleet platforms, including Ford E-350 Super Duty, Ford E-150, and Ford E-250 applications.

Detailed Description

SDR5915 is a disc brake rotor and hub assembly engineered for front brake service on select Ford E-Series vehicles. It is a direct-fit option for 2021 Ford E-350 Super Duty, front, w/ Single Rear Wheels; 2008-2019 Ford E-350 Super Duty, front, w/ Single Rear Wheels; 2008-2014 Ford E-150, front; and 2008-2014 Ford E-250, front. This part number, SDR5915, is built around OEM-style vane geometry and tight machining tolerances to support stable braking feel and consistent rotor geometry in severe duty use.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues This Rotor Helps Address

• Brake vibration caused by rotor runout or uneven machining
• Heat-related brake fade during repeated stops
• Premature wear from heavy fleet or pursuit-duty braking cycles
• Inconsistent pedal feel from worn or distorted front rotors
• Reduced braking stability on Ford E-350 Super Duty, E-150, and E-250 front axle applications

Installation Notes and Tips

• Confirm front axle fitment before ordering; this rotor is listed for front position only.
• Verify single rear wheel configuration on Ford E-350 Super Duty applications.
• Inspect pads, calipers, and hub surfaces before installation to help preserve rotor finish.
• Clean all mating surfaces and follow factory torque specifications during assembly.
• After installation, perform a proper brake bedding procedure to help establish even pad transfer.

Quality Assurance

Bendix Friction builds the Severe Duty Rotor SDR line with controlled manufacturing processes, mill balancing, and ACP alloyed-carbon castings to support severe-duty braking demands. SDR5915 is produced to OEM-driven machining specifications for consistent fit and performance in fleet-focused front brake service.
