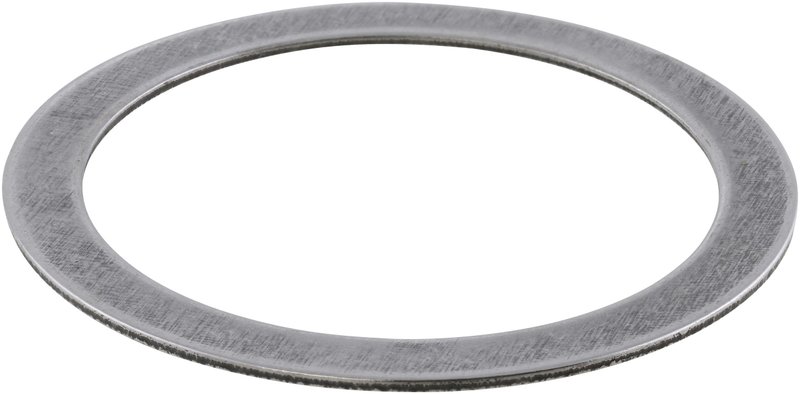

BGMG 703032 Differential Pinion Shim - Front Differential

Differential Pinion Shim for Ford Super Duty

The FSGR 703032 differential pinion shim is a driveline hardware component for front differential service on select Ford Super Duty trucks. It is used in pinion setup and adjustment work where precise spacing is needed during differential assembly or repair.

Key Features

• Part type: differential pinion shim
• Brand line: FSGR
• Part number: 703032
• Fits front differential applications
• Direct fitment for Ford F-250 Super Duty and Ford F-350 Super Duty

Fitment Details

• Fits 2005-2015 Ford F-250 Super Duty, Front Differential
• Fits 2005-2015 Ford F-350 Super Duty, Front Differential

Product Description

Built for front differential setup work, this differential pinion shim helps establish the correct pinion position during service on 2005-2015 Ford F-250 Super Duty and 2005-2015 Ford F-350 Super Duty trucks. The FSGR 703032 is a driveline hardware part used when differential geometry needs to be corrected or restored during rebuild, bearing service, or gear setup. For technicians searching for Ford F-250 Super Duty front differential shim or Ford F-350 Super Duty pinion shim applications, part number 703032 identifies the correct service component.

What It Helps Address

• Incorrect pinion depth during differential setup
• Noise caused by improper gear mesh
• Wear patterns related to pinion alignment
• Service corrections after differential rebuild work
• Front differential adjustment on Ford Super Duty trucks

Installation Notes

Install during front differential service only after verifying the required shim thickness for the application. Measure and confirm pinion depth, bearing preload, and gear pattern before final assembly. Use proper differential setup procedures for the axle being serviced, and match the shim to the measured specification rather than guessing by appearance.

Quality Assurance

FSGR 703032 is cataloged as a differential pinion shim for confirmed Ford Super Duty front differential applications. Verify vehicle year, model, and axle service requirements before installation.
