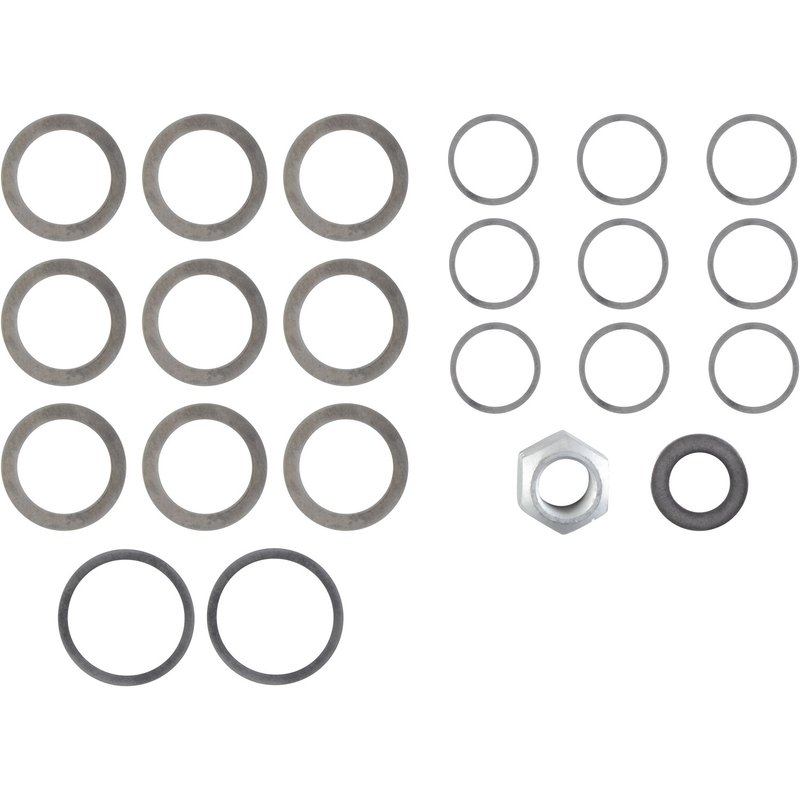

BGMG 707481X Differential and Pinion Shim Kit - Rear

Differential and Pinion Shim Kit for Ford Rear Axles

The FSGR 707481X differential and pinion shim kit is a driveline hardware solution for rear axle setup and adjustment. It is listed for Ford Super Duty and Econoline applications, including Ford F-350 Super Duty and E-350 rear axle service.

Key Features

• Part number: 707481X
• Brand line: FSGR
• Category: driveline and axle hardware
• Used for differential and pinion shim adjustment in rear axle service
• Fits rear-position applications only
• Compatible with Ford F-350 Super Duty and Ford E-350 rear axle applications

Application Details

Use the FSGR 707481X when servicing rear differential and pinion setup on supported Ford trucks and vans. This part is listed for 1999-2015 Ford F-350 Super Duty, rear; 2003-2010 Ford E-350 Super Duty, rear; 2003-2005 Ford E-350 Club Wagon, rear; 1999-2002 Ford E-350 Econoline Club Wagon, rear; and 1999-2000 Ford E-350 Econoline, rear. The 707481X is a fitment-specific shim kit for axle setup work where pinion depth or differential spacing must be adjusted.

What It Is Used For

• Correcting differential setup during rear axle service
• Adjusting pinion depth during gear installation
• Setting backlash and gear mesh in supported rear axles
• Replacing worn or incorrect shim components during driveline repair
• Restoring proper axle setup on Ford F-350 Super Duty and E-350 rear applications

Installation Notes and Tips

Verify axle configuration before installation and match the shim selection to the specific rear differential setup. Measure pinion depth, backlash, and gear contact pattern during assembly to confirm correct adjustment. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

FSGR 707481X is cataloged as a fitment-specific driveline hardware part for rear axle service on listed Ford applications. Confirm vehicle year, model, and rear-position fitment before ordering.
