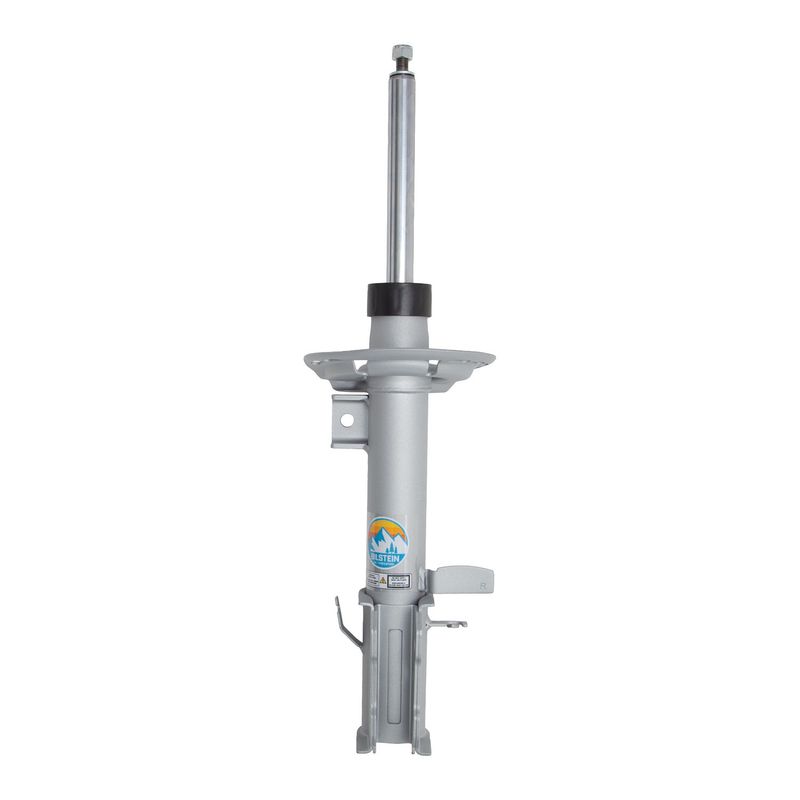

Bilstein 22-316400 Suspension Strut Assembly - Front Right

Overview

The Bilstein B8 TerraSport suspension strut assembly is a direct-fit tuning solution for drivers who want added ground clearance and improved off-road capability. Fits 2021-2025 Ford Bronco Sport, front right, with application-specific tuning for a balanced ride on and off pavement.

Part number 22-316400 is part of Bilstein’s B8 TerraSport line, built for CUV applications where lift, control, and everyday drivability all matter. This setup is tuned to raise the vehicle while preserving the ride quality expected from a Bilstein suspension component.

Key Features

• Direct-fit suspension strut assembly for application-specific installation.
• Provides a 1.25-inch front lift on the listed Ford Bronco Sport application.
• Twintube internal design for consistent damping performance.
• Non-adjustable damping for a fixed, tuned ride characteristic.
• Silver painted finish for a clean, corrosion-resistant appearance.
• Fixed spring seat included with stem upper mount and bracket lower mount.

Detailed Description

Bilstein 22-316400 is engineered for the Ford Bronco Sport platform to increase ride height and improve clearance for rougher terrain. The B8 TerraSport series is tuned for each application, giving this suspension strut assembly a balance of off-road capability and daily driving comfort. If you are replacing a worn strut or upgrading for more usable clearance, this part number 22-316400 delivers a direct-fit solution for the front right position.

This part cross-references 22316400 for the same application.

Common Uses

• Restoring suspension control when the original strut is worn or tired.
• Adding front lift for improved clearance on uneven roads and trails.
• Reducing bottoming-out over dips, ruts, and packed snow.
• Supporting a more controlled ride when the vehicle is loaded with gear.

Installation Notes

Fits 2021-2025 Ford Bronco Sport, front right. Verify mount style, collapsed length, and extended length before installation. This strut uses a stem upper mount and bracket lower mount, with a fixed spring seat and no boot included. Professional installation and a post-install alignment are recommended after suspension replacement.

Quality Assurance

Bilstein tests and tunes B8 TerraSport applications individually to match the intended vehicle setup. Part number 22-316400 is built as a direct-fit suspension component for consistent performance in the specified application.
