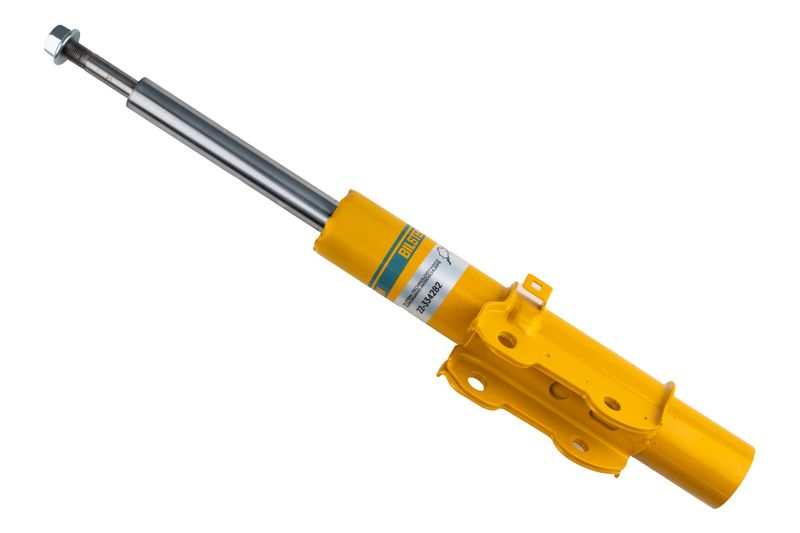

Bilstein 22-334282 Suspension Strut Assembly - Front

Bilstein B6 Camper Front Strut Assembly

The Bilstein B6 Camper front suspension strut assembly is built for camper van applications that carry added weight and need consistent damping response. This Bilstein B6 Camper shock absorber and strut package for Mercedes-Benz Sprinter 2500 and Sprinter 3500 front suspension uses a velocity-sensitive digressive piston to react to changing road conditions with stable, fade-resistant control.

Key Features

• Bilstein B6 Camper series tuned for camper van weight and front-end load demands
• Velocity-sensitive digressive piston for consistent damping response
• Twintube internal design
• Yellow painted finish
• Fixed spring seat included
• Upper mount type: stem
• Lower mount type: bracket
• Collapsed length: 10.02 in. (254.5 mm)
• Extended length: 17.11 in. (434.5 mm)
• Part number 22-334282

Product Details

Bilstein B6 Camper part number 22-334282 is a front suspension strut assembly engineered for 2010-2018 Mercedes-Benz Sprinter 2500 and 2010-2018 Mercedes-Benz Sprinter 3500, plus 2007-2009 Dodge Sprinter 2500 and 2007-2009 Dodge Sprinter 3500. The B6 Camper line is tuned for specific vehicle applications and increased operating weight, helping maintain controlled ride behavior in camper conversions and other heavily loaded front suspension setups. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Excessive front-end bounce on loaded Sprinter vans
• Reduced damping control from worn front struts
• Harsh or inconsistent ride response over changing pavement
• Front suspension instability in camper van builds
• Loss of control feel caused by aging OE-style struts

Installation Notes

Compatible With 2010-2018 Mercedes-Benz Sprinter 2500, front; 2010-2018 Mercedes-Benz Sprinter 3500, front; 2007-2009 Dodge Sprinter 2500, front; and 2007-2009 Dodge Sprinter 3500, front. Verify mount style, spring seat configuration, and compressed/extended length before installation. Because this is a front strut assembly with a fixed spring seat, confirm the existing suspension layout and replace related wear components as needed during service.

Quality Assurance

Bilstein engineers the B6 Camper line for application-specific fitment and load-aware damping performance. The twintube construction and digressive piston design are intended to deliver consistent response under repeated road inputs, making part number 22-334282 a technical replacement choice for Sprinter front suspension service.
