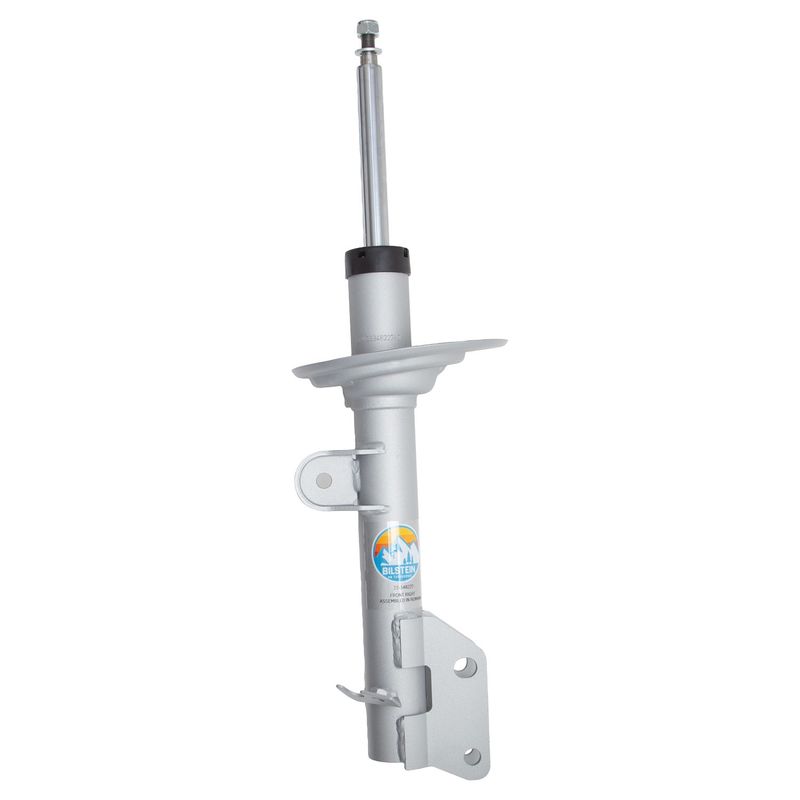

Bilstein 22-348227 Suspension Strut Assembly - Front Right
| Brand | Bilstein 22-348227 |
|---|---|
| Position | Front Right |
| Adjustable Damping | Non-adjustable |
| Boot Included | No |
| Collapsed Length (IN) | 16.85 |
| Collapsed Length (mm) | 428.0 |
| Extended Length (IN) | 22.85 |
| Extended Length (mm) | 580.5 |
| Finish | Silver paint |
| Internal Design | Twintube |
| Lower Mount Type | Bracket |
| PartType | Shocks / struts |
| Reservoir | No |
| Segment | Tuning |
| Series | B8 terrasport |
| Spring Seat Included | Yes - fixed |
| Title | Bilstein shock absorbers |
| Upper Mount Type | Stem |
| Product line | B8 TerraSport |
| Fits | Subaru · 3 vehicles |
Direct-fit tuning. Application-specific strut assembly for consistent ride response.
Lift and clearance. Adds 1-2 inches of lift depending on application.
Twintube design. Non-adjustable damping with a silver painted finish.
Cross-references 22348227 for the same application. See all 1.
Bilstein B8 TerraSport Strut Assembly
The Bilstein B8 TerraSport suspension strut assembly is a direct-fit tuning solution for drivers who want added ground clearance and improved off-road capability without giving up everyday ride quality. This application-specific design is tuned for the Subaru Forester and carries part number 22-348227.
- Fits 2022-2024 Subaru Forester, front right.
- Provides 1.6 inches of front lift for added clearance on rough terrain.
- Non-adjustable damping for consistent suspension response.
- Twintube internal design with a silver painted finish.
- Fixed spring seat and bracket lower mount for direct-fit installation.
Built for lift and control
Bilstein B8 TerraSport is a product line focused on raising ride height and improving back-country capability for crossovers and CUVs. This strut assembly is tested and tuned for its specific application, using a twintube design and non-adjustable damping to balance daily driving comfort with the added control needed when pavement ends. The 22-348227 part number identifies this Forester fitment, and the same part number is also used when searching for 22-348227 replacement listings.
Common replacement reasons
- Front suspension sag or reduced ride height.
- Need for additional clearance on uneven roads or trails.
- Worn strut response that affects ride quality and control.
- Replacement of a non-adjustable strut assembly with application-specific tuning.
Installation notes
Verify fitment by year, model, and front-right position before installation. Confirm collapsed and extended length measurements against the original strut assembly, and inspect the spring seat, upper stem mount, and lower bracket interface during replacement. Professional installation is recommended for suspension work.
Quality assurance
Bilstein tests and tunes B8 TerraSport applications individually to match the intended vehicle setup. Part number 22-348227 is built as a direct-fit suspension strut assembly for the listed Subaru Forester application.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Subaru | Forester | Touring | Front Right | Provides 1.6" Front Lift; B8 TerraSport |
| 2023 | Subaru | Forester | Touring | Front Right | Provides 1.6" Front Lift; B8 TerraSport |
| 2022 | Subaru | Forester | Touring | Front Right | Provides 1.6" Front Lift; B8 TerraSport |
