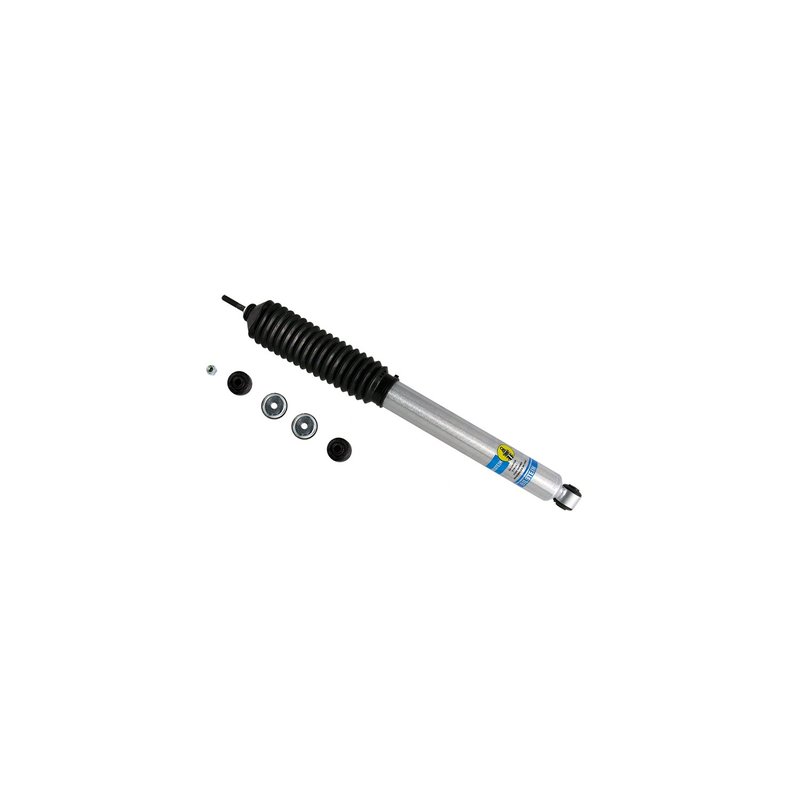

Bilstein 24-146708 Suspension Shock Absorber - Front

Bilstein B8 5100 Shock Absorber Overview

The Bilstein B8 5100 shock absorber (part number 24-146708) is engineered for Jeep Wrangler and Wrangler JK models, providing reliable suspension performance. Designed with a smooth body and monotube internal design, this shock absorber offers consistent damping without adjustability.

• Non-adjustable damping for consistent ride quality
• 46mm smooth body design (non-coilover)
• Black bellows boot included for protection
• Collapsed length: 14.98 inches (380.6 mm)
• Extended length: 24.63 inches (625.5 mm)
• Zinc plated finish for corrosion resistance
• Lower mount: 12.1mm eye type; Upper mount: stem type
• Monotube internal design for improved heat dissipation

About the Bilstein B8 5100 Series

The B8 5100 series by Bilstein is designed specifically for off-road and on-road use, offering enhanced handling and durability for lifted vehicles. This series focuses on providing a smooth, controlled ride with a monotube design that improves shock response and heat management. The 24-146708 shock absorber is part of this line, tailored to meet the suspension needs of Jeep Wrangler and Wrangler JK models without coilover configuration.

Product Details and Specifications

This Bilstein shock absorber features a 46mm smooth body that is non-coilover, making it suitable for Jeep Wrangler and Wrangler JK vehicles requiring a direct replacement or upgrade. The monotube internal design ensures consistent damping performance by efficiently dissipating heat during operation. The shock absorber includes a black bellows boot to protect the piston rod from dirt and debris, extending the service life. With a zinc plated finish, the shock resists corrosion in various driving conditions. The lower mount uses a 12.1mm eye, while the upper mount is a stem type, matching factory mounting points for straightforward installation.

Applications and Problem Solving

• Improves ride stability and control on Jeep Wrangler and Wrangler JK models
• Reduces suspension fade during extended off-road or on-road use
• Replaces worn or damaged factory shocks to restore suspension performance
• Enhances handling for lifted Jeep Wrangler vehicles
• Protects suspension components with included black bellows boot

Installation Notes and Tips

Installation of the Bilstein 24-146708 shock absorber is designed to be a direct fit for Jeep Wrangler and Wrangler JK models. Ensure the vehicle is safely supported before removing old shocks. Verify the upper stem and lower eye mount align with factory mounting points. The included black bellows boot should be positioned correctly to protect the piston rod. No adjustable damping settings are required, simplifying the installation process.

Quality Assurance and Warranty

Bilstein manufactures the B8 5100 series shock absorbers to meet strict quality standards, utilizing durable materials and advanced monotube technology. The zinc plated finish adds corrosion resistance for extended service life. While specific warranty details are not provided here, Bilstein products typically come with manufacturer-backed warranties to ensure reliability and customer confidence.
