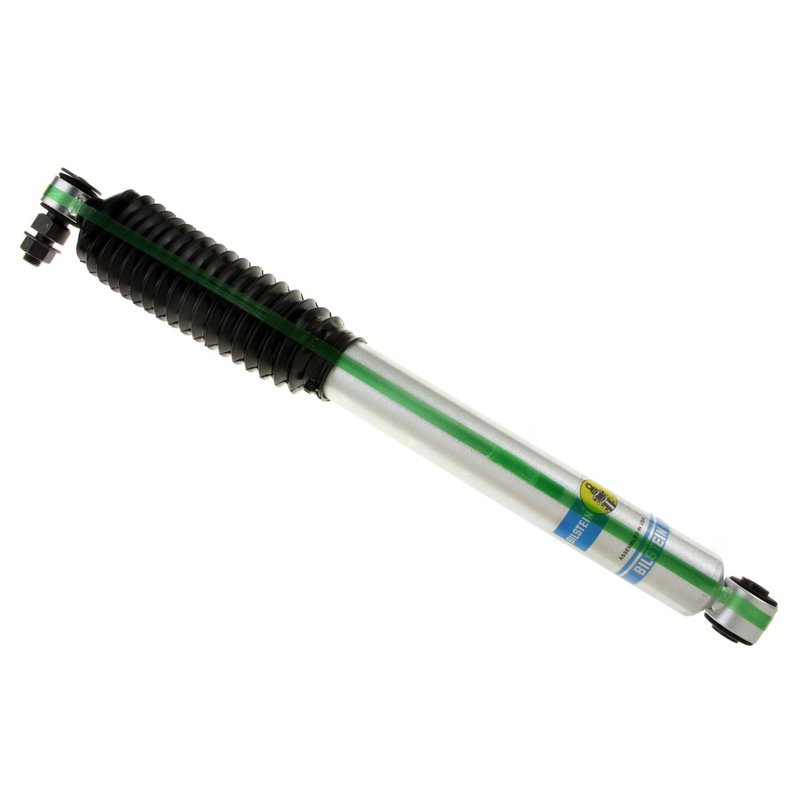

Bilstein 24-187084 Suspension Shock Absorber - Rear

Bilstein B8 5100 Rear Shock for Lifted Trucks

The Bilstein B8 5100 rear shock absorber is a direct-fit suspension upgrade for lifted trucks and SUVs that need controlled damping and consistent road feel. Part number 24-187084 is tuned for specific rear applications, including classic Chevrolet Blazer, GMC Jimmy, and K-series truck and Suburban fitments with 3-4 inch rear lift.

Key Features

• Bilstein B8 5100 series rear shock absorber
• Monotube internal design for consistent, fade-resistant performance
• Velocity-sensitive digressive piston for changing road conditions
• Non-adjustable damping
• Smooth body, non-coilover design
• 46mm body diameter
• Zinc-plated finish
• Black bellows boot included
• Lower eye mount, 14.4mm
• Upper cantilever mount

Product Details

Bilstein B8 5100 shocks are built for rear suspension applications where lift height changes the factory shock geometry. This shock absorber uses a monotube construction and a digressive piston profile to respond to road inputs with stable control and predictable damping. The application-specific tuning helps maintain ride quality and handling on lifted Chevrolet and GMC platforms, including rear shock replacement for 1973-1991 Chevrolet Blazer, K5 Blazer, K10, K20, Suburban models, and GMC Jimmy, K1500, K2500, and Suburban variants.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Bilstein part number 24-187084 is also referenced by interchange numbers BE5-E656, F4-BE5-E656-H0, and RS77112.

Common Issues This Shock Can Address

• Excessive rear bounce after a suspension lift
• Reduced control over rough pavement and washboard roads
• Harsh or inconsistent rear ride quality
• Rear-end instability during cornering or braking
• Loss of damping performance from worn factory-style shocks

Installation Notes and Fitment

Fits 1987-1991 Chevrolet Blazer, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1989-1991 Chevrolet V1500 Suburban, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1989-1991 Chevrolet V2500 Suburban, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1975-1991 GMC Jimmy, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1987-1991 GMC V1500 Suburban, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1987-1991 GMC V2500 Suburban, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1987-1988 Chevrolet V10 Suburban, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1987-1988 Chevrolet V20 Suburban, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1975-1986 Chevrolet K10, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1973-1986 Chevrolet K10 Suburban, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1975-1986 Chevrolet K20, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1973-1986 Chevrolet K20 Suburban, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1975-1986 Chevrolet K5 Blazer, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1979-1986 GMC K1500, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1979-1986 GMC K1500 Suburban, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1979-1986 GMC K2500, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1979-1986 GMC K2500 Suburban, rear, for vehicles with 3-4" rear lift; B8 5100. Fits 1973-1974 Chevrolet Blazer, rear, 4WD; B8 5100. Fits 1973-1974 GMC Jimmy, rear, 4WD; B8 5100.

Before ordering, verify rear lift height, mount style, and shock length. This shock has a collapsed length of 16.14 inches and an extended length of 26.15 inches, so it should be matched to the suspension travel of the vehicle.

Quality Assurance

Bilstein B8 5100 shocks are application-tuned for the listed rear fitments and built with a monotube design for consistent damping performance. The zinc-plated finish and included black bellows boot add corrosion resistance and protection for everyday use on lifted Chevrolet and GMC trucks and SUVs.
