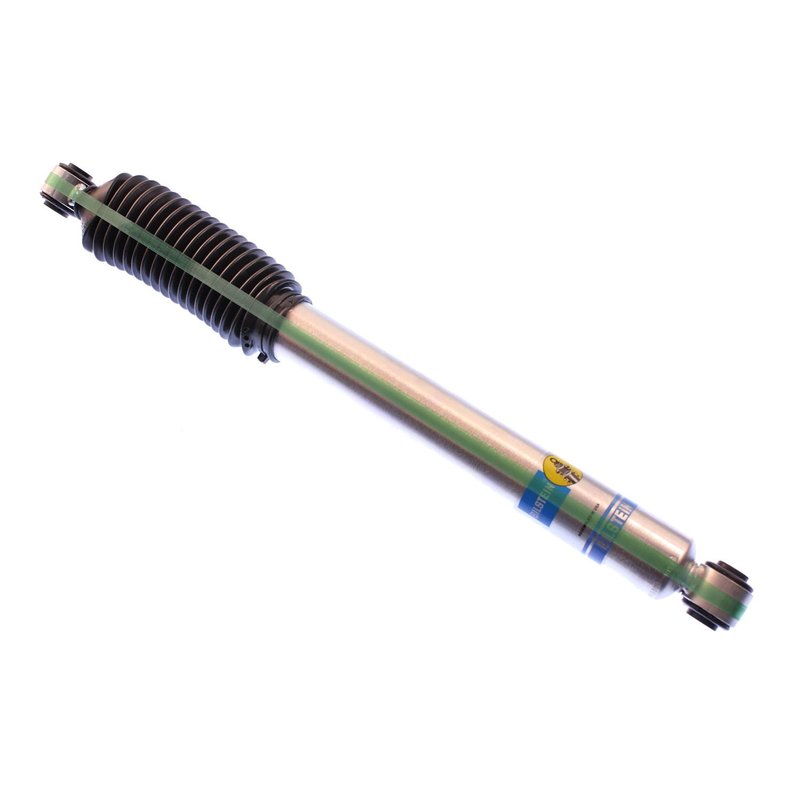

Bilstein 24-187374 Suspension Shock Absorber - Rear

Bilstein B8 5100 Shock Absorber Overview

The Bilstein B8 5100 shock absorber (part number 24-187374) is engineered for Dodge Ram 1500 and 1500 Classic models. Designed to enhance suspension performance, this monotube shock absorber offers reliable damping with a smooth body design and durable zinc plating.

• Non-adjustable damping for consistent performance
• Monotube internal design for improved heat dissipation
• 46mm smooth body diameter (non-coilover)
• Black bellows boot included for shaft protection
• Zinc plated finish for corrosion resistance
• Eye-type upper and lower mounts (14.1mm)
• Collapsed length: 16.75 inches (425.5 mm)
• Extended length: 26.73 inches (679.0 mm)

Detailed Features of the Bilstein B8 5100 Shock Absorber

The Bilstein B8 5100 series is designed specifically for trucks and SUVs requiring enhanced suspension control without adjustable damping. This shock absorber features a monotube internal design, which allows for better heat dissipation and consistent performance under demanding conditions. The smooth body design, with a 46mm diameter, is built to fit Dodge Ram 1500 and 1500 Classic models, providing a direct replacement that maintains factory ride height and handling characteristics.

The black bellows boot protects the piston rod from dirt and debris, extending the service life of the shock. Both upper and lower mounts use 14.1mm eyelets, ensuring secure attachment to the vehicle’s suspension components. The zinc plated finish offers corrosion resistance, making it suitable for various driving environments.

About the Bilstein B8 5100 Product Line

The B8 5100 series from Bilstein is tailored for drivers who need a durable, monotube shock absorber designed for lifted or stock height trucks. This product line focuses on delivering improved handling and ride quality for Dodge Ram 1500 and similar vehicles, without the complexity of adjustable damping. The B8 5100 shocks are engineered to work with factory springs and suspension setups, providing a balance between comfort and control.

Common Applications and Problem Solving

• Restores suspension control on Dodge Ram 1500 and 1500 Classic models
• Reduces excessive body roll and sway during cornering
• Improves ride comfort over rough or uneven terrain
• Addresses worn or leaking factory shock absorbers
• Maintains proper vehicle height and suspension geometry

Installation Notes and Tips

Installation of the Bilstein 24-187374 shock absorber requires basic suspension knowledge and tools. Ensure the vehicle is safely lifted and supported before removing old shocks. Verify that the eyelet mounts align correctly with the vehicle’s suspension points. The included black bellows boot should be inspected for proper positioning to protect the piston rod. No reservoir is included, so no additional plumbing is necessary.

Quality Assurance and Warranty

Bilstein shock absorbers are manufactured to meet strict quality standards, ensuring durability and consistent performance. The B8 5100 series undergoes rigorous testing to comply with OEM specifications. While specific warranty details for part number 24-187374 are not provided here, Bilstein typically offers a limited warranty covering defects in materials and workmanship.
