OE Quality
60-Day Returns

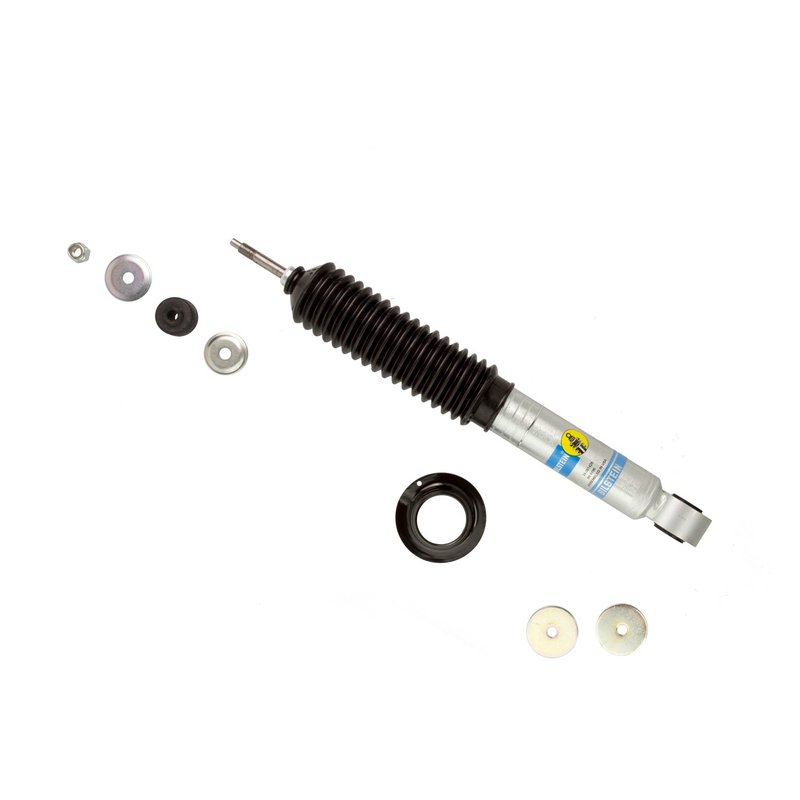

Bilstein 24-261425 Suspension Shock Absorber - Front
Bilstein B8 5100 Front Shock Overview
The Bilstein B8 5100 Ride Height Adjustable front shock absorber is built for trucks and SUVs with a front OE coilover-style suspension. It uses snap-ring grooves for selectable spring seat positions, giving you 0 to 3 inches of front lift with OE springs depending on application. This part number is 24-261425.
- Monotube shock absorber with a 46mm digressive piston
- Non-adjustable damping
- Snap-ring grooved body for ride height adjustment
- Zinc-plated finish for corrosion resistance
- Black bellows boot included
- Lower mount: eye 14.4mm; upper mount: stem
- Collapsed length: 13.23 in. / 336.0 mm
- Extended length: 18.35 in. / 466.0 mm
Ride Height Adjustable B8 5100 Series
The Bilstein B8 5100 (Ride Height Adjustable) line is made for front OE coilover applications where leveling and suspension control matter. Its monotube construction and self-adjusting deflective disc valve setup help maintain consistent damping response while increasing wheel travel and improving handling. For shoppers comparing suspension shock absorber options for a Toyota Tundra or Toyota Sequoia, 24-261425 provides a direct front suspension solution within the listed fitment.
This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
What This Shock Absorber Helps Address
- Front-end rake on Toyota Tundra and Toyota Sequoia models
- Reduced suspension travel after adding OE-spring lift height
- Excessive body motion from worn front shocks
- Uneven front ride height on coilover-equipped trucks and SUVs
- Handling loss caused by tired factory shock absorbers
Installation Notes and Fitment
Fits 2001-2007 Toyota Sequoia, front. Fits 2000-2006 Toyota Tundra, front. Confirm OE coilover-style front suspension and select the spring seat position that matches the desired lift height before installation. This part number is 24-261425, and it is listed for front-position applications only.
Quality Assurance
Bilstein B8 5100 shocks use a monotube design with a 46mm piston and zinc-plated body construction for consistent performance in demanding suspension service. The B8 5100 series is engineered for controlled damping response and repeatable ride-height adjustment in the specified applications.
| Brand | Bilstein |
|---|---|
| Part Number | 24-261425 |
| Position | B8 5100 (Ride Height Adjustable), Front |
| Adjustable Damping | Non-adjustable |
| Body Design | Snap ring grooved body (coilover) |
| Body Diameter (ID) | 46mm |
| Boot Included | Black bellows |
| Collapsed Length (IN) | 13.23 |
| Collapsed Length (MM) | 336.0 |
| Extended Length (IN) | 18.35 |
| Extended Length (MM) | 466.0 |
| Finish | Zinc plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.4mm |
| Reservoir | No |
| Series | B8 5100 (ride height adjustable) |
| Title | Bilstein shock absorbers |
| Upper Mount Type | Stem |
This part fits 14 vehicles. Search below:
| Year | Make | Model | Submodel | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Toyota | Sequoia | SR5 | RWD | Front | Provides 0-2.4" Front Lift; B8 5100 (Ride Height Adjustable) | |
| 2006 | Toyota | Sequoia | SR5 | RWD | Front | Provides 0-2.4" Front Lift; B8 5100 (Ride Height Adjustable) | |
| 2006 | Toyota | Tundra | SR5 | Extended Cab Pickup | RWD | Front | Provides 0-2.65" Front Lift; B8 5100 (Ride Height Adjustable) |
| 2005 | Toyota | Sequoia | SR5 | RWD | Front | Provides 0-2.4" Front Lift; B8 5100 (Ride Height Adjustable) | |
| 2005 | Toyota | Tundra | SR5 | Extended Cab Pickup | RWD | Front | Provides 0-2.65" Front Lift; B8 5100 (Ride Height Adjustable) |
| 2004 | Toyota | Sequoia | SR5 | RWD | Front | Provides 0-2.4" Front Lift; B8 5100 (Ride Height Adjustable) | |
| 2004 | Toyota | Tundra | SR5 | Extended Cab Pickup | RWD | Front | Provides 0-2.65" Front Lift; B8 5100 (Ride Height Adjustable) |
| 2003 | Toyota | Sequoia | SR5 | RWD | Front | Provides 0-2.4" Front Lift; B8 5100 (Ride Height Adjustable) | |
| 2003 | Toyota | Tundra | SR5 | Extended Cab Pickup | RWD | Front | Provides 0-2.65" Front Lift; B8 5100 (Ride Height Adjustable) |
| 2002 | Toyota | Sequoia | SR5 | RWD | Front | Provides 0-2.4" Front Lift; B8 5100 (Ride Height Adjustable) | |
| 2002 | Toyota | Tundra | SR5 | Extended Cab Pickup | RWD | Front | Provides 0-2.65" Front Lift; B8 5100 (Ride Height Adjustable) |
| 2001 | Toyota | Sequoia | SR5 | RWD | Front | Provides 0-2.4" Front Lift; B8 5100 (Ride Height Adjustable) | |
| 2001 | Toyota | Tundra | SR5 | Extended Cab Pickup | RWD | Front | Provides 0-2.65" Front Lift; B8 5100 (Ride Height Adjustable) |
| 2000 | Toyota | Tundra | SR5 | Extended Cab Pickup | RWD | Front | Provides 0-2.65" Front Lift; B8 5100 (Ride Height Adjustable) |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
