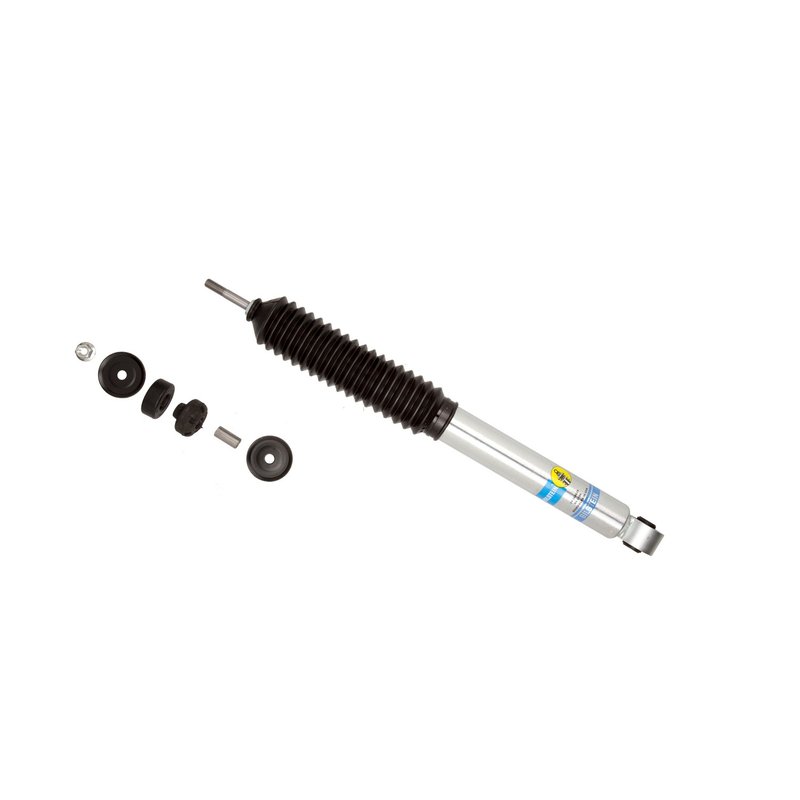

Bilstein 24-268639 Suspension Shock Absorber - Front

Overview of Bilstein B8 5100 Shock Absorber for Ram 2500

The Bilstein B8 5100 shock absorber (part number 24-268639) is designed specifically for the Ram 2500, providing reliable suspension performance. This non-adjustable monotube shock absorber features a smooth body design and is engineered to maintain consistent damping characteristics for improved ride quality.

• Non-adjustable damping for consistent performance
• Monotube internal design for efficient heat dissipation
• 46mm smooth body diameter (non-coilover)
• Black bellows boot included for protection
• Zinc plated finish for corrosion resistance
• Eye lower mount (14.1mm) and stem upper mount
• Collapsed length: 15.03 inches (382 mm)
• Extended length: 22.63 inches (575 mm)

Detailed Features of the Bilstein B8 5100 Shock Absorber

The Bilstein B8 5100 series is engineered to meet the demands of trucks like the Ram 2500 that require durable and consistent suspension components. This shock absorber uses a monotube design, which allows for better heat dissipation and improved performance under heavy loads or rough terrain. The smooth body design without coilover threads ensures a clean installation and compatibility with factory springs. The black bellows boot protects the piston rod from dirt and debris, extending the service life of the shock. With a zinc plated finish, this shock absorber resists corrosion, making it suitable for various driving conditions.

Applications and Problem Solving

• Restores suspension control and stability on Ram 2500 trucks
• Reduces excessive bouncing and body roll during off-road or heavy-duty use
• Improves ride comfort by maintaining consistent damping
• Protects suspension components from premature wear due to dirt and corrosion
• Replaces worn or damaged factory shocks to maintain vehicle handling

Installation Notes and Tips

When installing the Bilstein B8 5100 shock absorber (24-268639) on a Ram 2500, ensure the vehicle is securely lifted and supported. The shock features an eye lower mount and stem upper mount, which should align with the factory mounting points. No adjustable damping settings are required, simplifying installation. Inspect mounting hardware and bushings for wear and replace if necessary to ensure proper fitment and performance.

Quality Assurance and Warranty

Bilstein manufactures the B8 5100 shock absorbers to meet strict quality standards, using durable materials and advanced engineering. The zinc plated finish and protective boot contribute to long service life. While specific warranty details are not provided here, Bilstein typically offers coverage against manufacturing defects. Refer to official Bilstein documentation for exact warranty terms.
