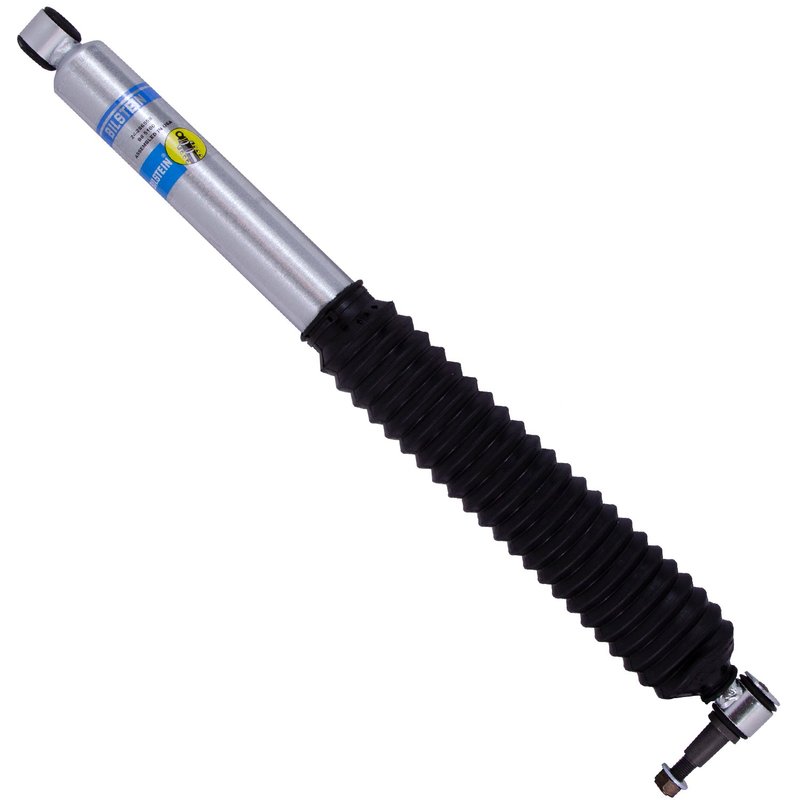

Bilstein 24-286558 Steering Damper - Front

Bilstein B8 5100 Steering Damper Overview

The Bilstein B8 5100 (Steering Damper) part number 24-286558 is engineered for Ford F-250 Super Duty and F-350 Super Duty trucks. Designed to improve steering control and reduce vibrations, this steering damper is a reliable component for heavy-duty applications.

• Monotube internal design for consistent damping performance
• 46mm inner diameter smooth body (non-coilover) construction
• Black bellows boot included for protection against debris
• Collapsed length: 16.93 inches (430 mm)
• Extended length: 26.50 inches (673 mm)
• Zinc plated finish for corrosion resistance
• Upper mount type: Eye 12mm
• Lower mount type: Cantilever
• Designed specifically as a steering damper without reservoir

About the B8 5100 (Steering Damper) Product Line

The B8 5100 (Steering Damper) series by Bilstein focuses on delivering precise steering control and improved handling for trucks and off-road vehicles. This product line features monotube technology and robust construction to withstand demanding driving conditions. The 24-286558 steering damper is part of this line, offering a smooth body design and durable components tailored for Ford Super Duty trucks.

Product Details and Specifications

This Bilstein steering damper features a monotube internal design that provides consistent damping force, helping to stabilize steering inputs and reduce wheel vibrations. The 46mm inner diameter smooth body is designed for non-coilover applications, ensuring compatibility with the specified Ford models. The damper includes a black bellows boot to protect the shaft from dirt and debris, extending the service life of the component. With a zinc plated finish, the damper resists corrosion, making it suitable for harsh environments. The upper mount uses a 12mm eye, while the lower mount is a cantilever type, designed to fit the steering system of Ford F-250 and F-350 Super Duty trucks precisely.

Common Applications and Problem Solving

• Reduces steering wheel vibrations and shimmy
• Improves handling stability on rough or uneven terrain
• Minimizes wear on steering components by absorbing shocks
• Enhances driver control during towing or heavy load conditions
• Prevents excessive steering feedback from off-road obstacles

Installation Notes and Tips

Ensure the steering damper is installed according to the vehicle manufacturer’s specifications for the Ford F-250 Super Duty and F-350 Super Duty. Verify the collapsed and extended lengths (16.93 inches collapsed, 26.50 inches extended) to confirm proper fitment. The upper mount requires a 12mm eye connection, and the lower mount uses a cantilever style. Avoid forcing the damper beyond its designed stroke to prevent damage. Regular inspection of the black bellows boot is recommended to maintain protection against contaminants.

Quality Assurance and Warranty

Bilstein manufactures the B8 5100 (Steering Damper) with high-quality materials and precision engineering to meet OEM standards. The zinc plated finish adds corrosion resistance for extended durability. While specific warranty details are not provided here, Bilstein products typically come with a manufacturer’s warranty covering defects in materials and workmanship. Consult the product documentation or manufacturer for exact warranty terms.
