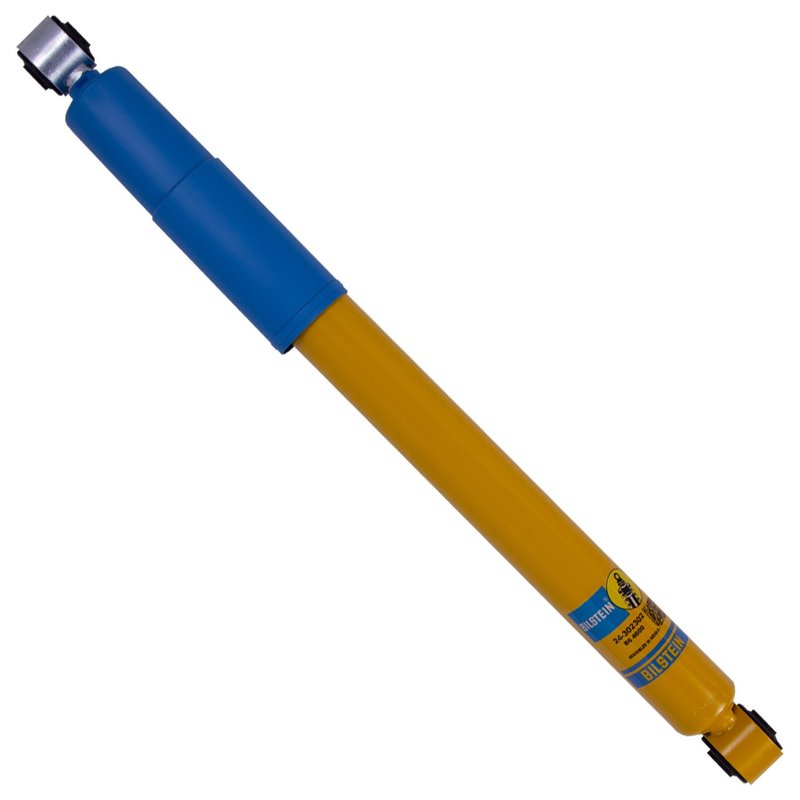

Bilstein 24-302302 Suspension Shock Absorber - Rear

Overview

Bilstein B6 4600 shock absorber 24-302302 is a direct-fit upgrade for stock-height heavy-duty trucks and SUVs. It is engineered for consistent damping, improved control, and a more composed ride on changing road surfaces.

Key Features

• Monotube internal design for consistent, fade-resistant performance.
• Velocity-sensitive digressive piston reacts to changing road conditions.
• Non-adjustable shock absorber tuned for the specific application.
• Smooth-body construction with a yellow painted finish.
• Eye-to-eye mounting with 14.4 mm upper and lower mounts.
• Blue straight boot included for added protection.

Detailed Description

The Bilstein B6 4600 line is built as a direct-fit OE shock absorber upgrade for stock-height light trucks and SUVs. This shock absorber uses a monotube layout and a digressive piston design to help maintain stable damping response, which supports better ride quality, handling, and comfort. Part number 24-302302 is tuned for its specific application and is a strong match for Ram 3500 suspension service where consistent rear damping is needed. If you are replacing worn rear shocks on a Ram 3500, 24-302302 provides an OE-style fit with Bilstein’s application-specific tuning.

Common Issues It Can Address

• Excessive bouncing after bumps or dips.
• Reduced rear-end control under load.
• Harsh or inconsistent ride response.
• Worn shock absorber damping performance.
• Loss of stability on uneven pavement.

Installation Notes and Tips

Fits 2019-2026 Ram 3500, rear, with rear air leveling suspension. Confirm mount style, suspension configuration, and application notes before installation. This shock absorber uses eye mounts at both ends and is intended for stock-height use. Part number 24-302302 should be matched to the listed fitment and suspension setup for proper installation.

Quality Assurance

Bilstein B6 4600 shocks are application-tuned for specific vehicle fitments and built with a monotube design for consistent performance. This part cross-references Ram OE numbers (e.g., 68446974AC, 68449366AC) for the same application.
