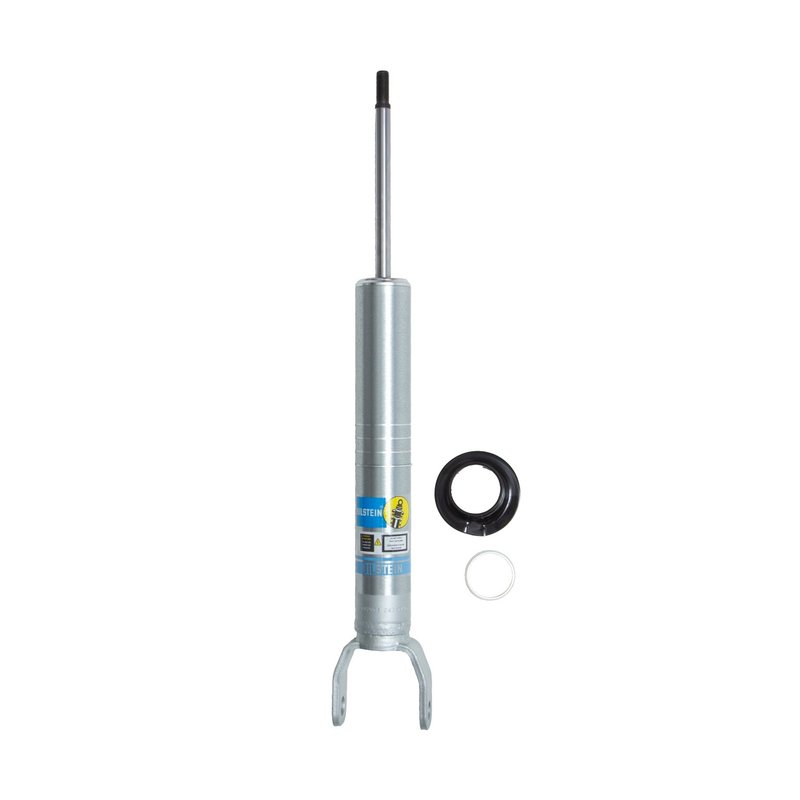

Bilstein 24-317795 Suspension Shock Absorber - Front
| Brand | Bilstein 24-317795 |
|---|---|
| Position | Front |
| Adjustable Damping | Non-adjustable |
| Body Design | Snap ring grooved body (coilover) |
| Boot Included | No |
| Collapsed Length (IN) | 15.18 |
| Collapsed Length (MM) | 385.5 |
| Extended Length (IN) | 21.29 |
| Extended Length (MM) | 540.7 |
| Finish | Zinc plated |
| Internal Design | Monotube |
| Lower Mount Type | Clevis |
| PartType | Shocks / struts |
| Piston Diameter | 46mm |
| Reservoir | No |
| Segment | Light truck |
| Series | B8 5100 (ride height adjustable) |
| Shaft Diameter | 14mm |
| Spring Seat Included | Yes |
| Stroke/Travel Length (IN) | 6.11 |
| Stroke/Travel Length (mm) | 155.2 |
| Title | Bilstein shock absorbers |
| Upper Mount Type | Stem |
| Product line | B8 5100 (Ride Height Adjustable) |
| Fits | Dodge · 3 vehicles |
Ride height adjustable. Multiple snap-ring grooves let you set spring seat position for 0-3 inches of lift.
Monotube design. A 46mm digressive piston and self-adjusting valve help improve handling and wheel travel.
Zinc plated finish. Helps resist corrosion for long-lasting performance.
Cross-references Bilstein 24-186988, BE5-E523 and F4-BE5-E523-H0 for the same application. See all 3.
Bilstein B8 5100 Front Shock for Ram 1500
The Bilstein B8 5100 Ride Height Adjustable shock absorber is built for trucks and SUVs with a front OE coilover-style suspension. For 2006-2008 Dodge Ram 1500 front applications, it uses snap-ring grooves to set the spring seat at different positions and deliver 0-3 inches of front lift with OE springs, depending on application.
- Bilstein B8 5100 Ride Height Adjustable series
- Front shock absorber for OE coilover-style suspension
- Snap-ring grooved body for multiple spring seat positions
- Monotube internal design with 46mm digressive piston
- Self-adjusting deflective disc valve setting
- Zinc-plated finish
- Non-adjustable damping
- Lower mount type: clevis; upper mount type: stem
- Spring seat included
- Part number 24-317795
Product Details
The Bilstein B8 5100 line is focused on ride-height adjustment for light truck suspension setups that use an OE coilover arrangement. This shock absorber is engineered to increase wheel travel and improve handling response while giving the front of the vehicle a more level stance. Fits 2006-2007 Dodge Ram 1500, front, and fits 2008 Dodge Ram 1500, front, excluding Mega Cab. Part number 24-317795 is also referenced in Bilstein applications as 24-186988.
For Ram 1500 owners looking for a front suspension shock absorber that supports OE spring reuse and controlled lift adjustment, the B8 5100 provides a direct solution within the listed applications. The monotube design and 46mm piston are key to consistent damping response in light truck use.
Common Uses
- Correcting a nose-down stance on a Dodge Ram 1500
- Replacing a worn front shock absorber on OE coilover suspension
- Adding front lift while retaining OE springs
- Improving front-end control and wheel travel
- Restoring ride quality after shock wear or sagging suspension components
Installation Notes
Verify front suspension configuration before ordering. This part fits 2006-2007 Dodge Ram 1500, front, and 2008 Dodge Ram 1500, front, excluding Mega Cab. Set the spring seat position according to the desired lift height and the specific vehicle application. Confirm clearance, alignment, and ride height after installation.
Quality Assurance
Bilstein B8 5100 shocks use a monotube construction with a zinc-plated finish for durability in light truck service. The 46mm digressive piston and self-adjusting valve design are part of the B8 5100 Ride Height Adjustable platform for controlled suspension performance.
| Year | Make | Model | Submodel | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Dodge | Ram 1500 | SXT | Standard Cab Pickup | 4WD | Front | Excludes Mega Cab; B8 5100 (Ride Height Adjustable) |
| 2007 | Dodge | Ram 1500 | TRX4 | — | — | Front | Provides 0-2" Front Lift; B8 5100 (Ride Height Adjustable) |
| 2006 | Dodge | Ram 1500 | TRX4 | — | — | Front | Provides 0-2" Front Lift; B8 5100 (Ride Height Adjustable) |
