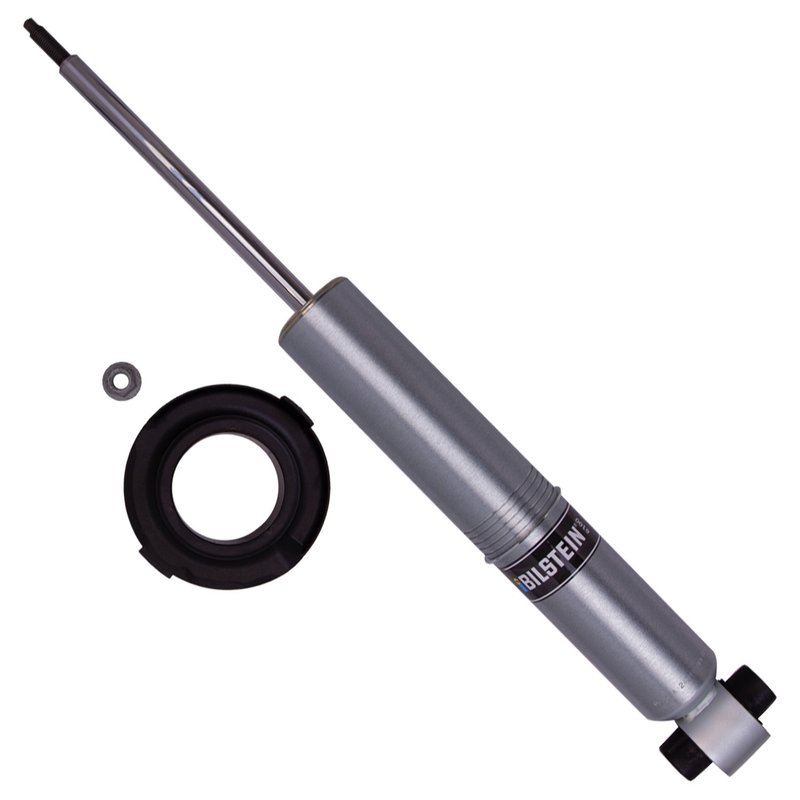

Bilstein 24-318600 Suspension Shock Absorber - Rear

Bilstein B8 6100 Shock Absorber for Ford Bronco

The Bilstein B8 6100 (Ride Height Adjustable) shock absorber, part number 24-318600, is engineered for Ford Bronco owners seeking reliable suspension performance. Designed with a monotube internal structure and a coilover-style snap ring grooved body, this shock absorber offers precise ride height adjustment without compromising durability.

• Monotube internal design for consistent damping
• Snap ring grooved body compatible with coilover springs
• Ride height adjustable with included spring seat
• Zinc plated finish for corrosion resistance
• Lower mount eye (20.2mm) and upper stem mount
• Stroke length of 4.15 inches (105.4 mm)
• Collapsed length: 17.11 inches (434.6 mm), extended length: 25.56 inches (649.3 mm)
• 60mm piston diameter and 18mm shaft diameter
• Non-adjustable damping for consistent performance

About the B8 6100 (Ride Height Adjustable) Product Line

The B8 6100 (Ride Height Adjustable) series by Bilstein is designed specifically for light trucks and SUVs like the Ford Bronco. This product line features monotube shocks with ride height adjustability, allowing users to fine-tune their vehicle’s stance and suspension travel. The coilover-compatible snap ring grooved body and included spring seat make it suitable for custom suspension setups, providing enhanced control over ride height without sacrificing shock absorber integrity.

Product Details and Specifications

This Bilstein shock absorber (part number 24-318600) features a monotube design that improves heat dissipation and maintains consistent damping performance under demanding conditions. The zinc plated finish protects the shock body from corrosion, extending service life. With a piston diameter of 60mm and a shaft diameter of 18mm, this shock is built to handle the weight and dynamics of the Ford Bronco. The lower mount uses a 20.2mm eye, while the upper mount is a stem type, ensuring proper fitment and secure installation. The shock’s stroke length of 4.15 inches allows for effective suspension travel, improving ride quality and handling.

Applications and Problem Solving

• Restores proper ride height and suspension geometry on lifted or modified Ford Broncos
• Improves handling and stability on uneven terrain
• Reduces bottoming out and harsh impacts during off-road driving
• Replaces worn or damaged factory shocks to maintain vehicle safety
• Supports coilover spring setups for customized suspension tuning

Installation Notes and Tips

Installation of the Bilstein 24-318600 shock absorber requires compatibility with the Ford Bronco’s suspension mounts. Ensure the coilover spring seat is properly positioned on the snap ring grooved body before assembly. Since damping is non-adjustable, verify ride height settings prior to final tightening. Use appropriate tools to avoid damage to the zinc plated finish and mounting hardware. Professional installation is recommended for optimal performance and safety.

Quality Assurance and Warranty

Bilstein shock absorbers are manufactured to meet strict quality standards for durability and performance. The B8 6100 (Ride Height Adjustable) series undergoes rigorous testing to ensure consistent damping and corrosion resistance. While specific warranty details for part number 24-318600 are not provided here, Bilstein typically offers limited warranties covering defects in materials and workmanship. Consult official Bilstein documentation or authorized dealers for exact warranty terms.
