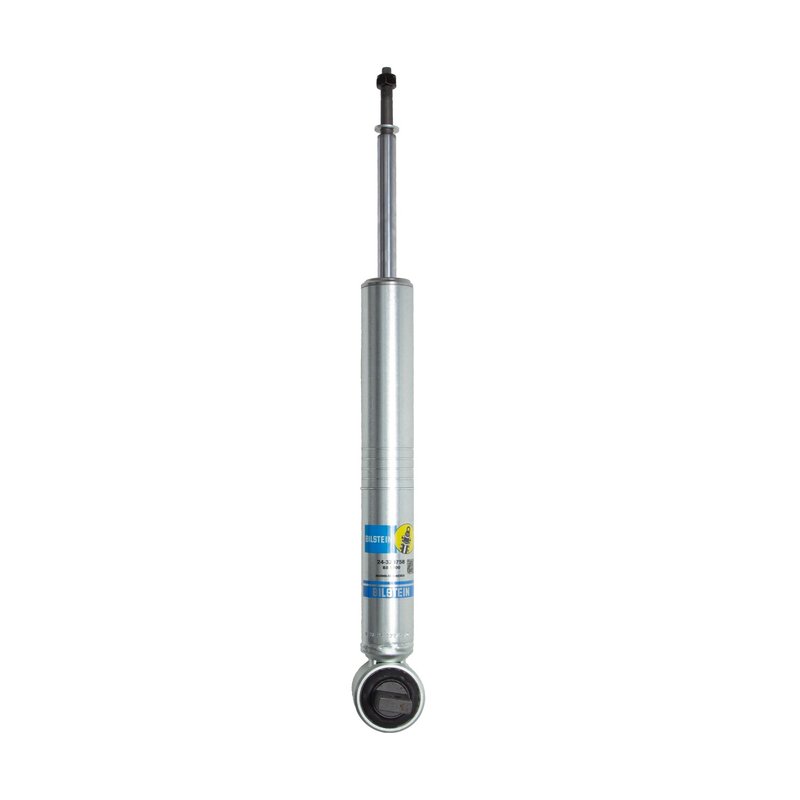

Bilstein 24-323758 Suspension Shock Absorber - Front

Overview of Bilstein B8 5100 Shock Absorber for Ford F-150

The Bilstein B8 5100 (Ride Height Adjustable) shock absorber, part number 24-323758, is engineered specifically for Ford F-150 trucks. Designed to provide reliable suspension performance, this monotube shock absorber offers consistent damping and durability for light truck applications.

• Monotube internal design for improved heat dissipation and consistent performance
• Snap ring grooved body compatible with coilover setups
• Non-adjustable damping for straightforward, reliable operation
• Zinc plated finish to resist corrosion
• Collapsed length: 15.63 inches (397 mm); Extended length: 21.00 inches (533.5 mm)
• Stroke/travel length of 5.37 inches (136.4 mm)
• 46mm piston diameter and 18mm shaft diameter for robust construction
• Upper mount type: stem; Lower mount type: crossbar

Detailed Product Description

The Bilstein B8 5100 (Ride Height Adjustable) shock absorber is designed for the Ford F-150, providing a monotube internal design that enhances heat dissipation and maintains consistent damping performance under various driving conditions. Its snap ring grooved body allows compatibility with coilover springs, although this specific part does not include a spring seat or boot. The shock absorber features a zinc plated finish to protect against corrosion, extending the service life of the component. With a collapsed length of 15.63 inches and an extended length of 21.00 inches, it offers a stroke length of 5.37 inches, suitable for maintaining proper suspension travel and ride height adjustments. The piston diameter of 46mm and shaft diameter of 18mm contribute to the shock's durability and ability to handle the demands of light truck use.

About the B8 5100 (Ride Height Adjustable) Product Line

The B8 5100 (Ride Height Adjustable) series from Bilstein is designed to provide enhanced suspension performance for light trucks like the Ford F-150. This product line features monotube shock absorbers with ride height adjustability, allowing for fine-tuning of vehicle stance and suspension travel. While the damping is non-adjustable, the design focuses on durability and consistent performance, making it suitable for drivers seeking reliable suspension upgrades without complex adjustments.

Common Applications and Problem Solving

• Restores proper suspension travel and ride height on lifted or leveled Ford F-150 trucks
• Improves handling and stability over stock shocks in light truck applications
• Reduces bottoming out and harsh impacts on rough terrain
• Addresses worn or damaged factory shocks causing poor ride quality
• Maintains consistent damping performance under load and varying conditions

Installation Notes and Tips

Installation of the Bilstein 24-323758 shock absorber requires compatibility with the Ford F-150 suspension system and coilover spring setups due to its snap ring grooved body design. Ensure the upper stem and lower crossbar mounts align correctly with the vehicle's mounting points. Since this shock absorber does not include a boot or spring seat, verify that existing components are in good condition or replaced as needed. Proper torque specifications should be followed to secure the shock absorber safely.

Quality Assurance and Warranty

Bilstein shock absorbers are manufactured to meet strict quality standards for durability and performance. The B8 5100 (Ride Height Adjustable) shock absorber undergoes rigorous testing to ensure consistent damping and corrosion resistance. Warranty coverage details should be confirmed with the manufacturer or authorized distributor, as they may vary by region and application.
