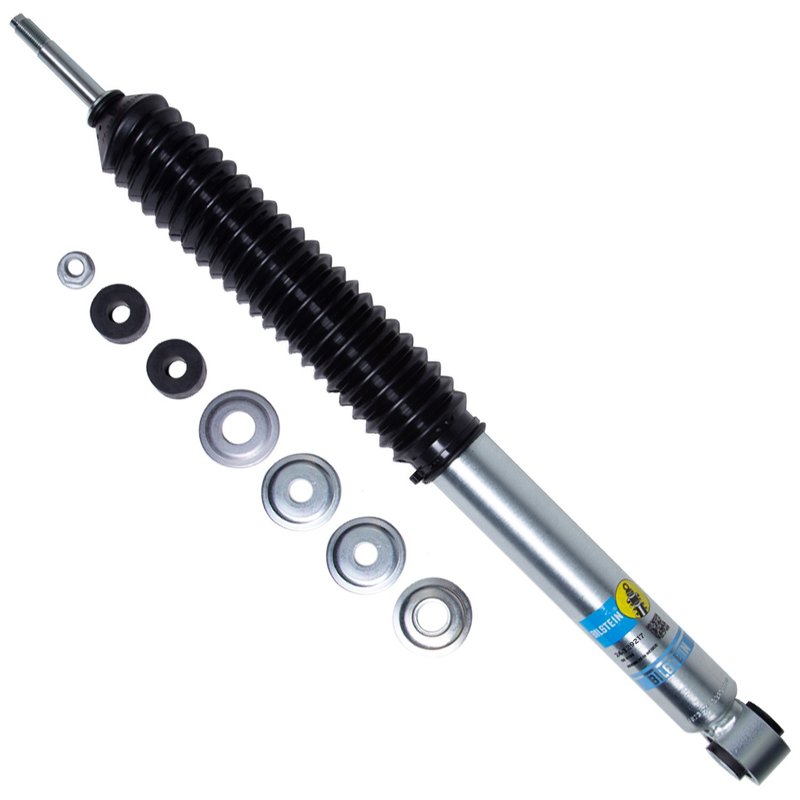

Bilstein 24-329217 Suspension Shock Absorber - Rear

Overview

Bilstein B8 5100 shock absorber 24-329217 is a direct-fit suspension upgrade for lifted trucks and SUVs. It uses a monotube design and a velocity-sensitive digressive piston to deliver consistent damping as road conditions change.

Compatible with Toyota Tundra rear applications without rear air suspension, this shock is tuned for the specific fitment listed below. The B8 5100 line is built for drivers who want more controlled ride quality, handling, and comfort from a light truck suspension setup.

Key Features

• Monotube internal design for consistent fade-resistant performance
• Velocity-sensitive digressive piston reacts to changing road inputs
• Non-adjustable damping for a fixed, application-specific setup
• Zinc-plated finish for added corrosion resistance
• Black bellows boot included for added shaft protection
• Lower eye mount and upper stem mount configuration
• Spring seat included for the listed application

Detailed Description

The Bilstein B8 5100 series is engineered as a direct-fit shock absorber for lifted light truck applications. Part number 24-329217 features a 46 mm piston, 14 mm shaft, smooth-body construction, and a monotube layout that helps maintain stable damping performance under repeated use. The shock is tuned for the listed Toyota Tundra rear fitment, without rear air suspension, and is part of Bilstein’s B8 5100 product line for truck suspension applications.

This shock absorber is a practical choice when replacing worn suspension components on a Toyota Tundra and when restoring controlled ride behavior on a lifted setup. The application-specific tuning helps maintain predictable response over uneven pavement, load changes, and everyday driving.

What It Helps Address

• Excessive bouncing after bumps or dips
• Reduced control from worn shock absorbers
• Harsh or inconsistent ride response
• Handling instability on lifted suspension setups
• Loss of damping performance over time

Installation Notes

Fits 2022-2026 Toyota Tundra, rear, without rear air suspension. Verify the mount style, collapsed length, and extended length against the existing shock before installation. Part number 24-329217 should be matched to the listed application only.

Quality Assurance

Bilstein B8 5100 shocks are tuned for specific applications and built with a monotube design for consistent performance. Part number 24-329217 cross-references 24329217 for the same application.
