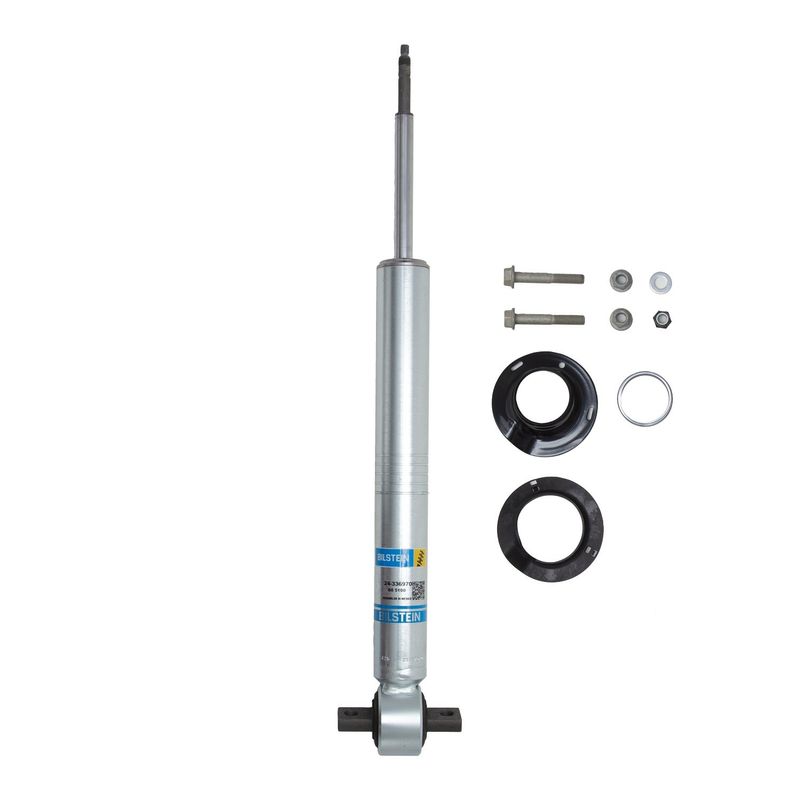

Bilstein 24-336970 Suspension Shock Absorber - Front

Overview

The Bilstein B8 5100 Ride Height Adjustable shock absorber is built for trucks and SUVs with a front OE coilover-style suspension. It uses snap-ring grooves for multiple spring seat positions, giving you a practical way to level the vehicle while keeping OE springs in place. Part number 24-336970 is a direct fit for select Ford F-150 applications.

Key Features

• Ride height adjustable design with multiple spring seat positions
• Monotube construction for consistent damping response
• 46mm digressive piston with self-adjusting valve setting
• Zinc-plated finish for added corrosion resistance
• Non-adjustable damping with a coilover-style body
• Spring seat included for OE spring applications

Detailed Description

Bilstein B8 5100 shock absorbers are engineered for front coilover-style suspension setups that need controlled lift and improved handling. The snap-ring grooved body allows the spring seat to be positioned for 0-3 inches of front lift, depending on application, while the monotube design and 46mm piston help maintain stable performance through changing road conditions. On compatible Ford F-150 models, part number 24-336970 provides a fitment-focused solution for leveling and suspension correction without changing the OE spring setup.

The B8 5100 product line is Bilstein’s ride height adjustable shock series for light truck applications. It is aimed at drivers who want a suspension component that can be set up for front lift while preserving the factory-style coilover layout. This makes the Bilstein B8 5100 a relevant choice for Ford F-150 owners looking for a front shock absorber with adjustable spring seat positioning.

Common Uses

• Correcting a nose-down stance on a truck or SUV
• Replacing a worn front shock absorber with a coilover-style unit
• Improving wheel travel and handling response
• Setting front ride height with OE springs
• Addressing suspension sag or uneven front ride height

Installation Notes

Fits 2015-2020 Ford F-150, front. Verify OE coilover-style suspension layout, mount style, and desired spring seat position before installation. This part cross-references Monroe Shocks & Struts (e.g., 985-62-009, RS77836) for the same application.

Quality Assurance

Bilstein designs the B8 5100 series for light truck suspension use with monotube construction and a digressive piston profile for controlled response. Part number 24-336970 is built to match the intended front suspension application for select Ford F-150 models.
