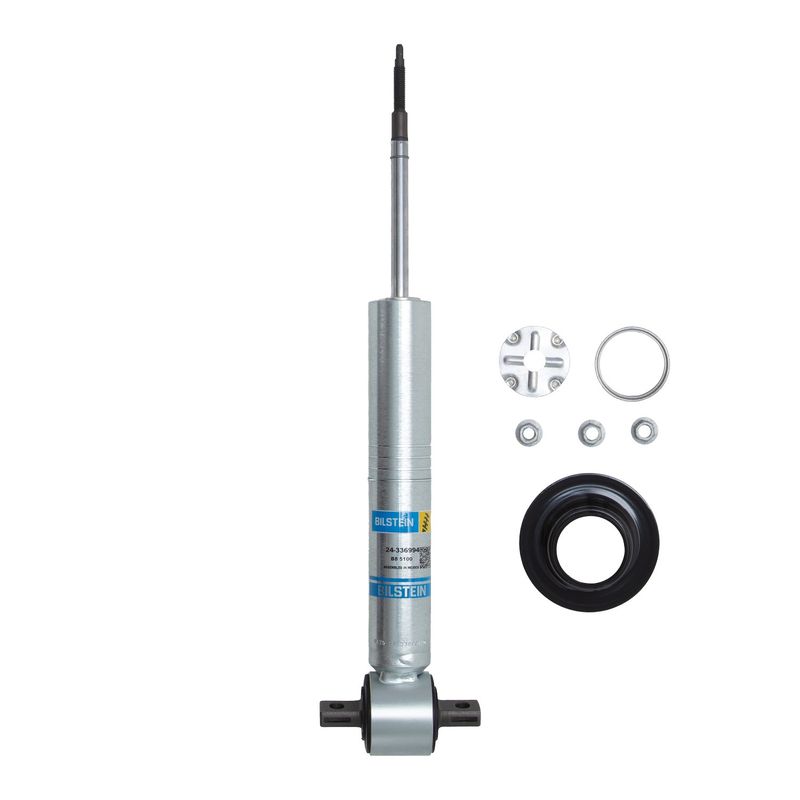

Bilstein 24-336994 Suspension Shock Absorber - Front
| Brand | Bilstein 24-336994 |
|---|---|
| Position | Front |
| Adjustable Damping | Non-adjustable |
| Body Design | Snap ring grooved body (coilover) |
| Boot Included | No |
| Collapsed Length (IN) | 15.00 |
| Collapsed Length (MM) | 381.0 |
| Extended Length (IN) | 18.89 |
| Extended Length (MM) | 479.7 |
| Finish | Zinc plated |
| Internal Design | Monotube |
| Lower Mount Type | Bar pin |
| PartType | Shocks / struts |
| Piston Diameter | 46mm |
| Reservoir | No |
| Segment | Light truck |
| Series | B8 5100 (ride height adjustable) |
| Shaft Diameter | 14mm |
| Spring Seat Included | Yes |
| Stroke/Travel Length (IN) | 3.89 |
| Stroke/Travel Length (mm) | 98.8 |
| Title | Bilstein shock absorbers |
| Upper Mount Type | Stem |
| Product line | B8 5100 (Ride Height Adjustable) |
| Fits | Chevrolet and GMC · 12 vehicles |
Ride height adjustable. Multiple spring seat positions help set front lift with OE springs.
Monotube construction. 46mm digressive piston and valve setting promote controlled suspension response.
OE coilover fitment. Built for light truck and SUV suspension systems with a stem upper mount.
Cross-references 24-251976 and RS77830 for the same application. See all 2.
Overview
The Bilstein B8 5100 Ride Height Adjustable shock absorber is built for light truck and SUV applications with a front OE coilover-style suspension. It uses snap-ring grooves for spring seat adjustment, giving you a practical way to level the vehicle and restore controlled suspension movement. Part number 24-336994 is a direct fit for select Chevrolet Tahoe and GMC Yukon applications.
Key Features
- Ride height adjustable design with multiple spring seat positions
- Monotube construction with a 46mm digressive piston
- Non-adjustable damping for consistent operation
- Zinc-plated finish for added corrosion resistance
- Bar pin lower mount and stem upper mount configuration
- Spring seat included for OE coilover-style suspension use
Detailed Description
Bilstein’s B8 5100 Ride Height Adjustable line is engineered for trucks and SUVs that use a front OE coilover-style suspension. This shock absorber uses a snap-ring grooved body to set the spring seat at different positions, allowing 0-3 inches of front lift with OE springs depending on application. The monotube design, 46mm piston, and self-adjusting deflective disc valve setting are intended to improve wheel travel and handling response. Part number 24-336994 is a fitment-specific suspension shock absorber for 2015-2020 Chevrolet Tahoe and 2015-2020 GMC Yukon front applications without the Police Package.
Common Uses
- Correcting front ride height on OE coilover-style suspension systems
- Replacing worn shock absorbers that reduce handling control
- Improving suspension response after lift or leveling changes
- Addressing excessive bounce, nose dive, or unsettled ride quality
Installation Notes
Fits 2015-2020 Chevrolet Tahoe, front, without Police Package. Fits 2015-2020 GMC Yukon, front, without Police Package. Verify mount style, spring seat setup, and application notes before installation. This part cross-references Monroe Shocks & Struts (e.g., 24-251976, RS77830) for the same application.
Quality Assurance
Bilstein B8 5100 shocks are part of a ride-height-adjustable product line designed around monotube construction and OE-style suspension requirements. Part number 24-336994 follows Bilstein’s application-specific engineering approach for consistent fit and function.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Chevrolet | Tahoe | LT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2020 | GMC | Yukon | SLT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2019 | Chevrolet | Tahoe | LT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2019 | GMC | Yukon | SLT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2018 | Chevrolet | Tahoe | LT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2018 | GMC | Yukon | SLT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2017 | Chevrolet | Tahoe | LT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2017 | GMC | Yukon | SLT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2016 | Chevrolet | Tahoe | LT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2016 | GMC | Yukon | SLT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2015 | Chevrolet | Tahoe | LT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
| 2015 | GMC | Yukon | SLT | Front | Without Police Package; B8 5100 (Ride Height Adjustable) |
