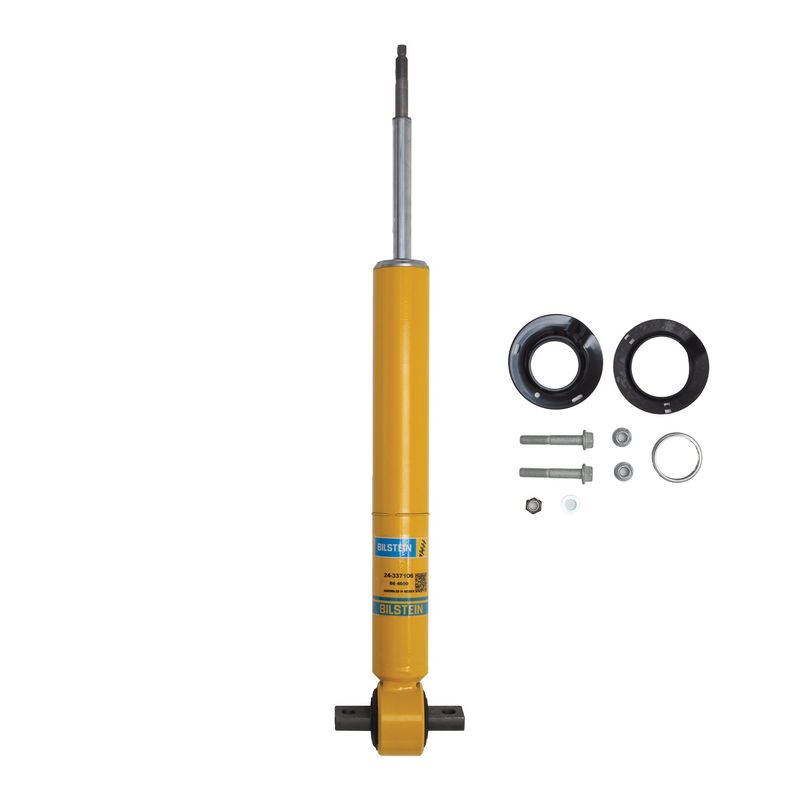

Bilstein 24-337106 Suspension Shock Absorber - Front
| Brand | Bilstein 24-337106 |
|---|---|
| Position | Front |
| Adjustable Damping | Non-adjustable |
| Body Design | Snap ring grooved body (coilover) |
| Boot Included | No |
| Collapsed Length (IN) | 16.04 |
| Collapsed Length (mm) | 407.6 |
| Extended Length (IN) | 21.15 |
| Extended Length (mm) | 537.1 |
| Finish | Yellow paint |
| Internal Design | Monotube |
| Lower Mount Type | Crossbar |
| PartType | Shocks / struts |
| Piston Diameter | 46mm |
| Reservoir | No |
| Segment | Light truck |
| Series | B6 4600 |
| Shaft Diameter | 18mm |
| Spring Seat Included | Yes |
| Title | Bilstein shock absorbers |
| Upper Mount Type | Stem |
| Product line | B6 4600 |
| Fits | Ford · 1 vehicle |
Direct fit upgrade. Replaces OE shock absorbers with no modifications needed.
Monotube design. Delivers consistent, fade-free performance as road conditions change.
Velocity-sensitive piston. Responds quickly for improved ride quality, handling, and comfort.
Cross-references Bilstein 24-286497, EL3Z 18124-A and EL3Z 18124-B for the same application. See all 6.
Bilstein B6 4600 Front Shock for 2014 F-150
The Bilstein B6 4600 shock absorber is a direct-fit upgrade for stock-height light trucks and SUVs. This front shock for the 2014 Ford F-150 uses a monotube design and a velocity-sensitive digressive piston to deliver consistent damping across changing road conditions.
Built for the front suspension of the 2014 Ford F-150, part number 24-337106 is tuned for this specific application to improve ride control, handling response, and comfort without changing the vehicle’s stock ride height.
Key Features
- Direct-fit front shock absorber for the 2014 Ford F-150
- Bilstein B6 4600 series, part number 24-337106
- Monotube internal design for fade-resistant performance
- 46mm piston diameter with 18mm shaft diameter
- Non-adjustable damping for consistent operation
- Yellow painted finish
- Spring seat included; boot not included
- Lower mount type: crossbar; upper mount type: stem
Product Details
The Bilstein B6 4600 line is engineered as an OE-style upgrade for stock-height trucks and SUVs, and this front application for the Ford F-150 follows that approach. The monotube construction helps maintain stable damping performance, while the digressive piston reacts to road inputs for better control over small bumps and larger suspension movements. If you are replacing worn front shocks on a 2014 Ford F-150, 24-337106 provides a direct-fit solution focused on ride quality and handling precision.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Part Can Address
- Excessive front-end bounce over uneven pavement
- Reduced steering stability during braking or cornering
- Harsh or inconsistent ride quality from worn OE shocks
- Front suspension movement that feels loose or undercontrolled
- Fade in damping performance during repeated road impacts
Installation Notes and Tips
Verify front suspension fitment before installation on the 2014 Ford F-150. This shock absorber is designed for stock-height applications and uses a stem upper mount with a crossbar lower mount. Compare collapsed length, extended length, and mounting style to the original part before beginning service. Professional installation is recommended for proper suspension alignment and safe handling.
Quality Assurance
Bilstein designs the B6 4600 series as a tuned application-specific shock absorber for light truck use, with monotube construction selected for consistent damping performance. Part number 24-337106 is built to match the front suspension requirements of the 2014 Ford F-150.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Ford | F-150 | XLT | RWD | Front | B6 4600 |
