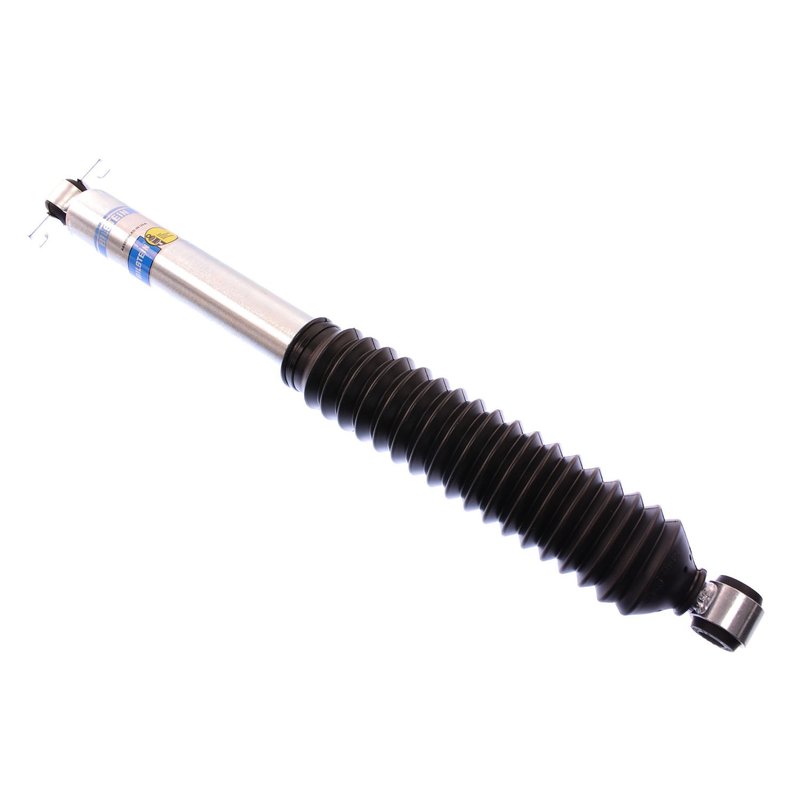

Bilstein 33-066868 Suspension Shock Absorber - Rear

Bilstein B8 5100 Rear Shock for Lifted Jeep

The Bilstein B8 5100 rear shock absorber, part number 33-066868, is a direct-fit suspension upgrade for lifted Jeep Cherokee and Jeep Wagoneer applications. It is built for 3.5-4 inch rear lift setups and uses a monotube design with a velocity-sensitive digressive piston for controlled response on changing road surfaces.

Key Features

• Direct-fit rear shock absorber for lifted Jeep Cherokee and Wagoneer applications
• Bilstein B8 5100 series tuned for specific vehicle fitment
• Monotube internal design for consistent, fade-resistant damping
• Velocity-sensitive digressive piston for responsive suspension control
• Non-adjustable damping with smooth-body construction
• Zinc-plated finish for added corrosion resistance
• Black bellows boot included
• Upper mount type: bar pin; lower mount type: eye 16mm

Product Details

Bilstein B8 5100 shock absorbers are engineered for lifted trucks and SUVs, and this rear application is matched to the suspension geometry of 1984-2001 Jeep Cherokee and 1984-1990 Jeep Wagoneer models with 3.5-4 inch rear lift. The B8 5100 line focuses on controlled damping, stable handling, and improved ride quality without requiring adjustable settings. Part number 33-066868 is a practical choice for drivers replacing worn rear shocks on lifted Jeep Cherokee and Jeep Wagoneer builds.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Excessive rear bounce after bumps or dips
• Reduced control from worn factory-style shocks on lifted suspension
• Harsh or inconsistent ride quality on modified Jeep Cherokee and Wagoneer setups
• Rear-end instability during braking, cornering, or uneven-road driving
• Loss of damping performance from aging suspension components

Installation Notes

Compatible With 1984-2001 Jeep Cherokee, rear, and 1984-1990 Jeep Wagoneer, rear, when equipped with a 3.5-4 inch rear lift. Verify collapsed length, extended length, and mount style before installation: 14.88 inches collapsed, 23.84 inches extended, with a bar pin upper mount and 16mm eye lower mount. Confirm suspension lift height and mounting points on the vehicle before ordering.

Quality Assurance

Bilstein designs the B8 5100 series as a tuned shock absorber line for specific lifted applications, using a monotube construction and application-specific valving to support consistent performance. Part number 33-066868 is built to Bilstein’s suspension standards for Jeep Cherokee and Jeep Wagoneer rear fitment.
