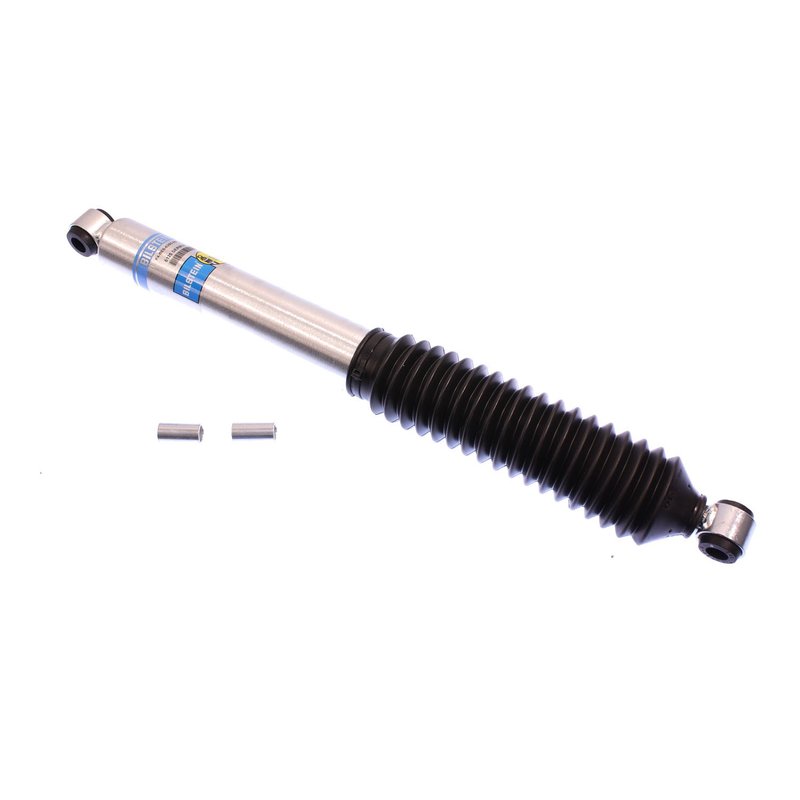

Bilstein 33-185606 Suspension Shock Absorber - Front or Rear

Bilstein B8 5125 Shock Absorber Overview

The Bilstein B8 5125 shock absorber (part number 33-185606) is engineered for reliable suspension performance on Jeep CJ5, CJ7, and Toyota Land Cruiser models. Designed with a monotube internal structure and a smooth body, this non-adjustable damping shock absorber offers consistent handling and ride quality.

• Non-adjustable damping for consistent performance
• Monotube internal design for efficient heat dissipation
• 46mm smooth body diameter (non-coilover)
• Black bellows boot included for shaft protection
• Eye-to-eye mounting with 5/8 inch eye upper and lower mounts
• Zinc plated finish for corrosion resistance
• Collapsed length: 14.13 inches (359 mm)
• Extended length: 22.58 inches (573.5 mm)
• Compression force at 0.52 m/s: 700 N
• Rebound force at 0.52 m/s: 2550 N

Detailed Product Description

The Bilstein B8 5125 shock absorber (33-185606) features a monotube design that improves heat dissipation and maintains consistent damping performance under demanding conditions. Its smooth body design, with a 46mm diameter, is optimized for non-coilover applications, making it suitable for classic off-road vehicles like the Jeep CJ5, CJ7, and Toyota Land Cruiser. The shock absorber includes a black bellows boot to protect the piston shaft from dirt and debris, extending the service life of the component. Both upper and lower mounts use 5/8 inch eyelets, providing secure eye-to-eye installation.

The zinc plated finish offers enhanced corrosion resistance, which is important for vehicles exposed to off-road environments. With a collapsed length of approximately 14.13 inches and an extended length of 22.58 inches, this shock absorber fits the specified vehicle models without modification.

About the Bilstein B8 5125 Product Line

The B8 5125 series from Bilstein is designed to deliver reliable suspension performance with a focus on durability and consistent damping characteristics. This product line emphasizes monotube shock absorbers with smooth bodies, tailored for vehicles requiring eye-to-eye mounting configurations. The B8 5125 shocks are engineered to meet the demands of off-road and rugged terrain driving, making them a suitable choice for Jeep CJ5, CJ7, and Toyota Land Cruiser owners seeking dependable suspension components.

Common Applications and Problem Solving

• Restores suspension control on Jeep CJ5, CJ7, and Toyota Land Cruiser models
• Reduces excessive body roll and improves handling stability
• Addresses worn or leaking original shock absorbers
• Improves ride comfort over rough or uneven terrain
• Protects suspension components from premature wear due to dirt and debris

Installation Notes and Tips

• Ensure compatibility with Jeep CJ5, CJ7, or Toyota Land Cruiser before installation
• Check mounting eyelet dimensions (5/8 inch) for proper fit
• Inspect suspension components for wear or damage prior to installation
• Use appropriate tools to avoid damage to the shock absorber or mounts
• Follow vehicle manufacturer torque specifications for mounting hardware

Quality Assurance and Warranty

Bilstein shock absorbers, including the B8 5125 series, are manufactured to meet strict quality standards with durable materials and precise engineering. The zinc plated finish enhances corrosion resistance, contributing to long service life. Warranty details are provided by Bilstein and may vary; consult the manufacturer or authorized distributor for specific warranty information related to part number 33-185606.
