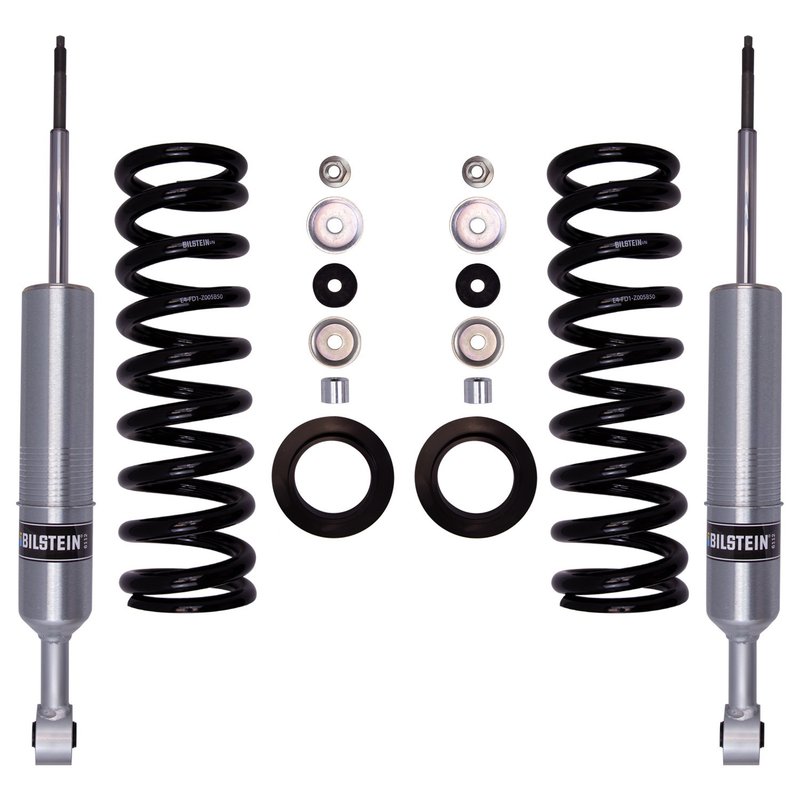

Bilstein 47-309975 Suspension Kit - Front

Bilstein B8 6112 Front Suspension Kit

The Bilstein B8 6112 leveling kit is built for light trucks and SUVs that need added front ride height, more tire clearance, and improved wheel travel. This setup uses a large-diameter monotube shock body with a digressive piston for controlled damping on and off the pavement.

For Tacoma, 4Runner, FJ Cruiser, and GX470 applications, part number 47-309975 provides a direct-fit front suspension upgrade with adjustable spring seat positions for a range of lift settings.

Key Features

• Part number 47-309975 from Bilstein’s B8 6112 line
• Snap-ring grooved coilover body for multiple front spring seat positions
• Front lift range of 0 to 2.75 inches depending on application
• 60mm monotube shock absorbers with a 2.65-inch outer body diameter
• Custom-matched cold wound coil springs and billet aluminum spring seats
• 60mm digressive piston for damping control on-road and off-road
• Zinc-plated dampers with black springs
• Front-only suspension kit for light truck use

About the B8 6112 Series

Bilstein B8 6112 suspension kits are part of the B8 6112 product line, which focuses on leveling and front-end ride-height correction for trucks and SUVs. The series combines a monotube shock design with matched coil springs and adjustable spring perch positions to help tailor stance and suspension travel to the vehicle application. Part number 47-309975 follows that formula for Toyota Tacoma, Toyota 4Runner, Toyota FJ Cruiser, and Lexus GX470 front suspension setups.

Vehicle Fitment

• Fits 2023 Toyota Tacoma, front — Provides 0-2" front lift; B8 6112
• Fits 2022 Toyota Tacoma, front — Provides 0.6-2.2" front lift; B8 6112
• Fits 2021 Toyota Tacoma, front — Provides 0.4-2" front lift; B8 6112
• Fits 2016-2020 Toyota Tacoma, front — Provides 0.6-2.2" front lift; B8 6112
• Fits 2005-2015 Toyota Tacoma, front — Provides 1-2.5" front lift; B8 6112
• Fits 2003-2009 Lexus GX470, front — Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100; B8 6112
• Fits 2003-2009 Toyota 4Runner, front — Without X-REAS Suspension; B8 6112
• Fits 2007-2009 Toyota FJ Cruiser, front — Provides 1.9-3.4" front lift; B8 6112

What This Suspension Kit Helps Address

• Front-end rake on Tacoma, 4Runner, FJ Cruiser, and GX470 applications
• Limited clearance for larger tires
• Reduced suspension travel from worn or undersized front components
• Inconsistent damping control on mixed street and trail use
• Need for a direct-fit front leveling solution with adjustable ride height

Installation Notes

Verify exact vehicle year, trim, and suspension configuration before ordering. The 2003-2009 Toyota 4Runner fitment is for vehicles without X-REAS suspension, and the 2003-2009 Lexus GX470 application requires Toyota Upper Shock Mount Assy 48609-60100. This front suspension kit uses a snap-ring grooved body with a spring seat included, and the final lift height depends on the vehicle application and perch position selected.

This part cross-references Monroe Shocks & Struts 58630 for the same application.

Quality Assurance

Bilstein B8 6112 components use a monotube shock design with a 60mm piston and zinc-plated damper finish for consistent construction across the series. Part number 47-309975 is engineered as a direct-fit suspension kit for the listed Toyota and Lexus applications.
