Bilstein 47-310872 Suspension Kit - Front

Bilstein B8 6112 Front Suspension Kit

The Bilstein B8 6112 leveling kit is built for drivers who want added front ride height, room for larger tires, and more suspension travel. This front suspension kit for the 1996-2002 Toyota 4Runner combines matched shock absorbers, coil springs, and billet aluminum spring seats for a direct-fit upgrade.

• Front suspension kit for light truck and SUV applications
• 60mm monotube shock absorbers with digressive piston design
• Snap-ring grooved body for multiple spring seat positions
• Provides 0-2.75 inches of front lift depending on application

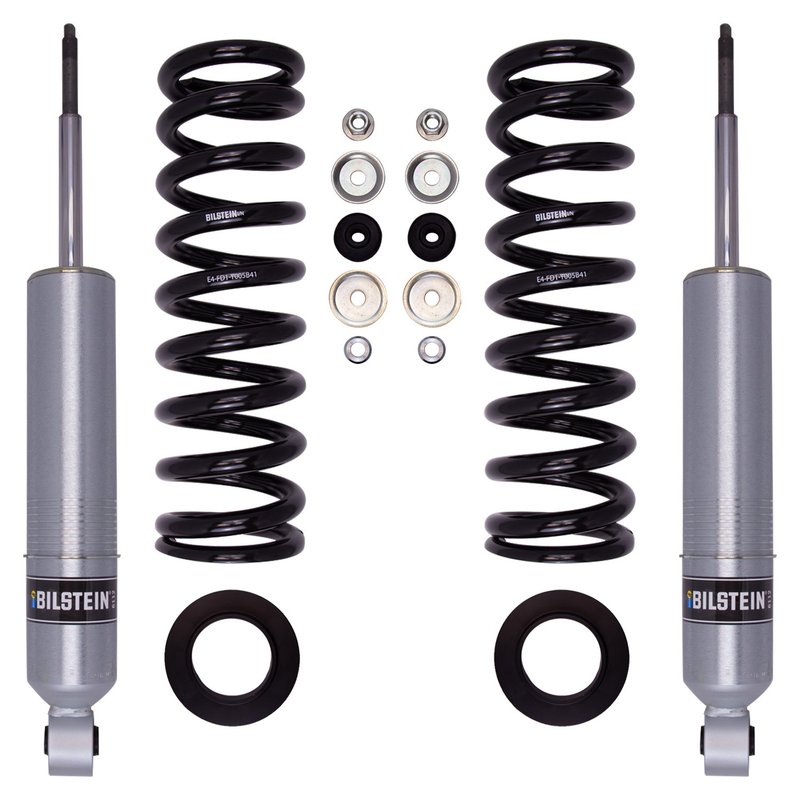

• Includes (2) shock absorbers, (2) cold wound coil springs, and (2) billet aluminum spring seats
• Zinc plated dampers with black springs
• No reservoir and no boot included

B8 6112 Product Line Details

Bilstein B8 6112 is a leveling kit line focused on front-end lift and controlled damping for trucks and SUVs. The 60mm body diameter and monotube internal design support consistent damping response, while the grooved shock body allows spring seat adjustment to match the lift range needed for the application. Part number 47-310872 is part of this series and is also referenced as Bilstein 47-310872.

Fitment for Toyota 4Runner

• Fits 1996-2002 Toyota 4Runner, front. Provides 1-2.6" front lift; B8 6112.

What This Suspension Kit Helps Address

• Front-end rake on a Toyota 4Runner
• Limited clearance for larger tires
• Reduced wheel travel from worn or undersized front suspension components
• Need for more controlled damping on-road and off-road
• Uneven front ride height after suspension refresh

Installation Notes and Tips

Install on the front of 1996-2002 Toyota 4Runner models only. Verify the desired spring seat position before final assembly, since lift height varies by application and groove setting. This kit is a direct-fit suspension upgrade, and part number 47-310872 should be matched to the vehicle’s front application before installation.

Quality Assurance

Bilstein B8 6112 kits use a monotube shock design with a 60mm body for consistent damping control. This part cross-references Monroe Shocks & Struts (e.g., 58610) for the same application.
