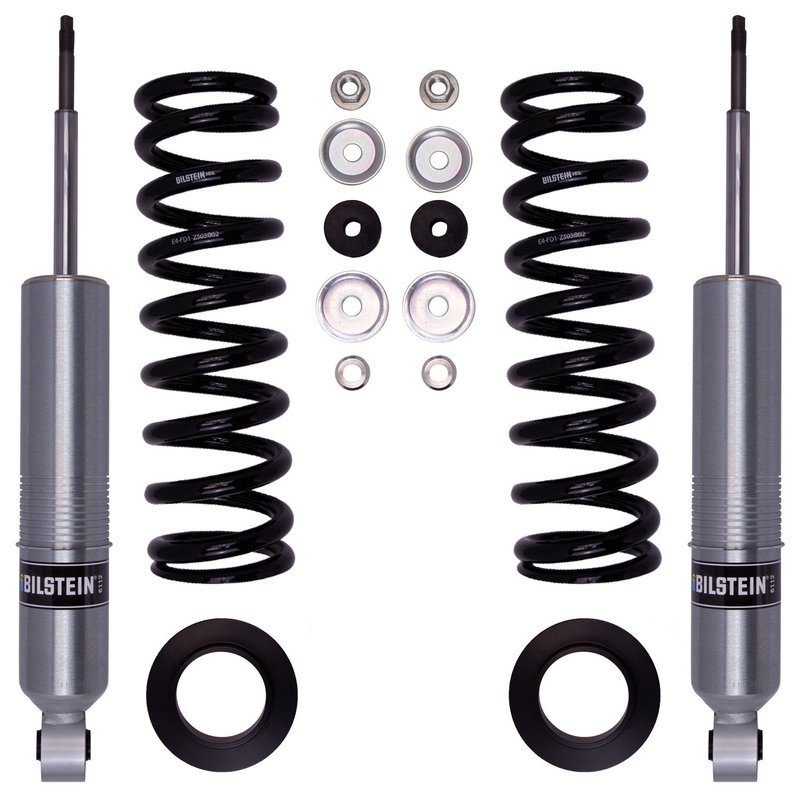

Bilstein 47-310896 Suspension Kit - Front

Bilstein B8 6112 Front Suspension Kit

The Bilstein B8 6112 leveling kit is built for Toyota Tacoma owners who want added front ride height, room for larger tires, and more wheel travel. This front suspension kit uses a 60mm monotube shock design with custom-matched cold wound coil springs and billet aluminum spring seats for direct-fit performance on and off the road.

• Snap-ring grooved coilover body for multiple spring seat positions
• Provides 0-2.75 inches of front lift depending on application
• 60mm digressive piston for increased damping control
• Monotube internal design for consistent shock response
• Zinc-plated dampers with black springs
• Direct-fit suspension kit for light truck and SUV applications

B8 6112 Product Line Details

The Bilstein B8 6112 series is a leveling-focused suspension line that combines shock absorbers and matched coil springs in one front-end package. The grooved body design allows the spring seat position to be adjusted for the listed lift range, making the Bilstein 47-310896 a practical choice for Tacoma suspension upgrades where front stance, tire clearance, and suspension travel matter.

Fitment

• Fits 1998-2004 Toyota Tacoma, front. Provides 0-1.8" front lift; B8 6112.
• Fits 1996-1997 Toyota Tacoma, front. Provides 0-2.4" front lift; B8 6112.

This part cross-references Monroe Shocks & Struts (e.g., 58610) for the same application.

Common Uses

• Correcting a low front stance on a Toyota Tacoma
• Adding front lift for larger tire clearance
• Improving wheel travel for mixed street and trail use
• Replacing worn front shocks and springs with a matched suspension assembly
• Restoring damping control on higher-mileage Tacoma front suspension systems

Installation Notes

Compatible With 1996-2004 Toyota Tacoma front suspension applications listed above. Verify year, trim, and front suspension configuration before installation. The snap-ring grooved body allows spring seat adjustment to match the required lift range for the vehicle. Professional installation and a post-install alignment are recommended after suspension height changes.

Quality Assurance

Bilstein B8 6112 components use a monotube shock design with a large 60mm piston for controlled damping response. The dampers feature a zinc-plated finish, and the springs are finished in black for corrosion resistance and a clean underhood appearance.
