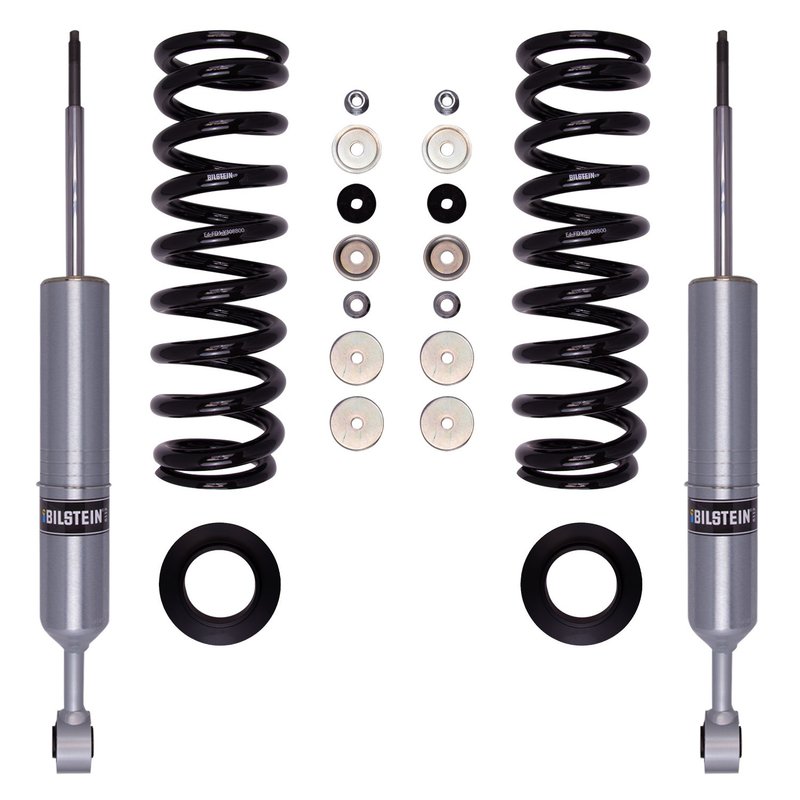

Bilstein 47-310971 Suspension Kit - Front

Bilstein B8 6112 Front Suspension Kit

The Bilstein B8 6112 leveling kit is built for Toyota Tundra and Toyota Sequoia front suspension applications that need added ride height and more usable wheel travel. Part number 47-310971 combines a monotube shock and coil spring setup with adjustable spring seat positions for 0 to 2.75 inches of front lift, depending on application.

Key Features

• Snap-ring grooved coilover body for multiple spring seat positions
• Front lift range of 0 to 2.75 inches, application dependent
• 60mm digressive piston for damping control on-road and off-road
• 2.65-inch outside diameter body for increased suspension capacity
• Monotube internal design with 18mm shaft diameter
• Billet aluminum spring seats and custom matched cold wound coil springs
• Zinc plated dampers with black springs
• Front application for light truck and SUV use

Product Details

The Bilstein B8 6112 line is a direct-fit suspension solution for light trucks and SUVs that need front-end leveling, improved tire clearance, and additional suspension travel. This kit uses a 60mm monotube shock absorber with a digressive piston profile to help maintain damping control across changing road surfaces. The snap-ring grooved body allows spring seat adjustment to suit the listed Toyota Tundra and Toyota Sequoia applications. Part number 47-310971 is a fitment-specific front suspension kit for drivers looking to correct stance and improve front suspension performance without changing the vehicle’s core suspension layout.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Front-end rake on Toyota Tundra and Toyota Sequoia models
• Limited clearance for larger tires
• Reduced front suspension travel after leveling changes
• Inconsistent damping control on mixed pavement and trail use
• Need for a direct-fit front suspension upgrade

Installation Notes

• Compatible With 2018-2022 Toyota Sequoia, front; provides 2.6-3.3 inches of front lift, B8 6112
• Compatible With 2008-2017 Toyota Sequoia, front; without self-leveling or electronic suspension, B8 6112
• Compatible With 2021 Toyota Tundra, front; provides 0.75-2.5 inches of front lift, B8 6112
• Compatible With 2019-2020 Toyota Tundra, front; provides 0.3 inches of front lift, B8 6112
• Compatible With 2018 Toyota Tundra, front; provides 1.5-3.3 inches of front lift, B8 6112
• Compatible With 2015-2017 Toyota Tundra, front; provides 0.3 inches of front lift, B8 6112
• Compatible With 2007-2014 Toyota Tundra, front; provides 1.5-3.3 inches of front lift, B8 6112

Quality Assurance

Bilstein B8 6112 suspension components use a monotube design, a 60mm piston, and application-specific spring rates to support consistent damping performance. The B8 6112 product line is engineered for direct-fit use on light truck and SUV front suspension setups, including Toyota Tundra and Toyota Sequoia applications listed above.
