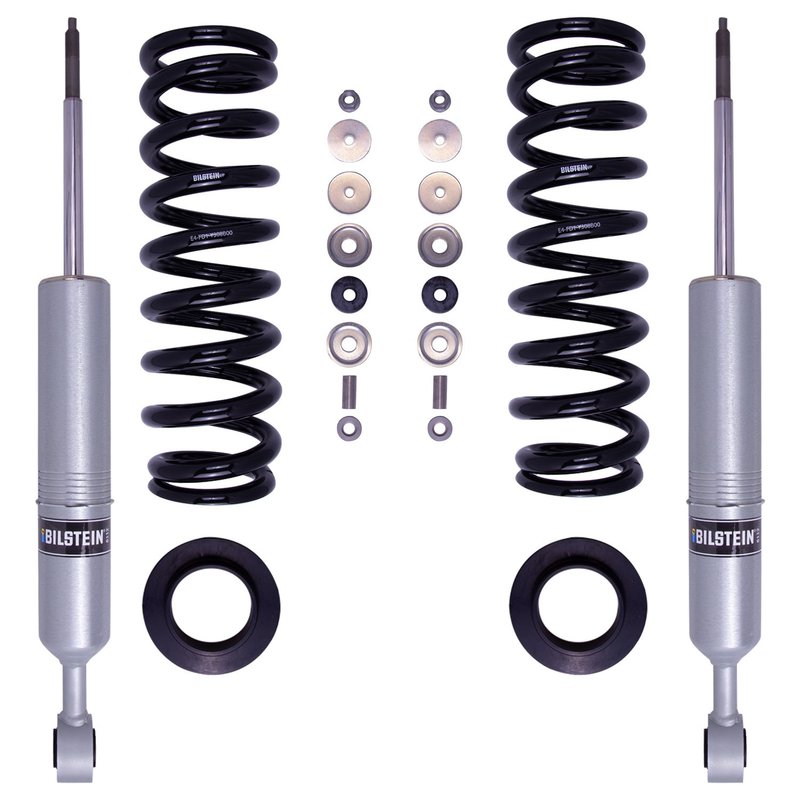

Bilstein 47-311145 Suspension Kit - Front

Bilstein B8 6112 Leveling Kit for Land Cruiser

The Bilstein B8 6112 leveling kit is built for Toyota Land Cruiser owners who want added front ride height, room for larger tires, and more suspension travel. This direct-fit suspension kit combines monotube dampers with matched coil springs and billet aluminum spring seats for a controlled, application-specific setup.

Key Features

• Snap-ring grooved body allows multiple spring seat positions
• Provides 0-2.75 inches of front lift depending on application
• 60mm monotube shock absorbers with digressive piston design
• Custom matched cold wound coil springs for application-specific tuning
• Billet aluminum spring seats for precise spring placement
• Zinc plated dampers and black springs for durable finish
• Direct fit suspension kit for light truck and SUV front suspension use

Product Details

Bilstein B8 6112, part number 47-311145, is part of Bilstein’s B8 6112 product line for leveling and front suspension lift applications. The snap-ring grooved coilover body lets the spring seat be positioned for the desired front lift range, while the 60mm monotube construction and digressive piston help maintain damping control on pavement and off-road terrain. For Toyota Land Cruiser fitments, this setup supports a more level stance and additional clearance without changing the basic direct-fit suspension layout. Part number 47-311145 is also referenced in suspension searches for Toyota Land Cruiser front leveling kit applications.

Common Uses

• Raises the front of a Toyota Land Cruiser for a more level stance
• Creates clearance for larger tires
• Improves wheel travel for rough-road and trail use
• Addresses factory front-end rake
• Supports suspension refreshes on lifted Land Cruiser builds

Installation Notes and Fitment

Fits 2013-2021 Toyota Land Cruiser, front. Fits 2008-2011 Toyota Land Cruiser, front. Confirm application details before installation and set the spring seat position according to the desired lift height and vehicle setup. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Part number 47-311145 is listed for Toyota Land Cruiser front suspension use and should be matched to the vehicle’s year range and front position before assembly.

Quality Assurance

Bilstein B8 6112 uses a monotube shock design with a large 60mm piston and application-matched spring components for consistent damping control. The zinc-plated damper finish and billet aluminum spring seats support long-term service in demanding street and off-road conditions.
