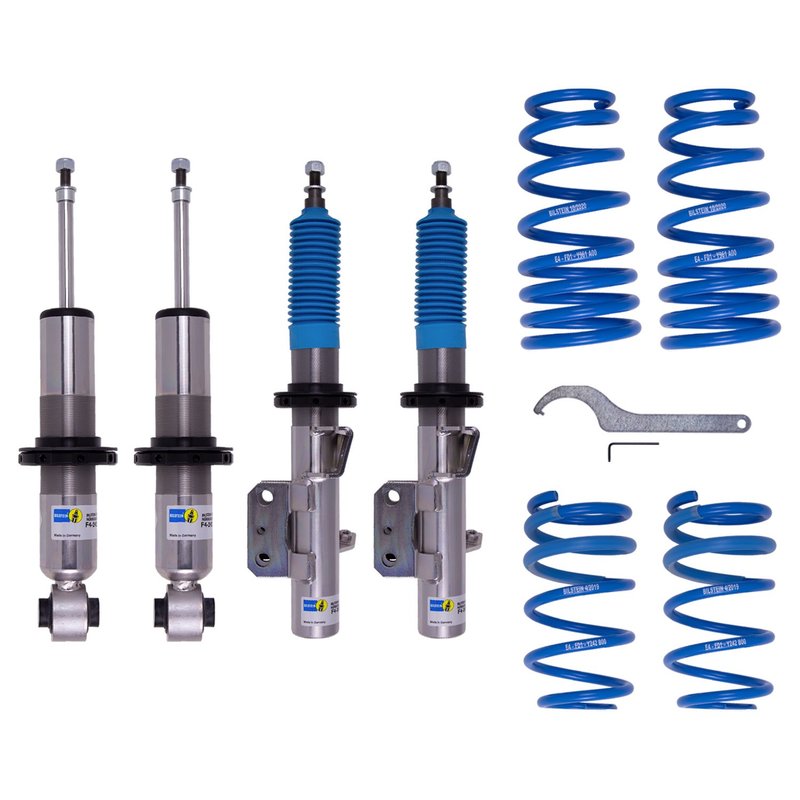

Bilstein 47-330733 Suspension Kit - Front and Rear
Bilstein B14 Suspension Kit for GR86 and BRZ
The Bilstein B14 (PSS) suspension kit delivers ride height adjustability in a direct-fit package for drivers who want a lower stance without giving up OE-style fitment. This setup uses monotube dampers with matched progressive springs, tuned for the specific application and built for front and rear installation on select Toyota GR86, Subaru BRZ, Toyota 86, and Scion FR-S models.
Key Features
- Ride height adjustable threaded-body design
- Monotube performance dampers for consistent damping response
- Matched progressive-rate springs tuned for the application
- Zinc-coated dampers for added corrosion resistance
- Made in Germany and tested on the Nürburgring
- Direct-fit suspension kit for front and rear installation
- Part number 47-330733 for application-specific ordering
Product Details
The Bilstein B14 (PSS) line is built for tuning-focused street use where precise stance and suspension control matter. This kit combines zinc-finished dampers with blue springs and a threaded body so ride height can be set within the available range while maintaining an OE-quality, direct-fit layout. Front spring rate is 257 lbs/in with a progressive design, and rear spring rate is 378 lbs/in with a progressive design. Compatible With 2022-2026 Toyota GR86, front and rear; 2022-2025 Subaru BRZ, front and rear; 2013-2020 Subaru BRZ, front and rear; 2017-2020 Toyota 86, front and rear; and 2013-2016 Scion FR-S, front and rear. This part number, 47-330733, is also referenced as 47330733.
Common Issues This Kit Can Address
- Factory ride height that sits higher than desired
- Uneven suspension response during spirited driving
- Need for a lower, adjustable stance on a GR86 or BRZ
- Worn or inconsistent damping performance in aging suspension systems
- Desire for matched spring and damper tuning in one suspension kit
Installation Notes and Tips
Fits 2022-2026 Toyota GR86, front and rear; 2022-2025 Subaru BRZ, front and rear; 2013-2020 Subaru BRZ, front and rear; 2017-2020 Toyota 86, front and rear; and 2013-2016 Scion FR-S, front and rear. Verify axle load and rear lowered height requirements before setting final ride height. After installation, perform a professional alignment and recheck suspension settings after the initial break-in period. Part number 47-330733 should be matched to the exact vehicle application before ordering.
Quality Assurance
Bilstein manufactures the B14 (PSS) suspension kit in Germany and validates the design with testing on the Nürburgring. The monotube construction, zinc-coated damper bodies, and application-specific spring tuning reflect Bilstein’s focus on controlled ride quality and repeatable performance.
| Brand | Bilstein |
|---|---|
| Part Number | 47-330733 |
| Position | B14 (PSS), Front and Rear |
| Finish | Dampers: zinc/springs: blue |
| Front Main Spring Rate (lbs/in) | 257 |
| Front Main Spring Type | Progressive |
| Internal Design | Monotube |
| PartType | Suspension kit |
| Rear Main Spring Rate (lbs/in) | 378 |
| Rear Main Spring Type | Progressive |
| Segment | Tuning |
| Series | B14 (pss) |
| Title | Bilstein shock absorbers |
This part fits 25 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2026 | Toyota | GR86 | Yuzu Edition | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2025 | Subaru | BRZ | TS | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2025 | Toyota | GR86 | Premium | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2024 | Subaru | BRZ | TS | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2024 | Toyota | GR86 | Premium | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2023 | Subaru | BRZ | Premium | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2023 | Toyota | GR86 | Premium | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2022 | Subaru | BRZ | Premium | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2022 | Toyota | GR86 | Premium | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2020 | Subaru | BRZ | TS | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2020 | Toyota | 86 | Hakone Edition | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2019 | Subaru | BRZ | Series.Gray | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2019 | Toyota | 86 | TRD Special Edition | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2018 | Subaru | BRZ | TS | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2018 | Toyota | 86 | GT | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2017 | Subaru | BRZ | Premium | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2017 | Toyota | 86 | Special Edition | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2016 | Scion | FR-S | Base | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2016 | Subaru | BRZ | Series.HyperBlue | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2015 | Scion | FR-S | Base | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2015 | Subaru | BRZ | Series.Blue | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2014 | Scion | FR-S | Base | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2014 | Subaru | BRZ | Premium | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2013 | Scion | FR-S | Base | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
| 2013 | Subaru | BRZ | Premium | Front and Rear | Rear Lowered Height: 10-30mm, up to 943kg Axle Load; B14 (PSS) |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
